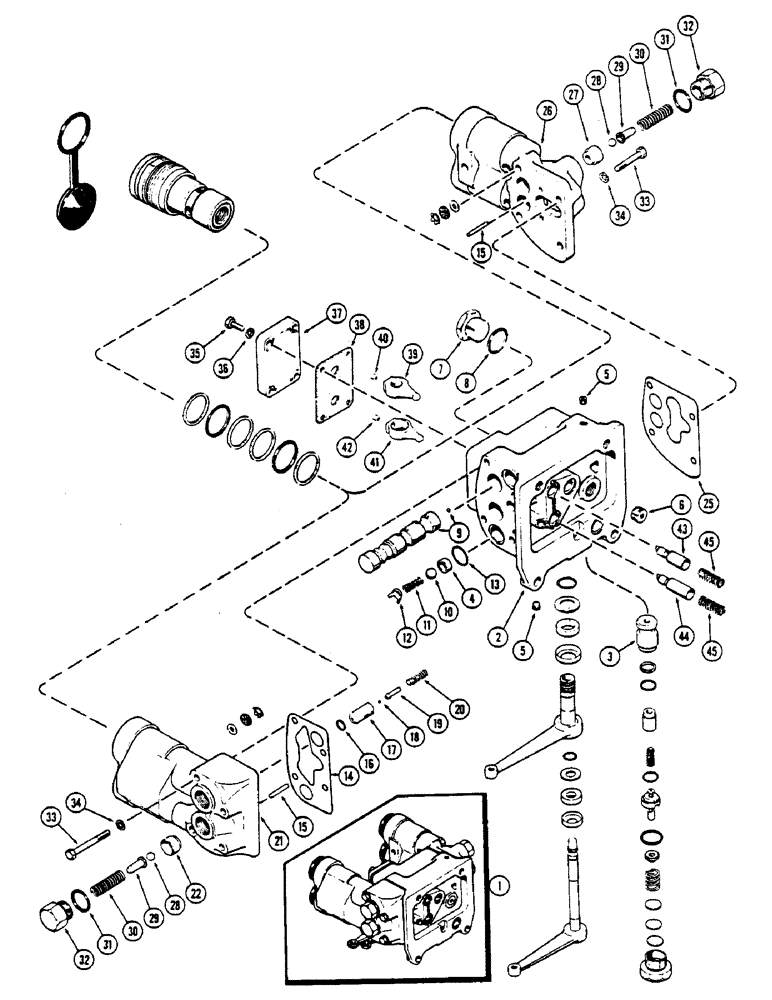

Запчасти Case IH 2670 (354) - A77072 REMOTE HYDRAULIC VALVE, WITH RELIEF VALVE, USED BEFORE TRACTOR SERIAL NUMBER 8763920 (08) - HYDRAULICS

1

A77072

VALVE

ASSY. - single (Order 149137), Includes: Ref. 2 - 45 and Ref. 50 - 84 on Figure 356

1шт.

2

A76884

BODY

ASSY. - remote valve (Order A149137), Includes: Ref. 3 - 7

1шт.

3

A57536

SLEEVE

- pilot relief

1шт.

4

A139799

SEAT

- ball check (Replaces A57537)

4шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

- pipe (1/8" hex socket)

3шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

- pipe (3/8" hex socket)

1шт.

7

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy, 3/4" tube OD, Includes: Ref. 8 Hex Hd, 1 1/16"-12 ORB

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

9

A66469

SPOOL

ASSY. - remote valve

2шт.

10

211-15

BALL,5/8" Dia

- . (15.88 MM) 5/8" Dia

4шт.

11

A27452

SPRING

- ball check, 1/2" O.D. x 1-1/8" free length (12.7 x 28.57 MM)

4шт.

12

A27364

GUIDE

- ball check spring

4шт.

13

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 x 1-1/8 x 3/32" (23.81 x 28.57 x 2.38 MM) (See kit Figure 356)

4шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

15

A57559

SPOOL

PIN - return ball check

4шт.

16

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- thermal valve seat, 3/8 x 9/16 x 3/32" (9.53 x 14.29 x 2.38 MM)

2шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

17

A137335

SEAT

- thermal valve (R.H. head) (Replaces A62273)

2шт.

18

211-3

BALL,1/8" Dia

- thermal valve, . (3.18 MM) 1/8" Dia

2шт.

19

A137594

GUIDE

- thermal valve ball (Replaces A62272)

2шт.

20

A57396

SPRING

- thermal valve, 11/32" O.D. x 1-1/8" free length (8.73 x 28.57 MM)

2шт.

21

A76888

HEAD

ASSY. - remote valve (R.H.) (Order A139949 Figure 348), Includes: Ref. 22

1шт.

22

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

25

A57560

GASKET

- valve head (L.H.)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

26

A76889

NO LONGER SERVICED

HEAD ASSY. - remote valve (L.H.) (Order A139951 Figure 348), Includes: Ref. 27

1шт.

27

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

28

211-28

BALL,13/32" Dia

- return, . (10.32 MM) 13/32" Dia

4шт.

29

A76895

GUIDE

- return ball check spring

4шт.

30

A76896

SPRING

- check, return ball, 1/2" O.D. x 2" free length (12.7 x 50.8 MM)

4шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- valve head fitting, 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

4шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

32

A76894

FITTING

- valve head

4шт.

33

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex, grade 5

8шт.

34

92-6

LOCK WASHER,3/8"

8шт.

35

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Cap to body Hex, 1/4"-20 x 1", G5

4шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

37

A66435

CAP

- body

1шт.

38

A76374

GASKET

- body cap

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

39

A57547

ARM

ASSY. - remote valve outer lever, Includes: Ref. 40

1шт.

40

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex socket cup pt.)

1шт.

41

A57546

ARM

ASSY. - remote valve inner lever, Includes: Ref. 42

1шт.

42

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex socket cup pt.)

1шт.

43

A57555

PLUNGER

- valve spool (Upper with hole)

1шт.

44

A57554

PLUNGER

- valve spool (Lower without hole)

1шт.

45

A76886

SPRING

- spool detent, 15/32" O.D. x 1-15/32" free length (11.91 x 37.31 MM)

2шт.
