A141379
VALVE

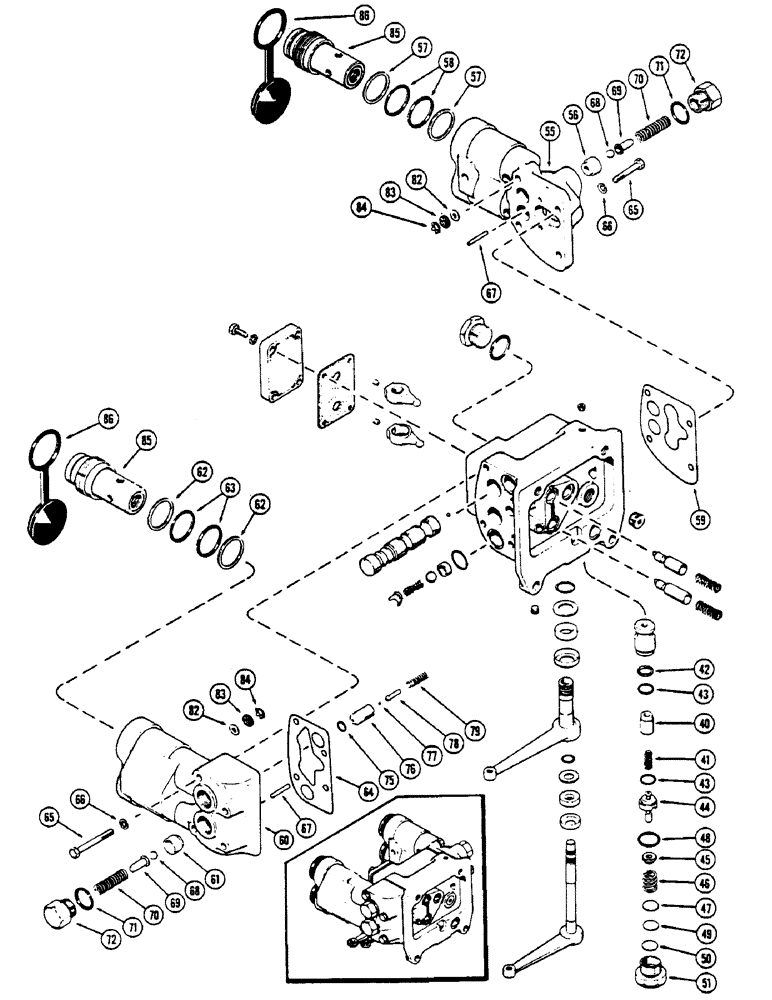

ASSY. - single (Continued from Ref. 350), Includes: Ref. 40 - 86 and Ref. 2 - 39 on Figure 350
1шт.
40
A57553
PISTON
- pilot relief valve
1шт.
41
A34382
SPRING
- pilot relief valve
1шт.
42
A34493
RING,16.33mm ID x 19.02mm OD x 1.25mm Thk
- pilot relief valve
1шт.
Included w/ VALVE SEAL KIT, A43086
1шт.
Included w/ PILOT RELIEF VALVE KIT, A42888
1шт.
43
A17526
O-RING,0.614" ID x 0.754" OD x 0.7"
- pilot relief valve sleeve
2шт.
Included w/ VALVE SEAL KIT, A43086
1шт.
Included w/ PILOT RELIEF VALVE KIT, A42888
1шт.
44
A57556
PISTON
ASSY. - pilot
1шт.
45
A57558
RETAINER
- pilot relief spring
1шт.
46
A34492
SPRING
- pilot relief
1шт.
47
A34694
SHIM,.0201" Thk
Pilot relief spring (0.51 mm) .0201" Thk
1шт.
Refer to tag attached to valve for shim data.
1шт.
48
A34817
SHIM,.0149" Thk
Pilot relief spring (0.37 mm) (Blue) .0149" Thk
1шт.
Refer to tag attached to valve for shim data.
1шт.
49
A34390
SHIM,.0329" Thk
Pilot relief spring (0.83 mm) .0329" Thk
1шт.
Refer to tag attached to valve for shim data.
1шт.
49
A34391
SHIM,.0149" Thk
Pilot relief spring (0.37 mm) .0149" Thk
1шт.
Refer to tag attached to valve for shim data.
1шт.
49
A34849
SHIM,.0105" Thk
Pilot relief spring (0.25 mm) (Order A34817) .0105" Thk
1шт.
Refer to tag attached to valve for shim data.
1шт.
50
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- pilot relief valve plug, 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)
1шт.
Included w/ VALVE SEAL KIT, A43086
1шт.
Included w/ PILOT RELIEF VALVE KIT, A42888
1шт.
51
A34392
PLUG
- pilot relief valve
1шт.
55
A139951
HEAD
ASSY. - remote valve (L.H.), Includes: Ref. 56 - 58
1шт.
56
NSS
NOT SOLD SEPARAT
SEAT - valve head
2шт.
57
A76898
RING
- back-up, 1-1/2 x 1-3/4 x 3/64" (38.1 x 44.45 x 1.19 MM)
4шт.
58
T13224
O-RING,1.484" ID x 1.762" OD x 0.139"
-1-31/64 x 1-49/64 x 9/64" (37.70 x 44.84 x 3.57 MM)
4шт.
59
A143303
GASKET
- valve head (L.H.)
1шт.
Included w/ VALVE SEAL KIT, A43086
1шт.
60
A139949
HEAD
ASSY. - remote valve (R.H.), Includes: Ref. 61 - 63
1шт.
61
NSS
NOT SOLD SEPARAT
SEAT - valve head
2шт.
62
A76898
RING
- back-up, 1-1/2 x 1-3/4 x 3/64" (38.1 x 44.45 x 1.19 MM)
4шт.
63
T13224
O-RING,1.484" ID x 1.762" OD x 0.139"
- 1-31/64 x 1-49/64 x 9/64" (37.70 x 44.84 x 3.57 MM)
4шт.
64
A143304
GASKET
- valve head (R.H.)
1шт.
Included w/ VALVE SEAL KIT, A43086
1шт.
65
13-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
- 3/8 x 2-3/4" N.C hex, grade 5
8шт.
66
92-6
LOCK WASHER,3/8"
8шт.
67
A57559
SPOOL
PIN - return ball check
4шт.
68
211-28
BALL,13/32" Dia
- return, . (10.32 MM) 13/32" Dia
4шт.
69
A76895
GUIDE
- return ball check spring
4шт.
70
A76896
SPRING
- check, return ball
4шт.
71
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- valve head fitting, 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)
4шт.
Included w/ VALVE SEAL KIT, A43086
1шт.
72
A76894
FITTING
- valve head
4шт.
75
A27891
O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro
- thermal valve seat
2шт.
Included w/ VALVE SEAL KIT, A43086
1шт.
76
A137335
SEAT
- thermal valve (R.H. head)
2шт.
77
211-3
BALL,1/8" Dia
- thermal valve, . (3.18 MM) 1/8" Dia
2шт.
78
A137594
GUIDE
- thermal valve ball
2шт.
79
A57396
SPRING
- thermal valve
2шт.
82
195-516
WASHER,#12
- (1/4 x 9/16 x 1/16")
4шт.
83
A76892
SEAL
- valve head quick coupler
4шт.
84
A76893
SNAP RING,0.625", Int, #62
Ring, Snap, , valve head seal 0.625", Int, #62
4шт.
85
REF
INSTRUCTION
COUPLER ASSY. - hose break-away (See Figure 376)
4шт.
86
REF
INSTRUCTION
PLUG - dust (See Figure 376)
4шт.
A43086
SEAL
KIT - valve seal, Includes: Ref. 42, 43, 50, 59, 64, 71, 75 and Ref. 8, 13, 16, 17, 18, 19 21, 22, 23, 24, 38 on Figure 350
1шт.
A42888
KIT
- pilot relief valve, Includes: Ref. 42, 43 and 50
1шт.
