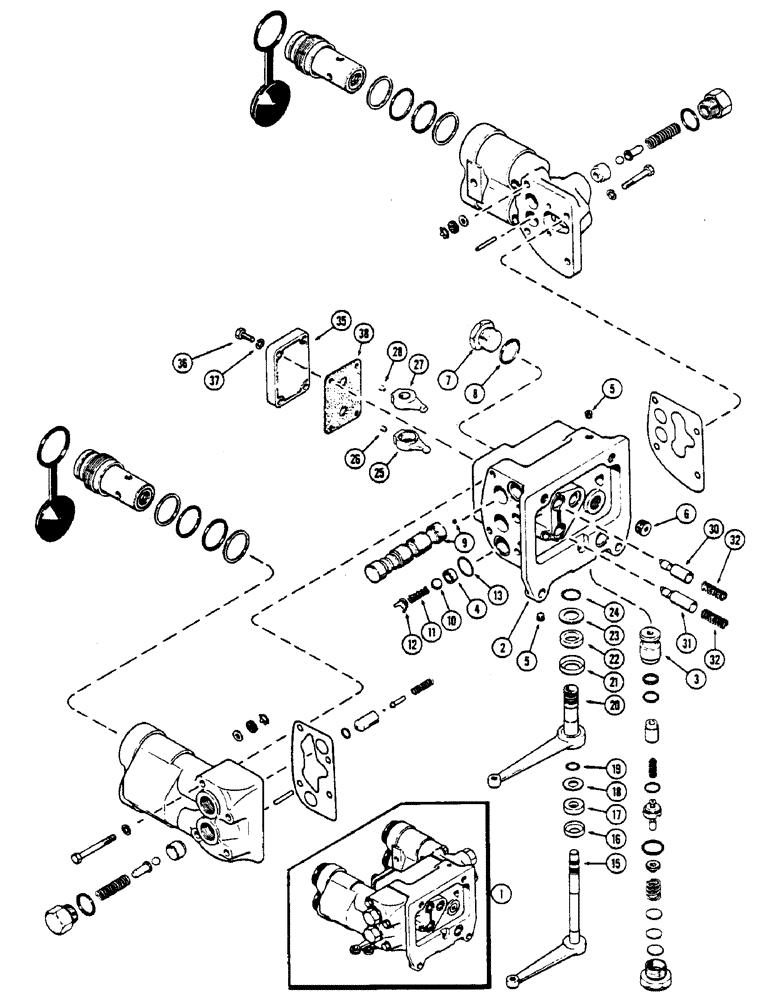

Запчасти Case IH 2670 (350) - A141379 REMOTE HYDRAULIC VALVE, WITH RELIEF VALVE, USED TRACTOR SN 8763920 TO 8786558 (08) - HYDRAULICS

1

A141379

VALVE

ASSY - (Replaces A77072, A138883, A139216 and A139956) (Order A149137), Incl. Ref. 2 - 8 and Ref. 39 - 84 on Figure 356

1шт.

2

A141381

HOUSING

BODY ASSY, remote valve (Replaces A76884), Incl. Ref. 3 - 8

1шт.

3

A57536

SLEEVE

Pilot relief

1шт.

4

A139799

SEAT

Ball check

4шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

Pipe

3шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

Pipe

1шт.

7

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

ASSY, Incl. Ref. 8

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 mm) (See kit Figure 352)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

9

A66469

SPOOL

ASSY - remote valve

2шт.

10

211-15

BALL,5/8" Dia

(15.88 mm)

4шт.

11

A27452

SPRING

Ball check

4шт.

12

A27364

GUIDE

Ball check spring

4шт.

13

A64434

O-RING,0.93" ID x 1.142" x 0.106"

15/16 x 1-1/8 x 3/32" (23.8 x 28.5 x 2.38 mm) (See kit Figure 352)

4шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

15

A57605

LEVER

Remove valve (Lower)

1шт.

16

A30875

RETAINER

Felt washer (See kit Figure 352)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

17

A30853

WASHER

Felt, lever shaft (See kit Figure 352)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

18

A27409

WASHER

Seal, lever shaft (See kit Figure 352)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

19

A64836

O-RING,0.487" ID x 0.693" OD

Lever shaft (See kit Figure 352)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

20

A57604

LEVER

Remote valve (Upper)

1шт.

21

A30880

RETAINER

Felt washer (See kit Figure 352)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

22

A30879

WASHER

Felt, shaft (See kit Figure 352)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

23

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

Seal, shaft (See kit Figure 352)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

24

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Lever shaft (See kit Figure 352)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

25

A57546

ARM

ASSY - remote valve upper lever, Incl. Ref. 26

1шт.

26

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

Headless cup pt.

1шт.

27

A57547

ARM

ASSY - remote valve lower lever

1шт.

28

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

Headless cup pt.

1шт.

30

A57555

PLUNGER

Remote valve spool (Upper with holes)

1шт.

31

A57554

PLUNGER

Remote valve spool (Lower)

1шт.

32

A76886

SPRING

Spool detent

2шт.

35

A66435

CAP

Body

1шт.

36

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Cap to body

4шт.

37

92-4

LOCK WASHER,1/4"

4шт.

38

A76374

GASKET

Body cap (See kit Figure 352)

4шт.

Included w/ VALVE SEAL KIT, A43086

1шт.
