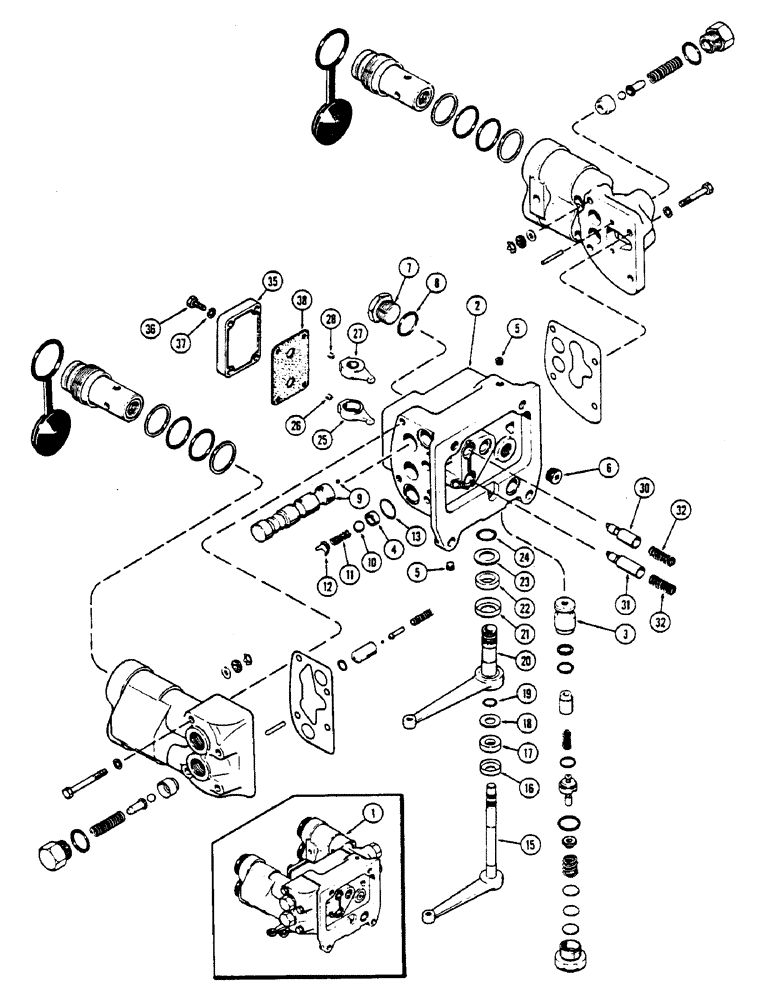

Запчасти Case IH 2670 (346) - A141843 REMOTE HYDRAULIC VALVE, WITH RELIEF VALVE, USED TRACTOR SERIAL NUMBER 8786558 TO 8826987 (08) - HYDRAULICS

1

A141843

VALVE

ASSY. - control (Order A149137), Includes: Ref. 2 - 38 and Ref. 40 - 86 on Figure 352

1шт.

2

A141381

HOUSING

BODY ASSY. - remote valve, Includes: Ref. 3 - 8

1шт.

3

A57536

SLEEVE

- pilot relief

1шт.

4

A139799

SEAT

- ball check

4шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, 1/8" hex sckt. hd.

3шт.

6

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, 3/8" hex sckt. hd.

1шт.

7

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Assy, 3/4" tube OD, Includes: Ref. 8 Hex Hd, 1 1/16"-12 ORB

1шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4" x 59.64 x 1/8" (19.05 x 23.41 x 3.17 MM) (See kit Figure 348)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

9

A66469

SPOOL

ASSY. - remote valve

2шт.

10

211-15

BALL,5/8" Dia

- . (15.88 MM) 5/8" Dia

4шт.

11

A27452

SPRING

- ball check, 1/2" O.D x 1-1/8" free length (12.7 x 28.58 MM)

4шт.

12

A27364

GUIDE

- ball check spring

4шт.

13

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 x 1-1/8 x 3/32" (23.81 x 28.57 x 2.38 MM) (See kit Figure 348)

4шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

15

A57605

LEVER

- remote valve (Lower)

1шт.

16

A30875

RETAINER

- felt washer, 17/32" hole, (See kit Figure 348)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

17

A30853

WASHER

- felt, 1/2 x 15/16 x 1/4" (See kit Figure 348)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

18

A27409

WASHER

- seal, 33/64 x 63/64 x 1/32" (See kit Figure 348)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

19

A64836

O-RING,0.487" ID x 0.693" OD

- 1/2 x 11/16 x 3/32" (12.7 x 17.46 x 2.38 MM) (See kit Figure 348)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

20

A57604

LEVER

- remote valve upper

1шт.

21

A30880

RETAINER

- felt washer, 49/64" hole (See kit Figure 348)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

22

A30879

WASHER

- felt, shaft (See kit Figure 352)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

23

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, 49/64 x 1-15/64 x 1/32" (See kit Figure 348)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

24

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- 3/4 x 15/16 x 3/32" (19.05 x 23.81 x 2.38 MM) (See kit Figure 348)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

25

A57546

ARM

ASSY. - remote valve upper lever, Includes: Ref. 26

1шт.

26

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4 x 1/4" N.C. hex sckt. headless cup pt. set

1шт.

27

A57547

ARM

ASSY. - remote valve lower lever, Includes: Ref. 28

1шт.

28

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4 x 1/4" N.C. hex sckt. hdless cup pt. set

1шт.

30

A57555

PLUNGER

- remote valve spool (Upper with hole)

1шт.

31

A57554

PLUNGER

- remote valve spool (Lower without hole)

1шт.

32

A76886

SPRING

- spool detent, 15/32" O.D. x 1-15/32" free length (11.90 x 37.30 MM)

2шт.

35

A66435

CAP

- body

1шт.

36

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

38

A76374

GASKET

- body cap (See kit Figure 348)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.
