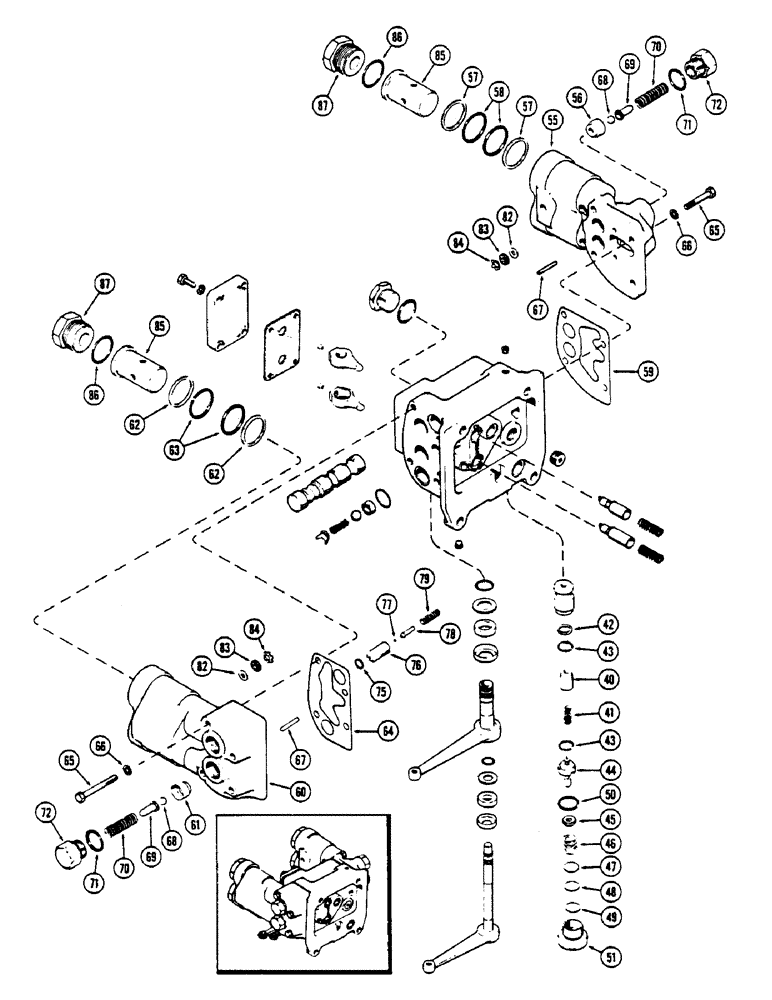

Запчасти Case IH 2670 (344) - A147432 REMOTE HYDRAULIC VALVE, WITH RELIEF VALVE, FIRST USED TRACTOR SERIAL NUMBER 8826987 (CONT) (08) - HYDRAULICS

A147432

VALVE ASSY. - control (Continued from Ref. 342), Includes: Ref. 40 - 87 and Ref. 2 - 38 on Figure 342

1шт.

40

A57553

PISTON

- pilot relief valve

1шт.

41

A34382

SPRING

- relief valve, 15/32" OD x 1" free length (11.90 x 25.4 MM)

1шт.

42

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- relief valve

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

Included w/ PILOT RELIEF VALVE KIT, A42888

1шт.

43

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- 3/4 x 5/8 x 1/16" (19.05 x 15.87 x 1.58 MM)

2шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

Included w/ PILOT RELIEF VALVE KIT, A42888

1шт.

44

A57556

PISTON

ASSEMBLY - pilot

1шт.

45

A57558

RETAINER

- pilot relief spring

1шт.

46

A34492

SPRING

- pilot relief, 49/64" OD x 23/32" free length (19.44 x 18.25 MM)

1шт.

47

A34694

SHIM,.0201" Thk

Pilot relief spring (0.51 mm) .0201" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

48

A34817

SHIM,.0149" Thk

Pilot relief spring (0.37 mm) (Blue) .0149" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

49

A34390

SHIM,.0329" Thk

Pilot relief spring (0.83 mm) (Replaces A34817) .0329" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

49

A34391

SHIM,.0149" Thk

Pilot relief spring (0.37 mm) (Order A34817) .0149" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

49

A34849

SHIM,.0105" Thk

Pilot relief spring (0.25 mm) (See note) .0105" Thk

1шт.

Refer to tag attached to valve for shim data.

1шт.

50

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

Included w/ PILOT RELIEF VALVE KIT, A42888

1шт.

51

A34392

PLUG

- pilot relief valve

1шт.

55

A139951

HEAD

ASSY - remote valve, LH, Includes: Ref. 56 - 58

1шт.

56

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

57

A76898

RING

- back-up, 1-1/2 x 1-3/4 x 3/64" (38.1 x 44.45 x 1.19 MM)

4шт.

58

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-31/64 x 1-49/64 x 9/64" (37.70 x 44.84 x 3.57 MM)

4шт.

59

A143303

GASKET

- valve head, LH

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

60

A139949

HEAD

ASSY. - remote valve, RH, Includes: Ref. 61 - 63

1шт.

61

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

62

A76898

RING

- back-up, 1-1/2 x 1-3/4 x 3/64" (38.1 x 44.45 x 1.1906 MM)

4шт.

63

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- 1-31/64 x 1-49/64 x 9/64" (37.70 x 44.84 x 3.57 MM)

4шт.

64

A143304

GASKET

- valve head, RH

1шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

65

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" NC hex, grade 5

8шт.

66

92-6

LOCK WASHER,3/8"

8шт.

67

A57559

SPOOL

PIN - return ball check

4шт.

68

211-28

BALL,13/32" Dia

- return, meter (10.32 MM) 13/32" Dia

4шт.

69

A76895

GUIDE

- return ball check spring

4шт.

70

A76896

SPRING

- check, return ball, 1/2" OD x 2" free length (12.7 x 50.8 MM)

4шт.

71

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

4шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

72

A76894

FITTING

- valve head

4шт.

75

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- thermal valve seat

2шт.

Included w/ VALVE SEAL KIT, A43086

1шт.

76

A137335

SEAT

- thermal valve, RH head

2шт.

77

211-3

BALL,1/8" Dia

- thermal valve, meter (3.18 MM) 1/8" Dia

2шт.

78

A137594

GUIDE

- thermal valve ball

2шт.

79

A57396

SPRING

- thermal valve, 11/32" OD x 1-1/8" free length (8.73 x 28.57 MM)

2шт.

82

195-516

WASHER,#12

- 1/4 x 9/16 x 1/16"

4шт.

83

A76892

SEAL

- valve head quick coupler

4шт.

84

A76893

SNAP RING,0.625", Int, #62

Ring, Snap, , valve head seal 0.625", Int, #62

4шт.

85

A147286

INSERT

- remote valve head

4шт.

86

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- 1-3/8 x 1-5/8 x 1/8" (34.92 x 41.27 x 3.17 MM)

4шт.

87

A147561

ADAPTER

ADAPTOR - remote valve head

4шт.

A43086

SEAL

KIT - valve seal, Includes: Ref. 42, 43, 50, 59, 64, 71, 75 and Ref. 8, 13, 16, 17, 18, 19, 21, 22, 23, 24, 38 on Figure 342

1шт.

A42888

KIT

- pilot relief valve, Includes: Ref. 42, 43 and 50

1шт.
