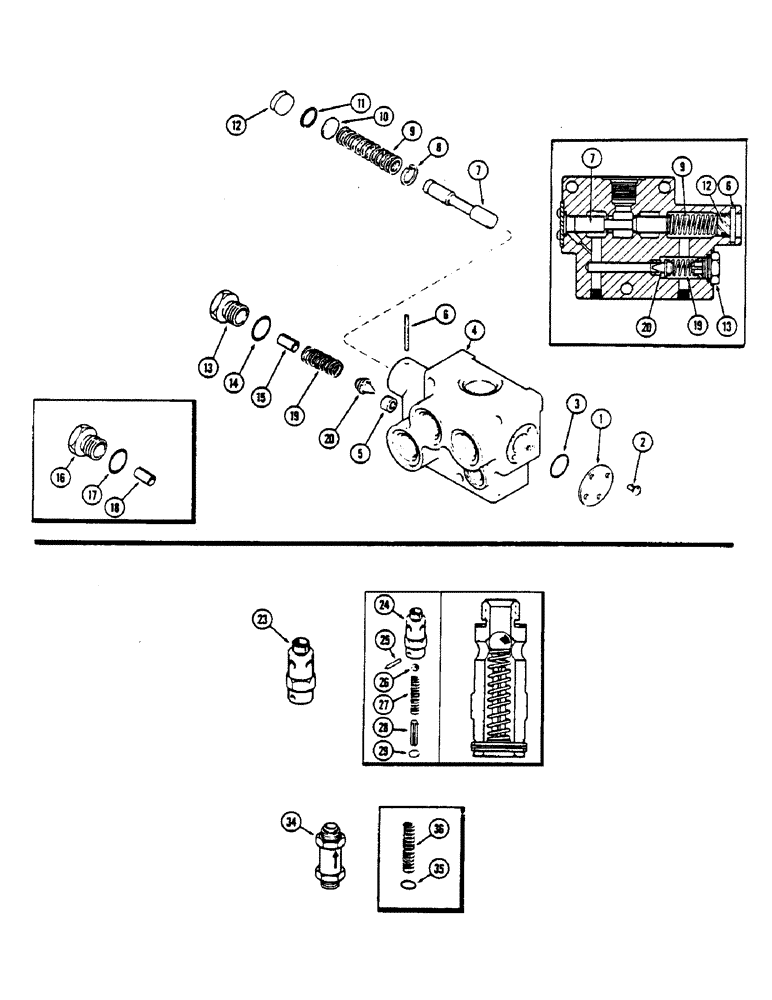

Запчасти Case IH 2670 (340) - PRESSURE REGULATOR VALVE ASSEMBLY (08) - HYDRAULICS

A76691

VALVE ASSY. - pressure regulator, Includes: Ref. 1 - 20

1шт.

1

A60277

CAP

- valve

1шт.

2

164-522

SCREW,Btn Hd, #10 - 24 x 1/2"

- valve cap

4шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- valve cap

1шт.

Included w/ SEAL KIT, A42884

1шт.

4

NSS

NOT SOLD SEPARAT

BODY ASSY. - valve (Order A76991)

1шт.

5

A60686

SEAT

- relief valve poppet

1шт.

6

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN - roll, 3/16 x 1-1/4"

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - regulating (Order A76991)

1шт.

8

A60273

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

9

A60274

SPRING

- regulating spool

1шт.

10

A60275

SHIM,.0164" Thk

Spool spring .0164" Thk

1шт.

11

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- spool plug

1шт.

Included w/ SEAL KIT, A42884

1шт.

12

A60276

PLUG

- spool

1шт.

13

A139173

PLUG

ASSY. - spring guide (Replaces A60287), Includes: Ref. 14 and 15

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32" (15.87 x 19.05 x 2.38 MM)

1шт.

Included w/ SEAL KIT, A42884

1шт.

15

138-245

LOCK PIN,1/2" x 7/8", Slotted

Pin, 1/2" x 7/8", Slotted

1шт.

16

A60287

PLUG

ASSY. - spring guide (Order A139173), Includes: Ref. 17 and 18

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32" (15.87 x 19.05 x 2.38 MM)

1шт.

18

138-199

LOCK PIN,1/2" x 3/4", Slotted

PIN, 1/2" x 3/4", Slotted

1шт.

19

A60286

SPRING

- relief valve

1шт.

20

A60687

VALVE POPPET

POPPET - relief valve

1шт.

A42884

KIT

SEAL KIT - valve, Includes: Ref. 3, 11 and 14

1шт.

23

A60890

VALVE

ASSY. - relief, cold lube oil, Includes: Ref. 24 - 29

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - relief valve (Order A60890). cold lube oil assembly

1шт.

25

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Cold lube oil relief valve assembly 1/8" x 3/4", Slotted

1шт.

26

211-9

BALL,5/16" Dia

- ., cold lube oil relief valve assembly 5/16" Dia

1шт.

27

A60889

SPRING

- cold lube oil relief valve assembly

1шт.

28

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, , Spring guide, cold lube oil relief valve assembly 3/16" x 1", Slotted

1шт.

29

195-6

WASHER,#6

- shim, 5/32 x 5/16 x 1/32" (3.96 x 7.93 x 0.79 MM), cold lube oil relief valve assembly

1шт.

34

A75483

VALVE

ASSY. - regulating, filter pressure, cold lube oil relief, Includes: Ref. 35 and 36

1шт.

35

A57041

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

- check valve body, filter pressure regulating assembly

1шт.

36

A44171

SPRING

- relief valve poppet, filter pressure regulating assembly

1шт.
