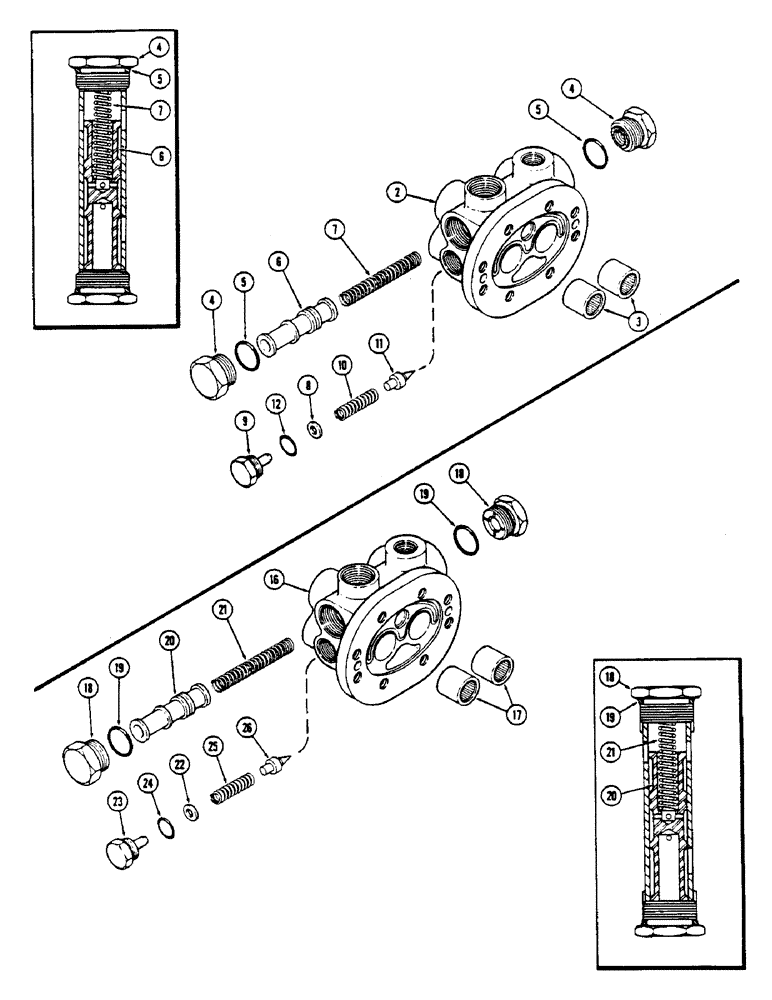

Запчасти Case IH 2670 (336) - HYDRAULIC PUMP REAR COVER, WITH SCREW TYPE FLOW DIVIDER PLUG FOR A141223 PUMP (08) - HYDRAULICS

A45384

COVER

ASSY. - flow divider - relief valve, Includes: Ref. 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

COVER ASSY. - with sleeve (Order A45384)

1шт.

3

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle

2шт.

4

A45389

PLUG

- flow divider (With knurled face)

1шт.

5

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- plug, 1-3/64 x 1-9/32 x 7/64" (26.59 x 32.54 x 2.77 MM)

1шт.

6

A44125

PISTON

- flow divider

1шт.

7

A45297

SPRING

- flow divider piston

1шт.

8

A44882

SHIM,.010" Thk

Relief valve (0.25 mm) .010" Thk

1шт.

8

A44883

SHIM,.031" Thk

Relief valve (0.78 mm) .031" Thk

1шт.

8

A44884

SHIM,.062" Thk

Relief valve (1.57 mm) .062" Thk

1шт.

9

A45250

PLUG

ASSY. - relief valve

1шт.

10

A45366

SPRING

- relief valve, 5/8" O.D. x 2-5/16" free length (15.87 x 58.74 MM)

1шт.

11

A44119

SPOOL

POPPET - relief valve by-pass

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32" (15.87 x 19.05 x 2.38 MM)

1шт.

A45252

COVER

ASSY. - flow divider - relief valve (Order A45384), for A137403 pump, Includes: Ref. 16- 26

1шт.

16

NSS

NOT SOLD SEPARAT

COVER ASSY. - with bearings and sleeve (Order A45384), for A137403 pump

1шт.

17

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, for A137403 pump

2шт.

18

A44123

PULLEY

PLUG - flow divider (With grooved face), for A137403 pump

2шт.

19

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 7/64" (26.59 x 32.54 x 2.77 MM), for A137403 pump

2шт.

20

A44125

PISTON

- flow divider, for A137403 pump

1шт.

21

A44124

SPRING

- piston, 1/2" O.D. x 3-13/16" free length (12.7 x 71.43 MM), for A137403 pump

1шт.

22

A44882

SHIM,.010" Thk

Relief valve (0.25 mm), for A137403 pump .010" Thk

1шт.

22

A44883

SHIM,.031" Thk

Relief valve (0.78 mm), for A137403 pump .031" Thk

1шт.

22

A44884

SHIM,.062" Thk

Relief valve (1.57 mm), for A137403 pump .062" Thk

1шт.

23

A45250

PLUG

ASSY. - relief valve, for A137403 pump

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32" (15.87 x 19.05 x 238 MM), for A137403 pump

1шт.

25

A45366

SPRING

- relief valve, 19/32" O.D. x 2-1/4" free length (15.08 x 57.15 MM) (Replaces A45251), for A137403 pump

1шт.

26

A44119

SPOOL

POPPET - relief valve by-pass, for A137403 pump

1шт.
