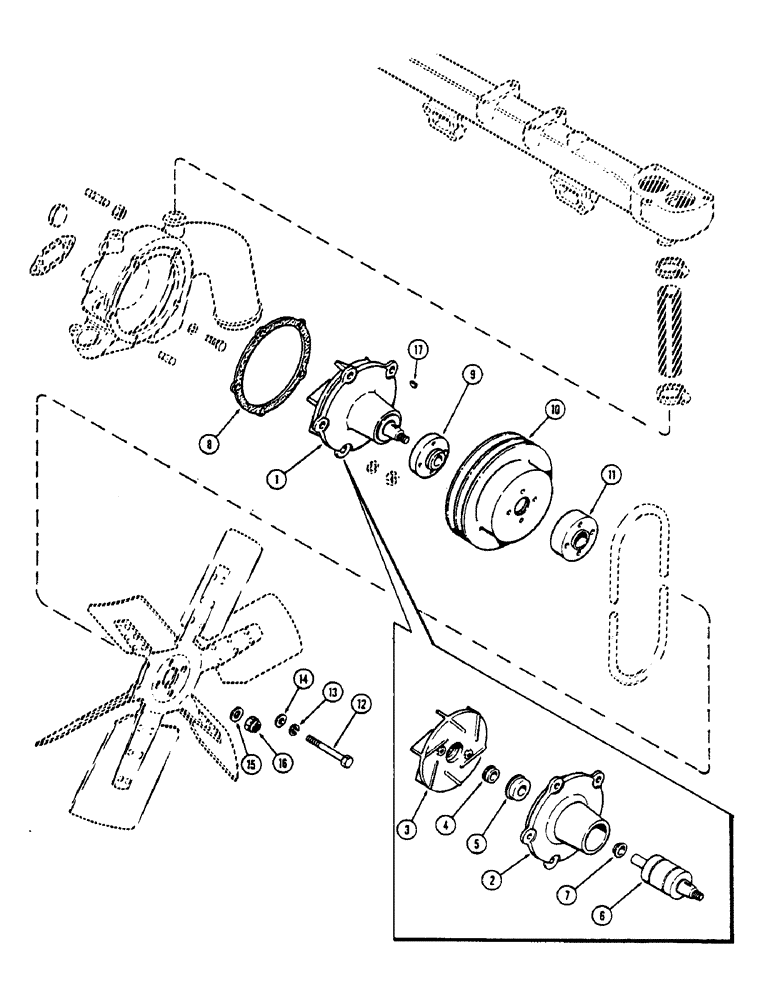

Запчасти Case IH 2670 (014) - WATER PUMP AND PULLEY KIT A151407, 504BDT INTERCOOLED DIESEL ENGINE, USED BEFORE ENG. S/N 10020829 (02) - ENGINE

A151407

KIT

- water pump and pulley, Includes: Ref. 1-17

1шт.

1

A67258

PUMP

ASSY. - water, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - water pump

1шт.

3

A76653

SEAL

IMPELLER - water pump, cast iron

1шт.

4

A34000

SEAL

SEAT - water pump shaft

1шт.

5

A142499

SEAL

- water pump shaft

1шт.

6

A58643

SHAFT

ASSY, Includes: Ref. 7

1шт.

7

A29440

SLINGER

- water

1шт.

8

A76656

GASKET

-, Serial Range: pump-body

1шт.

9

A146221

HUB

- fan and, Serial Range: pulley-pump

1шт.

10

A146982

PULLEY

- fan driven

1шт.

11

A61268

BUSHING

SPACER - fan, 1" wide

2шт.

12

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex

4шт.

13

92-6

LOCK WASHER,3/8"

4шт.

14

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

15

A58651

WASHER

- 17/32 x 1-1/16 x 3/32

1шт.

16

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, 1/2"-20, GB

1шт.

17

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.
