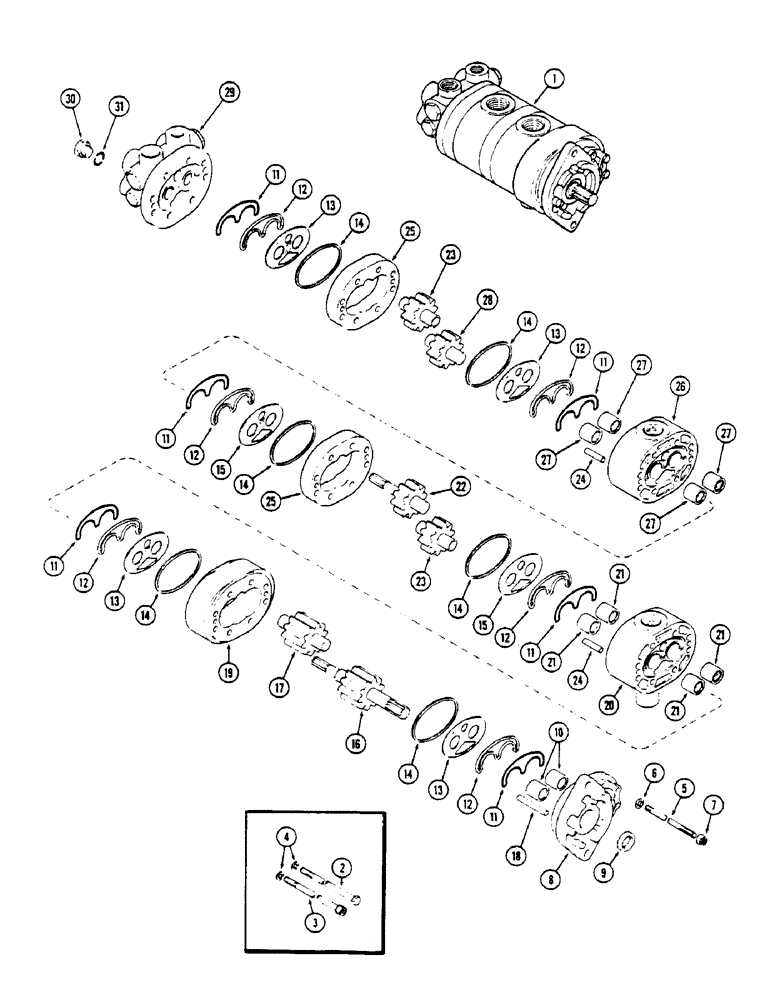

Запчасти Case IH 2670 (334) - HYDRAULIC PUMP ASSEMBLY (08) - HYDRAULICS

1

A141223

PUMP

ASSY. - hydraulic (With screw type flow divider plugs) (Replaces A137403 and A139176), Includes: Ref. 2 - 31

1шт.

1

A139176

PUMP, HYDRAULIC

PUMP ASSY. - hydraulic (With push type flow divider plugs) (Order A141223), Includes: Ref. 2 - 31

1шт.

1

A137403

PUMP, HYDRAULIC

PUMP ASSY. - hydraulic (With screw type flow divider plugs) (Order A141223), Includes: Ref. 2 - 31

1шт.

2

A44102

BOLT

- pump, 3/8 x 10-1/4" N.C. hex hd.

6шт.

Pumps were assembled with studs or bolts. Order as required per pump application.

1шт.

3

A44101

HEX SOC SCREW

BOLT - pump, 3/8 x 10-1/4" N.C. hex socket hd.

2шт.

Pumps were assembled with studs or bolts. Order as required per pump application.

1шт.

4

A32395

WASHER

- pump (Use with A44101 and A44102)

8шт.

5

A45163

STUD

- pump (3/8" N.C./N.F. x 10-1/2")

8шт.

Pumps were assembled with studs or bolts. Order as required per pump application.

1шт.

6

A45050

WASHER

- pump, 25/64 x 5/8 x 1/16"

8шт.

7

A45051

NUT

- pump stud, 3/8 N.F. flange

8шт.

8

A44110

HOUSING

BODY ASSY. - drive shaft end, Includes: Ref. 9 - 10

1шт.

9

T39095

OIL SEAL

- oil, pump drive shaft

1шт.

Included w/ REPAIR KIT, A44127

1шт.

Included w/ SEAL KIT, A44128

1шт.

10

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, pump body gear

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - pump pre-load

6шт.

Included w/ REPAIR KIT, A44127

1шт.

Included w/ SEAL KIT, A44128

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - pump load

6шт.

Included w/ REPAIR KIT, A44127

1шт.

Included w/ SEAL KIT, A44128

1шт.

13

A45046

WEAR PLATE

PLATE - wear, gear (Replaces T39089)

4шт.

Included w/ REPAIR KIT, A44127

1шт.

14

NSS

NOT SOLD SEPARAT

RING - seal retaining

6шт.

Included w/ REPAIR KIT, A44127

1шт.

Included w/ SEAL KIT, A44128

1шт.

15

A45047

LARGE PLATE

PLATE - wear, gear (Replaces A44103)

2шт.

Included w/ REPAIR KIT, A44127

1шт.

16

A44108

SHAFT

- pump drive, with gear

1шт.

17

A44107

GEAR

- idler, with shaft

1шт.

18

A44104

PIN

- dowel, body to gear plate, drive shaft end

2шт.

19

A47026

PLATE

- pump gear (Replaces A44105)

1шт.

20

A44111

PLATE

ASSY. - bearing, middle, Includes: Ref. 21

1шт.

21

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle

4шт.

22

T39092

GEAR

- drive shaft end

1шт.

23

A44106

GEAR

- pump drive

2шт.

24

T39077

PIN

- dowel, gear housing plate

4шт.

25

A45048

PLATE

- pump gear housing (Replaces A44100)

2шт.

26

A44126

PLATE

ASSY. - bearing, middle, Includes: Ref. 27

1шт.

27

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle

4шт.

28

D54175

GEAR

- idler shaft and gear assembly

1шт.

29

REF

INSTRUCTION

COVER ASSY. - rear (See Figure 336)

1шт.

30

L30425

PLUG

- end cover (When needed for unused port), Includes: Ref. 31

1шт.

A44127

KIT

REPAIR KIT - major wear plate and seal, Includes: Ref. 9 and 11 - 15

1шт.

A44128

KIT

- seal, Includes: Ref. 9, 11, 12, 14 and 218-5009 and 218-5007 Figure 336)

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug, 1/2 x 21/32 x 32" (12.7 x 16.66 x 2.38 MM)

1шт.
