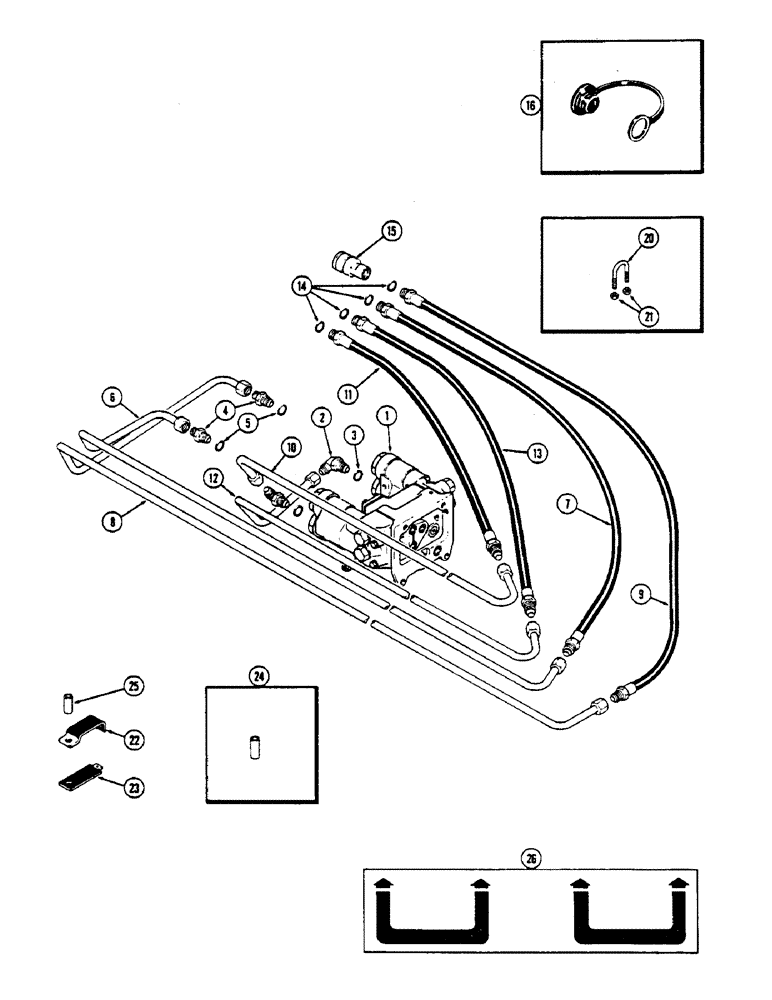

Запчасти Case IH 2670 (332) - REMOTE HYD. COUPLER CIRCUITRY, WITH TWIN DUAL CONTROL VALVE, FIRST USED TRAC. SERIAL NUMBER 8826987 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSY. - hydraulic remote (See Ref. 358)

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 7/8", Incl. Ref. 3

2шт.

3

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 7/64" (26.59 x 32.54 x 2.78 MM)

1шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - 7/8" straight, Includes: Ref. 5

1шт.

5

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 7/64" (26.59 x 32.54 x 2.78 MM)

1шт.

6

A147408

TUBE

- hose to remote #5

1шт.

7

A147455

HOSE,0.50" ID x 40.00", SAE 100R1

- Tube to coupling #5 0.50" ID x 40.00", SAE 100R1

1шт.

8

A147453

LINKAGE YOKE

TUBE - hose to remote #6

1шт.

9

A147454

HOSE,0.50" ID x 47.50", SAE 100R1

- Tube to coupling #6 0.50" ID x 47.50", SAE 100R1

1шт.

10

A147417

TUBE

- hose to remote #7

1шт.

11

A147457

HOSE

- tube to coupling #7

1шт.

12

A147452

TUBE

- hose to remote #8

1шт.

13

A147456

HOSE,0.50" ID x 34.00", SAE 100R1

- Tube to coupling #8, Includes Ref. 14 0.50" ID x 34.00", SAE 100R1

1шт.

14

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/4 x 1-9/32 x 7/64 (20.59 x 32.54 x 2.78 MM)

1шт.

15

A147741

COUPLING, BREAK AWAY

COUPLING ASSY. - female (See Figure 374) (Replaces A141156)

4шт.

16

A137135

PLUG

- dust

4шт.

20

A66788

CLAMP

- remote coupler

4шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

16шт.

22

A147584

CLAMP

- remote tubes, upper

2шт.

23

A147583

CLIP

CLAMP - remote tubes, lower

2шт.

24

A147284

SPACER - platform, long

2шт.

25

A147586

SPACER

- platform, short

4шт.

26

321-4623

DECAL

- remote coupling

1шт.
