(322) - SINGLE DUAL REMOTE HYDRAULICS CIRCUITRY, USED BEFORE TRANSMISSION SERIAL NUMBER 10025257

Запчасти Case IH 2670 (322) - SINGLE DUAL REMOTE HYDRAULICS CIRCUITRY, USED BEFORE TRANSMISSION SERIAL NUMBER 10025257 (08) - HYDRAULICS

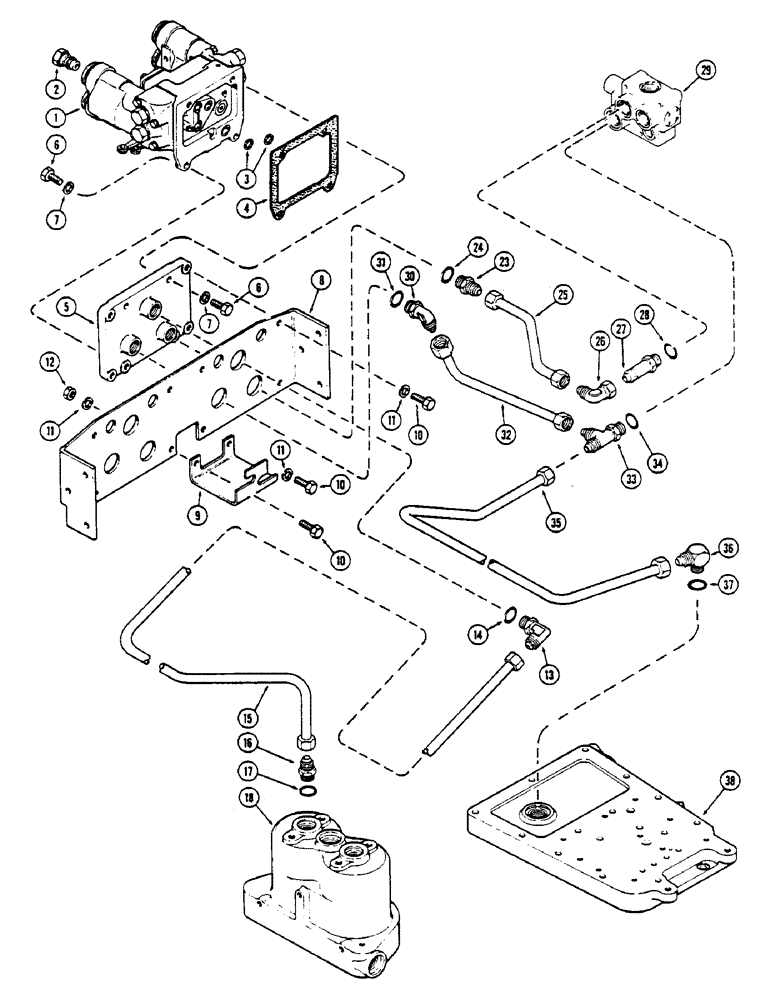

Схема запчастей Case IH 2670 - (322) - SINGLE DUAL REMOTE HYDRAULICS CIRCUITRY, USED BEFORE TRANSMISSION SERIAL NUMBER 10025257 (08) - HYDRAULICS
14
6
3
27
11
32
34
11
5
26
36
17
33
4
2
11
13
9
16
6
30
28
10
31
25
37
10
12
7
18
35
8
10
7
23
29
38
24
1
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSY. - single remote hyds. (See Figure 346)

1шт.

2

A147889

COUPLING, BREAK AWAY

COUPLING - male (Replaces A66816)

4шт.

3

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET -, Serial Range: valve-manifold

2шт.

4

A145407

GASKET

- valve to manifold (Replaces A144440)

1шт.

5

A76908

MANIFOLD

- remote valve mounting (Order A143889, A145346, A145347, A145347, A145407, 113-441 and 113-412)

1шт.

6

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Manifold valve Hex, 1/2"-13 x 1 3/8", G5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

A76612

SUPPORT - side plate, hydraulic couplings

1шт.

9

A76995

SUPPORT

BRACKET - cable mounting

1шт.

10

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

5шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

13

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, Assy, adjustable, Incl. Ref. 14

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

15

A76918

TUBE

- filter to standard single remote valve

1шт.

16

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

18

REF

INSTRUCTION

HOUSING - hydraulic filter (See Figure 308)

1шт.

23

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight, Incl. Ref. 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

25

A77016

TUBE

- regulator valve to standard remote valve

1шт.

26

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

27

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight, Includes: Ref. 28

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

29

REF

INSTRUCTION

VALVE ASSY. - pressure regulator (See Figure 340)

1шт.

30

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, Assy, adjustable, Incl. Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

32

A77017

TUBE

- regulator valve to standard remote valve

1шт.

33

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY. - adjustable, Includes: Ref. 34

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

35

A135649

TUBE

- pressure regulator valve to trans. top cover

1шт.

36

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, Assy, adjustable, Incl. Ref. 37

1шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

38

REF

INSTRUCTION

COVER - trans. top (See Figure 286)

1шт.
