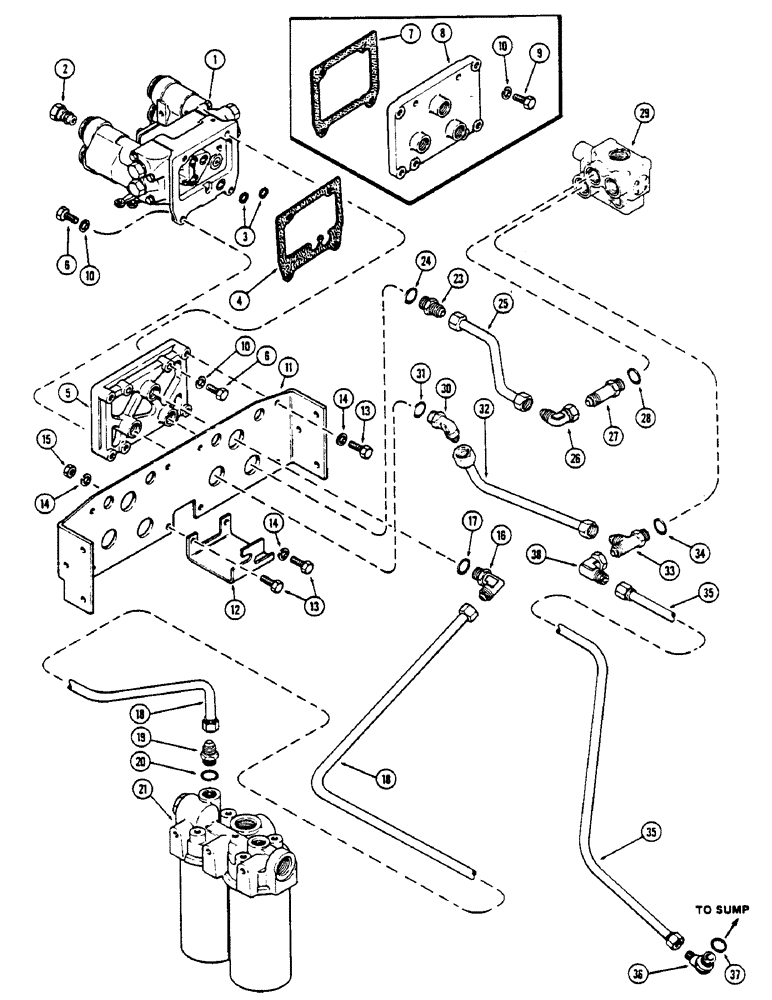

Запчасти Case IH 2670 (320) - SINGLE DUAL REMOTE HYDRAULICS CIRCUITRY, USED TRANSMISSION SERIAL NUMBER 10025257 TO 10053454 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSY. - single remote hyds. (See Figure 346)

1шт.

2

A66816

COUPLING, BREAK AWAY

COUPLING - male

4шт.

3

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET -, Serial Range: valve-manifold

2шт.

4

A145407

GASKET

- valve to manifold (1st used tractor ser. no. 8826007)

1шт.

5

A143889

MANIFOLD

- remote valve mounting (1st used tractor ser. no. 8826007)

1шт.

6

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- 1/2 x 2-1/4" N.C. hex (Use with A143889 manifold)

2шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex (Use with A143889 manifold)

2шт.

7

A145407

GASKET

- valve to manifold (Used before tractor ser. no. 8826007) (Order A145407)

1шт.

8

A76908

MANIFOLD

- remote valve mounting (Used before tractor ser. no. 8826007) (Order A143889, A145346, A145347, A145407, 113-412 and 113-441)

1шт.

9

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

Manifold to valve (Before tractor S/N 8826007) (Used with A76908 manifold) Hex, 1/2"-13 x 1 3/8", G5, Full Thd

4шт.

10

92-8

LOCK WASHER,1/2"

4шт.

11

A76612

SUPPORT - side plate, hydraulic couplings

1шт.

12

A76995

SUPPORT

BRACKET - cable mounting

1шт.

13

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

5шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

15

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

16

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, Assy,, Incl. Ref. 17

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

18

A139725

TUBE - filter to standard single remote valve

1шт.

19

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight, Incl. Ref. 20

1шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

21

REF

INSTRUCTION

HOUSING - hydraulic filter (See Figure 304)

1шт.

23

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight, Incl. Ref. 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

25

A77016

TUBE

- regulator valve to standard remote valve

1шт.

26

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

27

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight, Includes: Ref. 28

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

29

REF

INSTRUCTION

VALVE ASSY. - pressure regulator (See Figure 340)

1шт.

30

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, Assy, adjustable, Incl. Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

32

A77017

TUBE

- regulator valve to standard remote valve

1шт.

33

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY. - adjustable, Includes: Ref. 34

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

35

A139716

TUBE

- pressure regulator valve to trans. sump

1шт.

36

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable (At sump) (3/4" tube x 1"), Includes: Ref. 37 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

37

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8" (29.76 x 35.71 x 3.17 MM)

1шт.

38

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

(At tee) (3/4" tube) 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

1шт.
