(318) - SINGLE DUAL REMOTE HYDRAULICS CIRCUITRY, FIRST USED TRANSMISSION SERIAL NUMBER 10053454

Запчасти Case IH 2670 (318) - SINGLE DUAL REMOTE HYDRAULICS CIRCUITRY, FIRST USED TRANSMISSION SERIAL NUMBER 10053454 (08) - HYDRAULICS

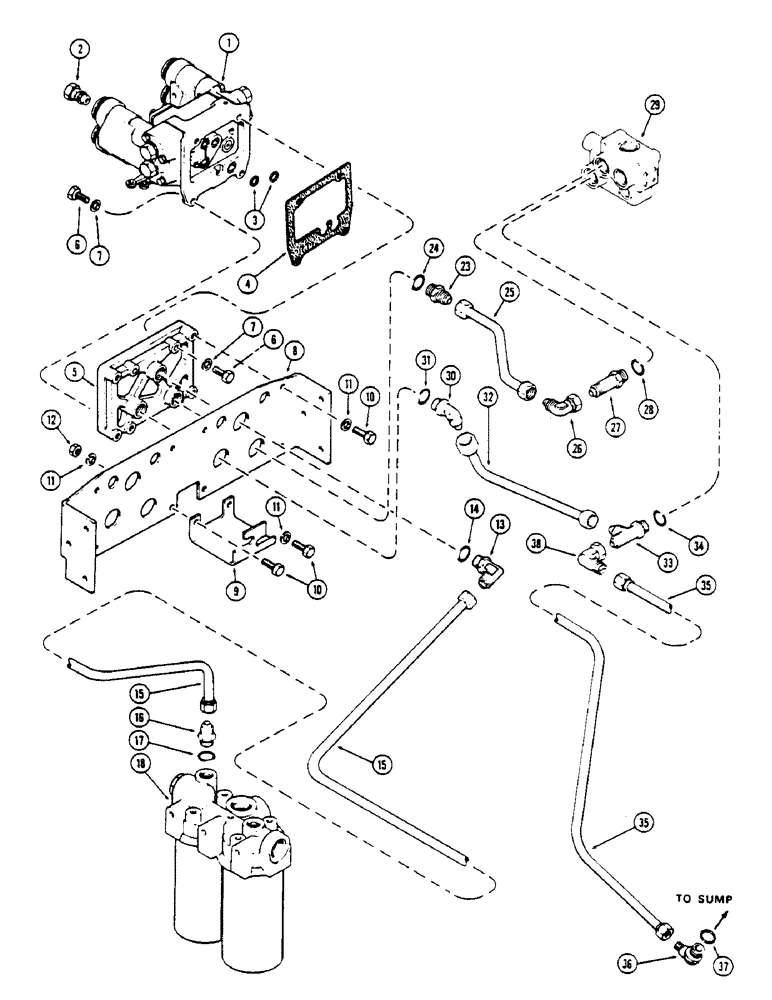

Схема запчастей Case IH 2670 - (318) - SINGLE DUAL REMOTE HYDRAULICS CIRCUITRY, FIRST USED TRANSMISSION SERIAL NUMBER 10053454 (08) - HYDRAULICS
26
24
6
33
14
31
11
25
4
13
15
27
9
18
5
29
15
34
10
17
7
1
3
17
36
2
12
11
38
30
35
11
8
35
23
7
28
6
32
10
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSY. - single remote hydraulic (See Figure 352)

1шт.

2

A147889

COUPLING, BREAK AWAY

COUPLING - male (Replaces A66816)

4шт.

3

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

GASKET -, Serial Range: valve-manifold

2шт.

4

A145407

GASKET

-, Serial Range: valve-manifold

1шт.

5

A143889

MANIFOLD

- remote valve mounting

1шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" NC hex, grade 5

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

A76612

SUPPORT - side plate, hydraulic couplings

1шт.

9

A145346

BRACKET

- cable mounting

1шт.

10

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

5шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

13

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, Assy,, Incl. Ref. 14

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

-3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

15

A139725

TUBE - filter to standard single remote valve

1шт.

16

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight, Incl. Ref. 17

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

18

REF

INSTRUCTION

HOUSING - hydraulic filter (See page 312)

1шт.

23

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight, Incl. Ref. 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

25

A77016

TUBE

- regulator valve to standard remote valve

1шт.

26

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

27

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight, Includes: Ref. 28

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

29

A76991

VALVE

ASSY. - pressure regulator (See Figure 340)

1шт.

30

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, Assy,, Incl. Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

32

A77017

TUBE

- regulator valve to standard remote valve

1шт.

33

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY. - adjustable, Includes: Ref. 34

1шт.

34

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

35

A139716

TUBE

- pressure regulator valve to transmission sump

1шт.

36

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º (At sump) (1" tube x 1-5/16"-12), Incl. Ref. 37

1шт.

37

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8" (29.70 x 30.71 x 3.17 MM)

1шт.

38

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

(At tee) (3/4" tube) 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

1шт.
