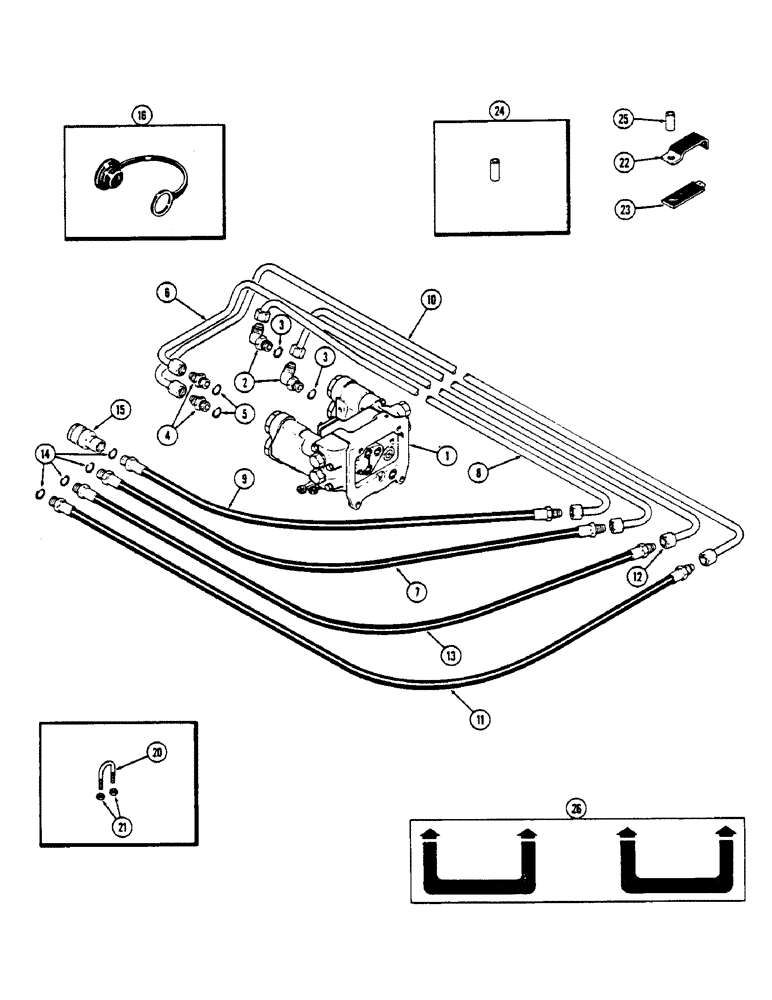

Запчасти Case IH 2670 (316) - REMOTE HYDRAULIC COUPLER CIRCUITRY, WITH SINGLE DUAL CONTROL VALVE, TRACTOR S/N 8826987 AND AFTER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSY. - hydraulic remote (See Figure 346)

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 7/8", Incl. Ref. 3

2шт.

3

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/16 x 1-9/32 x 7/64" (26.59 x 32.54 x 2.78 MM)

1шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - 7/8" straight, Includes: Ref. 5

2шт.

5

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 7/64" (26.59 x 32.54 x 2.78 MM)

1шт.

6

A147464

TUBE

- hose to remote #1

1шт.

7

A147456

HOSE,0.50" ID x 34.00", SAE 100R1

- Tube to coupling #1 (Includes Ref. 14) 0.50" ID x 34.00", SAE 100R1

1шт.

8

A147458

TUBE

- hose to remote #2

1шт.

9

A147457

HOSE

- tube to coupling #2, 29" long (736.6 MM) (Includes Ref. 14)

1шт.

10

A147461

TUBE

- hose to remote #3

1шт.

11

A147454

HOSE,0.50" ID x 47.50", SAE 100R1

- Tube to coupling #3 (Includes Ref. 14) 0.50" ID x 47.50", SAE 100R1

1шт.

12

A147459

TUBE - hose to remote #4

1шт.

13

A147455

HOSE,0.50" ID x 40.00", SAE 100R1

- Tube to coupling #4 (Includes Ref. 14) 0.50" ID x 40.00", SAE 100R1

1шт.

14

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 x 1-9/32 x 7/64" (26.59 x 32.54 x 2.78 MM)

4шт.

15

A147741

COUPLING, BREAK AWAY

COUPLING ASSY. - female (See Figure 374) (Replaces A141156)

4шт.

16

A137135

PLUG

- dust, black

2шт.

16

A137136

PLUG

- dust, white

2шт.

20

A66788

CLAMP

- remote coupler

4шт.

21

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

16шт.

22

A147584

CLAMP

- remote tubes, upper

2шт.

23

A147583

CLIP

CLAMP - remote tubes, lower

2шт.

24

A147284

SPACER - platform, 3/4" OD x 1-13/16" long

2шт.

25

A147586

SPACER

- platform, 3/4" OD x 1-9/16" long

4шт.

26

321-4623

DECAL

- remote coupling

1шт.
