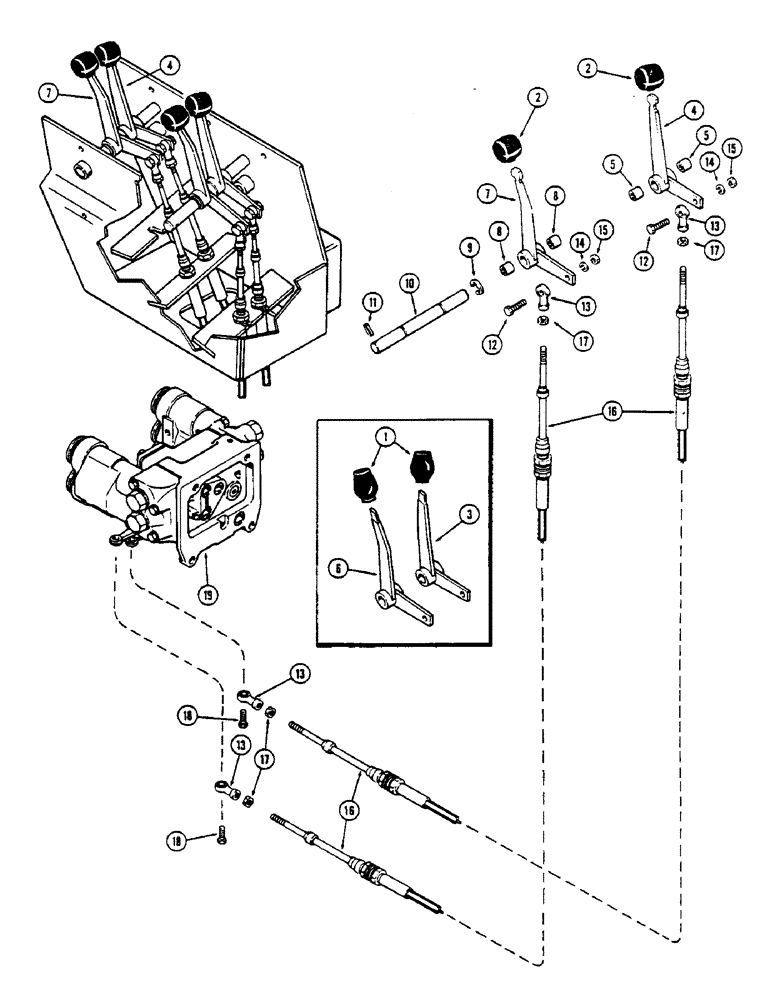

Запчасти Case IH 2670 (314) - SINGLE DUAL REMOTE HYDRAULIC CONTROLS (08) - HYDRAULICS

1

A65699

KNOB

- lever (Plastic) (Order A137806)

2шт.

2

A137806

KNOB

- lever (Rubber)

2шт.

3

A75728

LEVER

ASSY. - inner (With threaded top) (Order Ref. 2 and 4)

1шт.

4

A137841

LEVER

ASSY. - inner (Replaces A75728), Includes: Ref. 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

6

A75732

LEVER

ASSY. - outer (With threaded top) (Order Ref. 2 and 7)

1шт.

7

A137844

LEVER

ASSY. - outer (Replaces A75732), Includes: Ref. 8

1шт.

8

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

1шт.

9

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, , shaft #62, .480" Dia, E-Type

1шт.

10

A75736

SHAFT

- console lever

1шт.

11

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

12

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

13

A35134

BEARING

BALL JOINT - (5/16"-24 N.F.)

4шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

16

A145337

CABLE,2235.2mm L

- remote (Replaces A76997) 88"

2шт.

17

86637933

JAM NUT,5/16" - 24, Gr 5

4шт.

18

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

2шт.

19

REF

INSTRUCTION

VALVE ASSY. - single dual remote hyds. (See Figure 346)

1шт.
