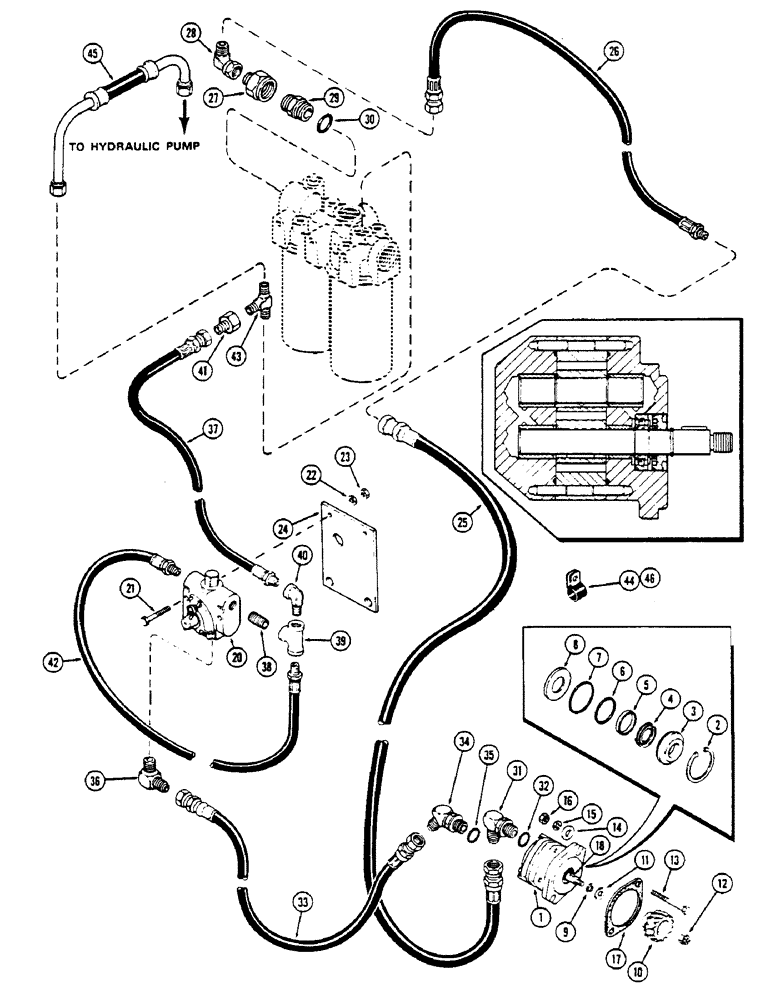

Запчасти Case IH 2670 (310) - AUXILIARY HYDRAULIC PUMP AND VALVE, FIRST USED TRANSMISSION SERIAL NUMBER 10025257 (08) - HYDRAULICS

A77327

KIT - auxiliary hydraulic (6 G.P.M.) (Mach. item), Includes: Ref. 1 - 46

1шт.

A77328

KIT - auxiliary hydraulic (11 G.P.M.) (Mach. item), Includes: Ref. 1 - 46

1шт.

1

A139692

PUMP

- auxiliary (6 G.P.M.) (23 liters), Includes: Ref. 2 - 9

1шт.

1

A139693

PUMP

- auxiliary (11 G.P.M.) (42 liters), Includes: Ref. 2 - 9

1шт.

A45378

SEAL

KIT - pump seal, Includes: Ref. 2 - 8

1шт.

2

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

3

A45377

SEAL

RETAINER - seal

1шт.

4

A45374

RING

- quad

1шт.

5

A45376

COLLAR

- o-ring

1шт.

6

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- 15/16 x 1-1/8 x 3/32" (23.81 x 28.58 x 2.38 MM) (Replaces A58602)

1шт.

7

A59066

O-RING,1.239" ID x 1.379" OD

- 1-1/4 x 1-3/8 x 1/16" (31.75 x 34.92 x 1.58 MM)

1шт.

8

A45375

WASHER

- back-up

1шт.

9

D32101

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

10

L43703

GEAR

- pump drive

1шт.

11

A64303

WASHER

- thrust, drive gear 41/64 x 1-1/16 x 1/16"

1шт.

12

131-58

LOCK NUT,1/2"-20, G5

NUT - 1/2" N.F. hex lock ESSNA

1шт.

13

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8 x 3-3/4" N.C. hex, grade 5

2шт.

14

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16"

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

17

A58617

GASKET

- pump mounting

1шт.

18

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

20

A139696

VALVE

- variable flow

1шт.

21

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

25-104

NUT,1/4"-20, G5

2шт.

24

A139609

BRACKET

- valve mounting

1шт.

25

A141005

HOSE - inlet, filter to pump, 3/4" I.D. x 100" (19.05 x 2540 MM)

1шт.

26

A143379

HOSE,0.75" ID x 24.00", SAE 100R1

- Inlet, Filter to pump, 3/4" ID x 24" (19.05 x 609.6 mm)

1шт.

27

218-727

REDUCER,37 Degree, 1 5/8"-12, Fem x 1 1/16"-12 Male

- tube, 1-1/4 to 3/4" (Inlet to filter)

1шт.

28

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

Assy, 3/4" tube 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

1шт.

29

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - 1-1/4" tube x 1-5/8"-12 thrd. str., Includes: Ref. 30

1шт.

30

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-15/32 x 1-23/32 x 1/8" (37.30 x 43.65 x 3.17 MM)

1шт.

31

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, Assy, 3/4" tube x 1-1/16"-12 thd, Incl. Ref. 32

1шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8" (29.76 x 35.71 x 3.17 MM)

1шт.

33

A141008

HOSE,0.50" ID x 16.00", SAE 100R2

- Outlet, Pump to valve 0.50" ID x 16.00", SAE 100R2

1шт.

34

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ASSY. - 3/4" tube x 1-1/16"-12 thrd., 37 degrees, Incl. Ref 35

1шт.

35

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8" (29.76 x 35.71 x 3.17 MM)

1шт.

36

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 5/8" tube x 7/8"-14 thrd., 90 degrees

1шт.

37

A141011

HOSE - return, valve to filter, 1/2" I.D. x 107" (12.7 x 2717.8 MM)

1шт.

38

218-1185

NIPPLE - 1/2" P.T. x 1-1/8" lg., return, Serial Range: hose-valve

1шт.

39

221-1424

TEE,Pipe, 1/2" NPT

- 1/2" P.T., return hose to valve

1шт.

40

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

- 1/2" P.T. x 1/2" P.T., 90 deg. return hose to valve

1шт.

41

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

- 3/4 x 5/8", return to filter

1шт.

42

A141012

HOSE

- by-pass, 3/8" I.D. x 22" (9.52 x 555.8 MM)

1шт.

43

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

- 1" x 1" x 3/4" swivel, return to filter

1шт.

44

T50104

CLAMP

- hose, inlet

1шт.

45

A143152

HOSE - pump to tee on filter (Used with P.T.O.)

1шт.

45

A145295

HOSE - pump to tee on filter (Used without P.T.O.)

1шт.

46

A141013

CLAMP,1 1/8", Insul, 3/8" Bolt

- hose

1шт.
