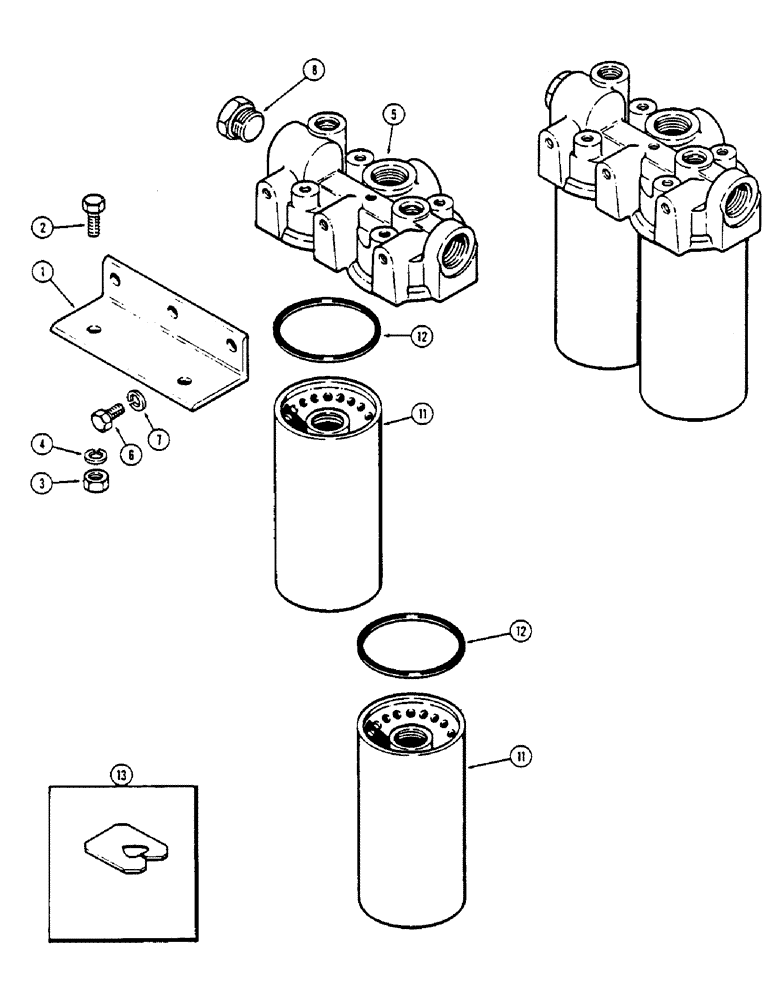

Запчасти Case IH 2670 (306) - HYDRAULIC FILTERS AND HOUSING, FIRST USED TRANSMISSION SERIAL NUMBER 10025257 (08) - HYDRAULICS

1

A137952

BRACKET

- filter mounting

1шт.

2

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

3

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

A137898

HOUSING

- filter mounting

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

- housing

1шт.

A45625

HYDRAULIC OIL FILTER

ELEMENT KIT - hyd. filter, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

FILTER - hydraulic oil (Order A45625)

2шт.

12

A139281

GASKET

- filter element

2шт.

13

A143387

CLIP - gasket retriever

2шт.
