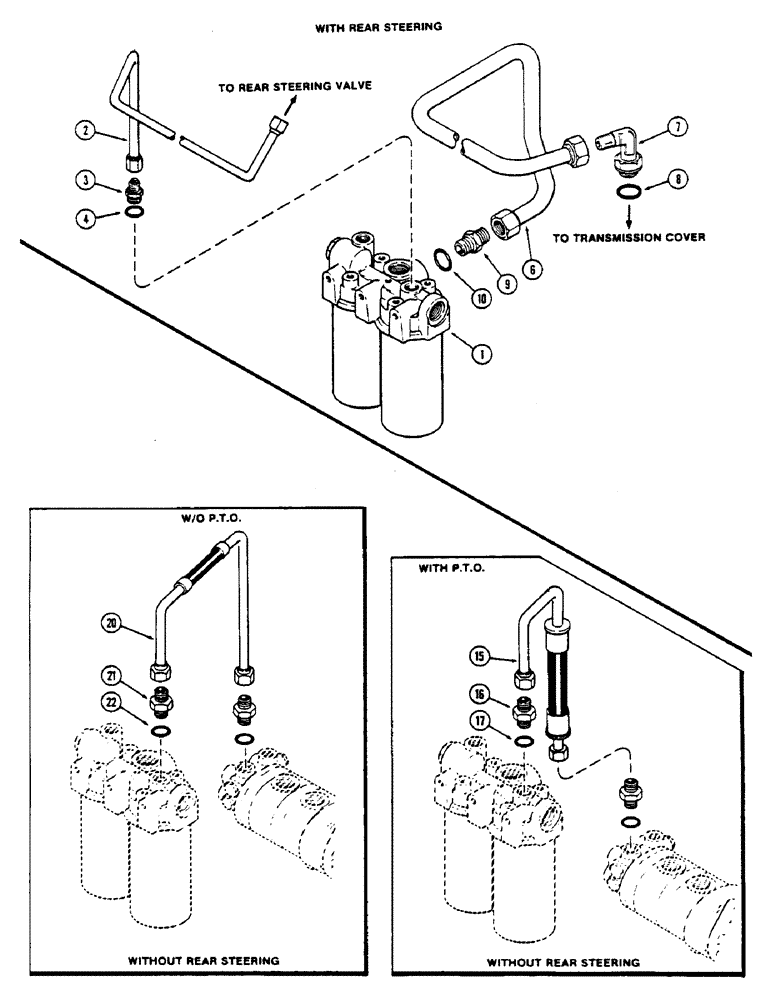

Запчасти Case IH 2670 (302) - HYDRAULIC FILTER CIRCUITRY, WITH REAR STEERING, FIRST USED TRANSMISSION SERIAL NUMBER 10025257 (08) - HYDRAULICS

1

REF

INSTRUCTION

HOUSING - hyd. filter mounting (See Figure 308)

1шт.

2

A139726

TUBE

- return

1шт.

3

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, Incl. Ref. 4

1шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

6

A139715

TUBE

-, Serial Range: filter-cover

1шт.

7

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

- 90 degree adjustable (Tube to cover), Includes: Ref. 8

1шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8" (29.76 x 35.71 x 3.17 MM)

1шт.

9

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - straight (Tube to filter housing), Includes: Ref. 10

1шт.

10

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-3/4 x 2 x 1/8" (44.45 x 50.8 x 3.17 MM)

1шт.

15

A139728

HOSE

- pump to filter, w/o rear steering, w/o PTO

1шт.

16

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, w/o rear steering, w/o PTO

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM), w/o rear steering, w/o PTO

1шт.

20

A139729

HOSE - pump to filter, w/o rear steering, w/ PTO

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, w/o rear steering, w/ PTO

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM), w/o rear steering, w/ PTO

1шт.
