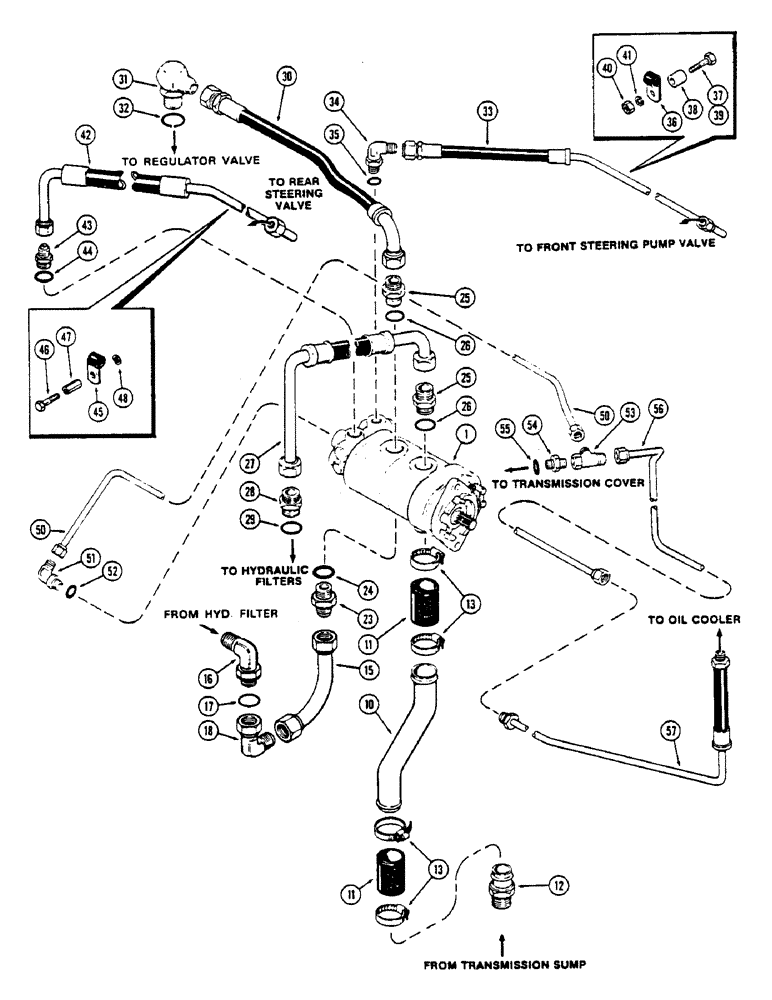

Запчасти Case IH 2670 (298) - HYDRAULIC PUMP AND CIRCUITRY, WITHOUT P.T.O., FIRST USED TRANSMISSION SERIAL NUMBER 10025257 (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSY. - hydraulic (See Figure 334)

1шт.

10

A75477

TUBE

- suction line

1шт.

11

A75476

HOSE

- suction line (1/2" I.D. x 3-5/16" lg.)

2шт.

12

217-158

FITTING,1-1/2" Hose Barb x 1-1/2" Male NPTF

- hose to trans. (1-1/2" I.D. x 1-1/2" P.T.)

1шт.

13

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33.33 to 57.15 mm) #28, 1.31/2.25 Type F Worm

4шт.

15

A139719

TUBE

-, Serial Range: filter-pump

1шт.

16

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ASSY. - 90 degrees adjustable (1-1/4" tube x 1-5/8"-12), Includes: Ref. 17

1шт.

17

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- 1-15/32 x 1-23/32 x 1/8" (37.30 x 43.65 x 3.17 MM)

1шт.

18

218-5235

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

ASSY. - (90 deg.-1-1/4" stf. thrd.)

1шт.

23

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR ASSY. - straight (1" tube x 1-5/8"-12), Includes: Ref. 24

1шт.

24

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-23/32 x 1-32/32 x 1/8" (43.64 x 50 x 3.17 MM)

1шт.

25

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSY. - straight (1" tube x 1-5/16"-12), Incl. Ref. 26

2шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8" (29.76 x 35.71 3.17 MM)

1шт.

27

A139720

HOSE

-, Serial Range: pump-filter

1шт.

28

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

CONNECTOR ASSY. - straight (1" x 1-1/4" tube), Includes: Ref. 29

1шт.

29

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8" (29.76 x 35.71 3.17 MM)

1шт.

30

A77013

HOSE

- pump to pressure regulator valve

1шт.

31

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, Assy, adjustable (1" tube x 1-5/16"-12), Incl. Ref. 32

1шт.

32

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-13/32 x 1/8" (29.76 x 35.71 3.17 MM)

1шт.

33

A138374

HOSE

- pump to frt. strg. valve (Replaces A77029)

1шт.

34

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Adjustable (1/2" tube), Includes: Ref. 35 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

35

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.66 x 2.38 MM)

1шт.

36

49838

CLAMP

- (1/2" tube)

4шт.

37

187-1304

SELF-TAP SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

SCREW - (3/8"-16 x 3/4" self tap)

2шт.

38

A76093

BUSHING

SPACER - clip (13/32" I.D. x 3/4" O.D. x 1/2")

1шт.

39

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

40

9635082

NUT,5/16" - 18, Gr 5

1шт.

41

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

42

A138372

HOSE

- pressure (Used with rear steer only)

1шт.

43

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight (3/4" tube x 1-1/16"-12), Incl. Ref. 44

2шт.

44

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

45

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- (3/4" tube) (With rear steer only)

2шт.

46

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

With rear steer only Hex, 3/8"-16 x 2 1/4", G5

2шт.

47

A135623

BUSHING

SPACER - tube (With rear steer only)

2шт.

48

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (With rear steer only) 3/8"

2шт.

50

A77036

TUBE

- relief valve drain (Used with or without rear steer)

1шт.

51

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, Adjustable (1/2" tube), Includes: Ref. 52 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

52

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.66 x 2.38 MM)

1шт.

53

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

(1/2" tube O.D.) 37º, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

54

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight (3/4" tube x 1-1/16"-12), Incl. Ref. 55

1шт.

55

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

56

A77040

TUBE

- oil cooler return

1шт.

57

A77041

HOSE

- oil cooler return

1шт.
