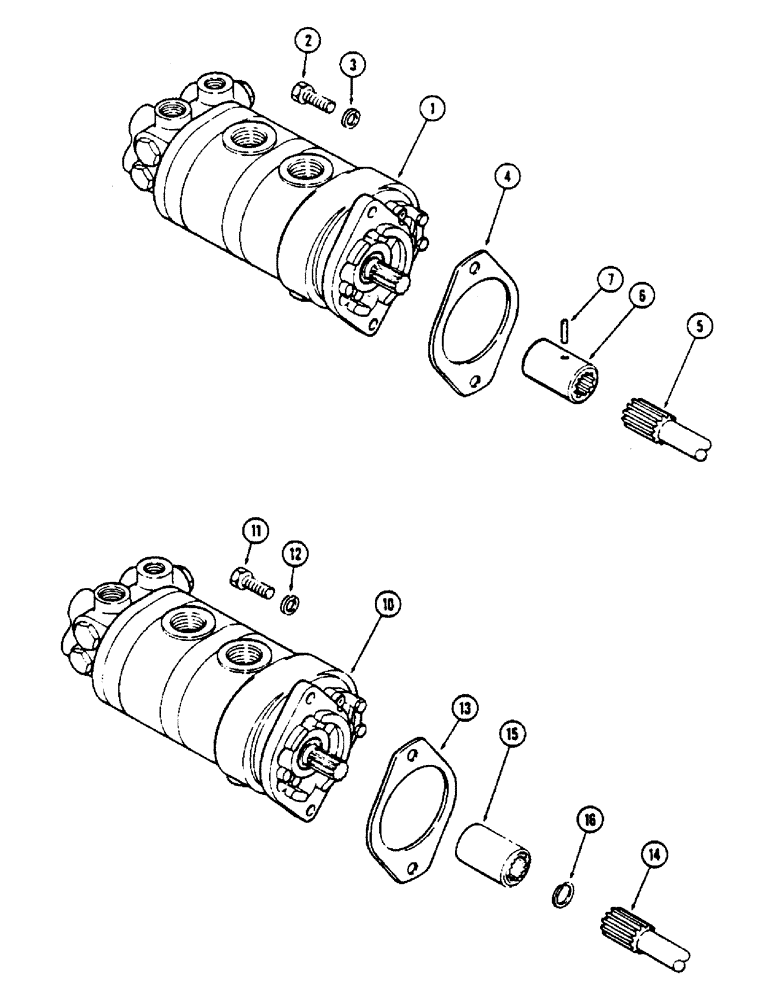

Запчасти Case IH 2670 (296) - HYDRAULIC PUMP MOUNTING AND DRIVE, WITHOUT P.T.O., FIRST USED TRANSMISSION SERIAL NUMBERS 1457626 (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSY. - hydraulic (See Figure 334)

1шт.

2

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

A76477

GASKET

- pump drive

1шт.

5

REF

INSTRUCTION

SHAFT - transmission input and pump drive (See Figure 204)

1шт.

6

A144657

COUPLING

COUPLER - pump drive

1шт.

7

138-65

LOCK PIN,1/8" x 1 1/2", Slotted

PIN, 1/8" x 1 1/2", Slotted

1шт.

10

REF

INSTRUCTION

PUMP ASSY. - hydraulic (See Figure 334), used before transmission s/n 1457626

1шт.

11

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Used before transmission S/N 1457626 Hex, 1/2"-13 x 1 3/4", G5

2шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used before transmission S/N 1457626 1/2"

2шт.

13

A76477

GASKET

- pump drive, used before transmission s/n 1457626

1шт.

14

REF

INSTRUCTION

SHAFT - transmission input and pump drive (See Figure 204), used before s/n 1457626

1шт.

15

A144657

COUPLING

COUPLER - pump drive (Replaces A77124), used before transmission s/n 1457626

1шт.

Ref 15 - See coupling A75192 on Figure 265 has 27 external teeth and 13 internal teeth.

1шт.

16

A51710

RING, SNAP

RING - snap, coupler, used before transmission s/n 1457626

1шт.
