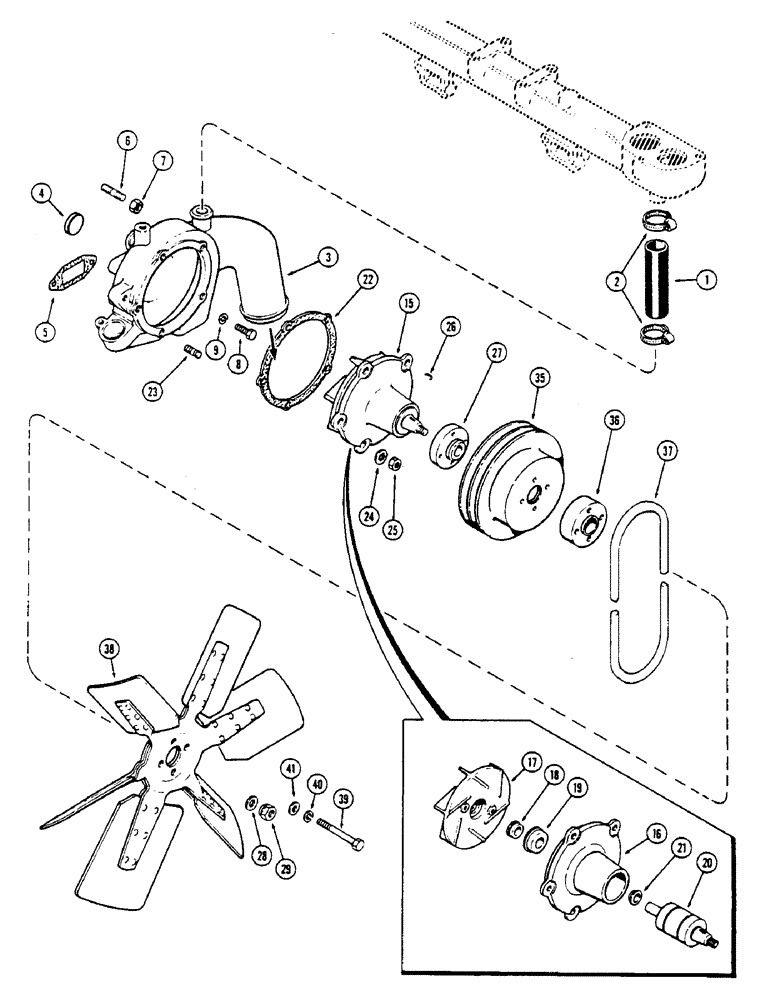

Запчасти Case IH 2670 (010) - WATER PUMP, 504BDT/INTERCOOLED DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 10020829 (02) - ENGINE

1

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water pump by-pass, 1-7/32 x 1-17/64 x 5-19/64" (30.96 x 32.15 x 134.54 MM)

1шт.

2

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4" (30.16 x 44.45 MM)

2шт.

3

A150683

HOUSING

BODY ASSY. - water pump (Replaces A76654), Includes: Ref. 4

1шт.

A48370 Reman Water Pump

1шт.

4

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-7/64" cup type (28.11 MM)

1шт.

5

A58649

GASKET

-, Serial Range: body-block

1шт.

6

A59077

STUD

- 3/8 x 1-13/16", Serial Range: body-block

2шт.

7

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

15

A154522

PUMP

ASSY. - water, Includes: Ref. 16 - 21

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - water pump

1шт.

17

A76653

SEAL

IMPELLER - water (Cast iron)

1шт.

18

A34000

SEAL

SEAT - impeller

1шт.

19

A142499

SEAL

- pump shaft

1шт.

20

A154521

SHAFT

ASSY. - with bearing, Includes: Ref. 21

1шт.

21

Q829325

BUSHING

- water

1шт.

22

A76656

GASKET

-, Serial Range: pump-body

1шт.

23

A62234

STUD

- 3/8"-16 N.C. x 1-5/16", Serial Range: body-pump

5шт.

24

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

5шт.

25

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex. jam

5шт.

26

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

KEY - Woodruff, #10

1шт.

27

A146221

HUB

- fan and, Serial Range: pulley-pump

1шт.

28

A58651

WASHER

- 17/32 x 1-1/16 x 3/32"

1шт.

29

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, 1/2"-20, GB

1шт.

35

A146982

PULLEY

- fan driven

1шт.

36

A61268

BUSHING

SPACER - fan, 1" wide

1шт.

37

A76745

SET OF BELTS,0.69" W

SET OF 2 BELTS , Matched, Fan 0.69" W

1шт.

38

A76744

FAN

- radiator, suction

1шт.

39

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex., grade 5

4шт.

40

92-6

LOCK WASHER,3/8"

4шт.

41

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

331-509

PENETRATING OIL

RUST INHIBITOR - (1 pint)

1шт.

Do not use rust inhibitor if equipped with water filter kit.

1шт.
