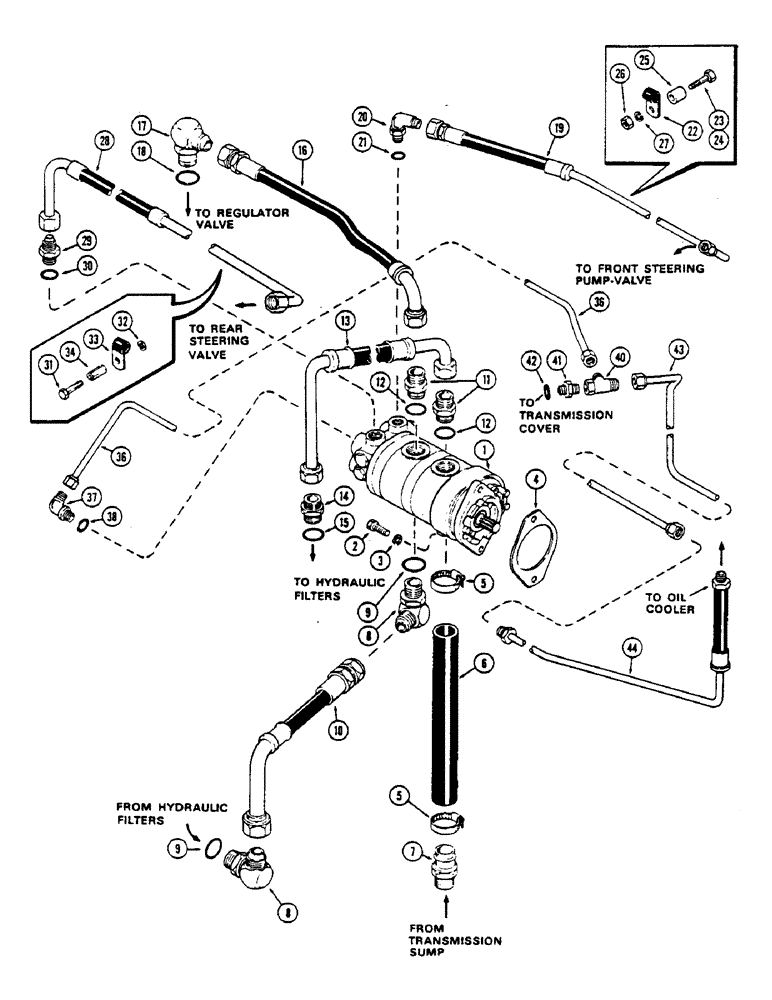

Запчасти Case IH 2670 (294) - HYDRAULIC PUMP CIRCUITRY, WITH P.T.O., USED BEFORE TRANSMISSION SERIAL NUMBER 10025257 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
PUMP ASSY. - hydraulic (See Figure 334)
1шт.
2
113-412
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
2шт.
3
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
2шт.
4
A76477
GASKET
- pump drive
1шт.
5
214-260
HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm
(40.03 x 69.85 mm) #36, 1.81/2.75 Type F Worm
2шт.
6
A76044
HOSE
- suction line
1шт.
7
217-158
FITTING,1-1/2" Hose Barb x 1-1/2" Male NPTF
- hose to trans. 1-1/2" I.D. x 1-1/2" P.T.
1шт.
8
218-5112
ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB
ASSY. - 90 degree adjustable, 1-1/4" tube x 1-5/8"-12, Includes: Ref. 9
2шт.
9
218-5011
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
- 1-15/32 x 1-23/32 x 1/8" (37.30 x 43.65 x 3.17 MM)
1шт.
10
A75502
HOSE
-, Serial Range: filter-pump
1шт.
11
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
CONNECTOR - straight, 1" tube x 1-5/16"-12, Incl. Ref. 12
2шт.
12
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- 1-11/64 x 1-13/32 x 1/8" (29.76 x 35.71 x 3.17 MM)
1шт.
13
A75501
HOSE
-, Serial Range: pump-filter
1шт.
14
218-5086
HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring
CONNECTOR - straight (1" O.D. x 1-1/4"), Includes: Ref. 15
1шт.
15
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- 1-11/64 x 1-13/32 x 1/8" (29.76 x 35.71 x 3.17 MM)
1шт.
16
A77015
HOSE
- pump to pressure regulator valve
1шт.
17
218-5110
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
90º, Assy, adjustable, 1-1/4" tube x 1-5/8"-12, Incl. Ref. 18
1шт.
18
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- 1-11/64 x 1-13/32 x 1/8" (29.76 s 35.71 x 3.17 MM)
1шт.
19
A138367
HOSE
- pump to frt. strg. valve (Used with and without rear steer)
1шт.
20
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
ASSY. - 90 degrees adjustable, 1/2" tube x 3/4"-16, Includes: Ref. 21 and 22
1шт.
21
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
0-RING - 1/2 x 21/32 x 3/32" (12.7 x 16.66 x 2.38 MM0
1шт.
22
49838
CLAMP
- (1/2" tube)
4шт.
23
187-1304
SELF-TAP SCREW,Cross Flat Hd, 3/8"-16 x 3/4"
SCREW - 3/8"-16 x 3/4" self tap
2шт.
24
113-122
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
1шт.
25
A76093
BUSHING
SPACER - clamp, 13/32" I.D. x 3/4" O.D. x 1/2"
1шт.
26
9635082
NUT,5/16" - 18, Gr 5
1шт.
27
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
28
A138373
HOSE
- pressure (Used with rear steer only)
1шт.
29
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
CONNECTOR ASSY. - straight, 3/4" tube x 1-1/16-12, Incl. Ref. 30
2шт.
30
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)
1шт.
31
113-213
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
Use with rear steer only Hex, 3/8"-16 x 2 1/4", G5
2шт.
32
192-21
LOCK WASHER,3/8"
WASHER, LOCK, (Used with rear steer only) 3/8"
2шт.
33
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
- 3/4" tube (Used with rear steer only)
2шт.
34
A135623
BUSHING
SPACER - tube (Used with rear steer only)
2шт.
36
A77037
TUBE
- relief valve drain (Used with and without rear steer)
1шт.
37
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 90 degrees adjustable, 1/2" tube x 3/4"-16, Includes: Ref. 38
1шт.
38
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- 1/2 x 21/32 x 3/32" (12.7 x 16.66 x 2.38 MM)
1шт.
40
218-845
TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run
1/2" tube O.D. 37º, 3/4"-16 x 3/4"-16, Fem Sw Run
1шт.
41
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
CONNECTOR - straight, 3/4" tube x 1-1/16"-12, Incl. Ref. 42
1шт.
42
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)
1шт.
43
A77040
TUBE
- oil cooler return
1шт.
44
A77041
HOSE
- oil cooler return
1шт.
Выбрано товаров: 42
