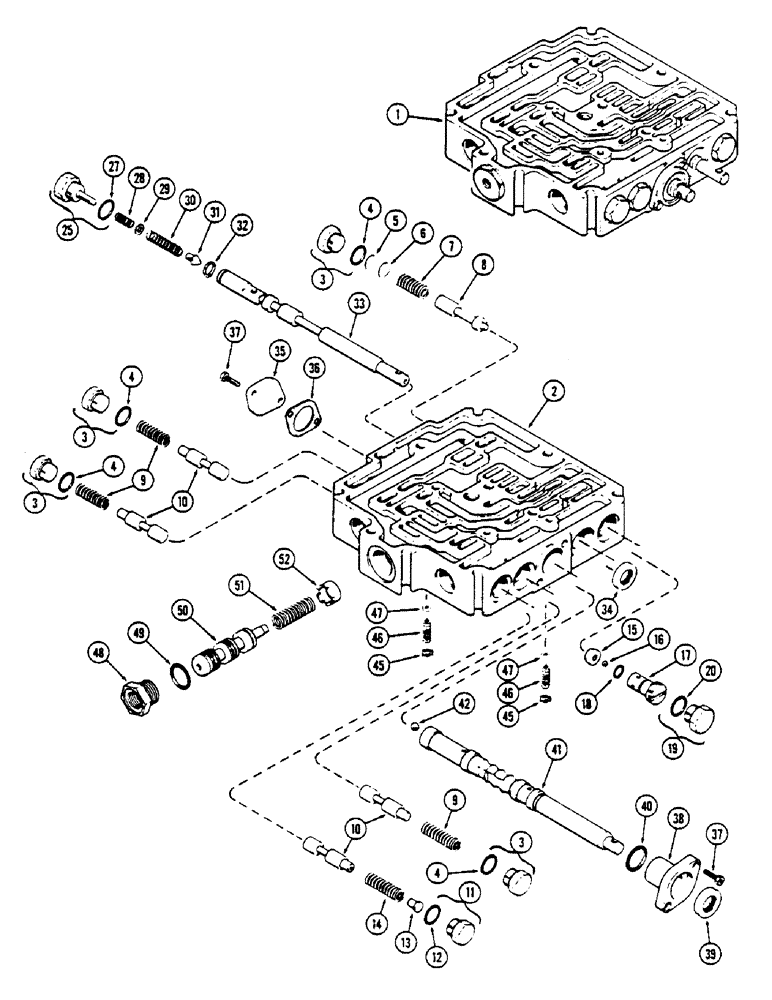

Запчасти Case IH 2670 (290) - TRANSMISSION CONTROL VALVE ASSEMBLY, USED BEFORE TRANSMISSION SERIAL NUMBER 10064489 (08) - HYDRAULICS

1

A66707

VALVE

ASSY. - transmission control (Order A148160), Includes: Ref. 2 - 52

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order A148160)

1шт.

3

A62564

PLUG

ASSY. - pilot spool and pressure regulator, Includes: Ref. 4

4шт.

5

A37554

SHIM,.0269" Thk

Pressure regulator (0.683 mm) .0269" Thk

1шт.

6

A37555

SHIM,.0120" Thk

Pressure regulator (0.30 mm) .0120" Thk

1шт.

7

A58436

SPRING

- regulator, 1-3/8" free length (34.92 MM)

1шт.

8

A37551

PLUNGER

- pressure regulator (Order A146644)

1шт.

9

A58271

SPRING

- return, pilot spool, 1-49/64" free length (44.84 MM)

3шт.

10

A59063

SPOOL

- pilot (Order A146590)

4шт.

11

A62641

PLUG

ASSY. - pilot spool bore, Includes: Ref. 12

1шт.

13

A62640

STOP

- pilot spool

1шт.

14

A66692

SPRING

- return, pilot spool, 1-23/32" free length (43.65 MM)

1шт.

15

A58441

SEAT

- shuttle valve ball

1шт.

16

211-7

BALL,1/4" Dia

chrome steel (6.35 mm) shuttle valve 1/4" Dia

1шт.

17

A154804

SLEEVE

- shuttle valve (Replaces A58440)

1шт.

18

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- 1/2 x 11/16 x 3/32" (12.7 x 17.46 x 2.38 MM) shuttle valve sleeve

1шт.

Included w/ SEAL KIT, A42885

1шт.

19

86512512

PLUG,7/8" - 14 ORB

- Shuttle valve bore, Incl. Ref. 20 Hex Hd, 7/8"-14 ORB

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32" (19.05 x 15.87 x 2.38 MM)

1шт.

Included w/ SEAL KIT, A42885

1шт.

A42887

KIT

- clutch modulator, Includes: Ref. 25 - 31

1шт.

25

A61985

PLUG

- modulator, Includes: Ref. 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug, 3/4 x 5/8 x 3/32" (19.05 x 15.87 x 2.38 MM)

1шт.

Included w/ SEAL KIT, A42885

1шт.

28

A61988

SPRING

- clutch modulator, secondary, 1-43/64" free length (42.47 MM)

1шт.

29

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide

1шт.

A60155

SPRING

POINT AND SPRING ASSY. - clutch modulator

1шт.

30

NSS

NOT SOLD SEPARAT

SPRING - modulator, primary, 1-39/64" free length (40.88 MM)

1шт.

31

NSS

NOT SOLD SEPARAT

POINT - modulator

1шт.

32

G46176

SNAP RING,#56, Ext

Ring, Snap, , clutch control spool #56, Ext

1шт.

33

A62636

SPOOL

- clutch control

1шт.

34

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- clutch control spool

1шт.

Included w/ SEAL KIT, A42885

1шт.

35

A58429

COVER

- selector, spool bore

1шт.

36

A66110

GASKET

- selector, bore cover

1шт.

Included w/ SEAL KIT, A42885

1шт.

37

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

- cap (1/4 x 3/4" N.C. hex socket hd.)

4шт.

38

A62839

SLEEVE

- selector spool

1шт.

39

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- oil, selector spool (Replaces A58428)

1шт.

Included w/ SEAL KIT, A42885

1шт.

40

A59066

O-RING,1.239" ID x 1.379" OD

- 1-3/16 x 1-1/4 x 1/16" (30.16 x 31.75 x 1.58 MM) bore cover

1шт.

Included w/ SEAL KIT, A42885

1шт.

41

A60550

SPOOL

ASSY. - selector, Includes: Ref. 42

1шт.

42

NSS

NOT SOLD SEPARAT

BALL - 9/32" dia., chrome steel (7.14 MM) (Order A60550)

1шт.

45

A58439

RETAINER

- retard check spring

2шт.

46

A58438

SPRING

- retard check, 15/16" free length (23.81 MM)

2шт.

47

211-8

BALL,9/32" Dia

chrome steel (7.14 mm) 9/32" Dia

2шт.

48

A63293

BUSHING

- reducer, O-ring boss to reverse lock out

1шт.

49

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- bushing, 3/4 x 59/64 x 7/64" (19.05 x 23.41 x 2.77 MM)

1шт.

Included w/ SEAL KIT, A42885

1шт.

50

A61032

SPOOL

- reverse lock out (Order A146637)

1шт.

51

A58432

SPRING

- reverse lock out

1шт.

52

A61033

SLEEVE

- stop, reverse lock out spool

1шт.

A42885

SEAL KIT

- seal, Includes: Ref, 4, 12, 18, 20, 27, 34, 36, 39, 40 and 49

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug, 1/2 x 41/64 x 5/64" (12.7 x 16.27 x 1.98 MM)

1шт.

Included w/ SEAL KIT, A42885

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 41/64 x 5/64" (12.7 x 16.27 x 1.98 MM)

1шт.

Included w/ SEAL KIT, A42885

1шт.
