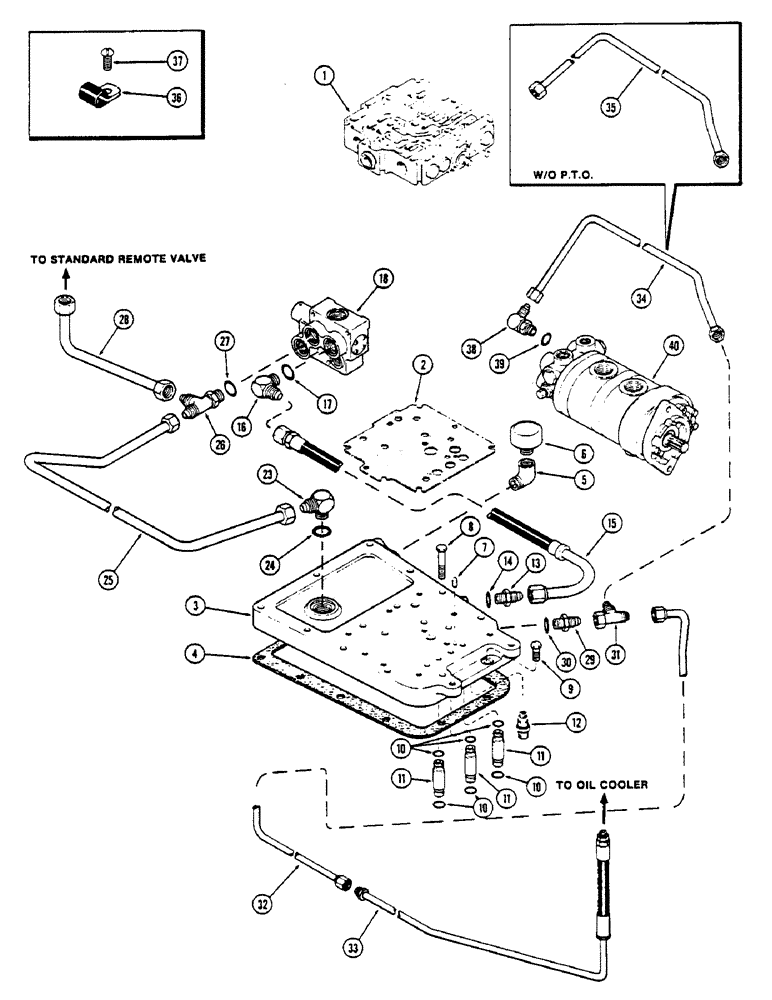

Запчасти Case IH 2670 (286) - TRANSMISSION TOP COVER AND LINES, TRANSMISSION TOP COVER AND LINES, USED BEFORE TRANS. S/N 10025257 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSY. - trans. control (See Figure 288)

1шт.

2

A66735

GASKET

- valve to trans. top cover

1шт.

3

A75178

COVER

- transmission, top

1шт.

4

A62114

GASKET,0.79mm Thk

- trans. top, Serial Range: cover-trans.

1шт.

5

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street 90º, 3/4"-14, NPT

1шт.

6

A75179

BREATHER

VENT - breather, trans. top cover

1шт.

7

D24005

PIN

- dowel, trans. cover valve body

1шт.

8

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex, grade 5

10шт.

9

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

10

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- oil distributor tube (Included in A42886 kit - See page 126)

6шт.

11

A76120

TUBE

- oil distributor

3шт.

12

A60890

VALVE

ASSY. - relief, lube oil (See Figure 340)

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight, 3/4" O.D. x 1-1/16"-12, Incl. Ref. 14

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

15

A77019

HOSE

- pressure regulator valve to trans. top cover

1шт.

16

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, Assy, adjustable, Incl. Ref. 17

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

18

REF

INSTRUCTION

VALVE ASSY. - pressure regulator (See Figure 340)

1шт.

23

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Assy, Includes: Ref. 24 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

25

A135649

TUBE

- pressure regulator valve to trans. cover

1шт.

26

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY. - adjustable, Includes: Ref. 27

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17 MM)

1шт.

28

A77017

TUBE

- return, press. reg. valve to standard remote valve

1шт.

29

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - straight (1/2" O.D. x 3/4-16), Incl. Ref 30

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8" (19.05 x 23.41 x 3.17)

1шт.

31

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1/2" tube O.D. 37º, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

32

A77040

TUBE

- oil cooler return

1шт.

33

A77041

HOSE

- oil cooler return

1шт.

34

A77037

TUBE

- relief valve drain (Used with P.T.O. and with or without rear steer)

1шт.

35

A77036

TUBE

- relief valve drain (Without P.T.O. and with or without rear steer)

1шт.

36

49838

CLAMP

- 1/2" tube O.D.

2шт.

37

187-1304

SELF-TAP SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

SCREW - 3/8-16 x 3/4" self tap

1шт.

38

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 90 degree adjustable, Includes: Ref. 39

1шт.

40

REF

INSTRUCTION

PUMP ASSY. - hydraulic (See Figure 334)

1шт.

39

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32" (12.7 x 16.66 x 2.38 MM)

1шт.
