(282) - TRANSMISSION CONTROL VALVE AND LINES, WITH AND WITHOUT P.T.O.

Запчасти Case IH 2670 (282) - TRANSMISSION CONTROL VALVE AND LINES, WITH AND WITHOUT P.T.O. (08) - HYDRAULICS

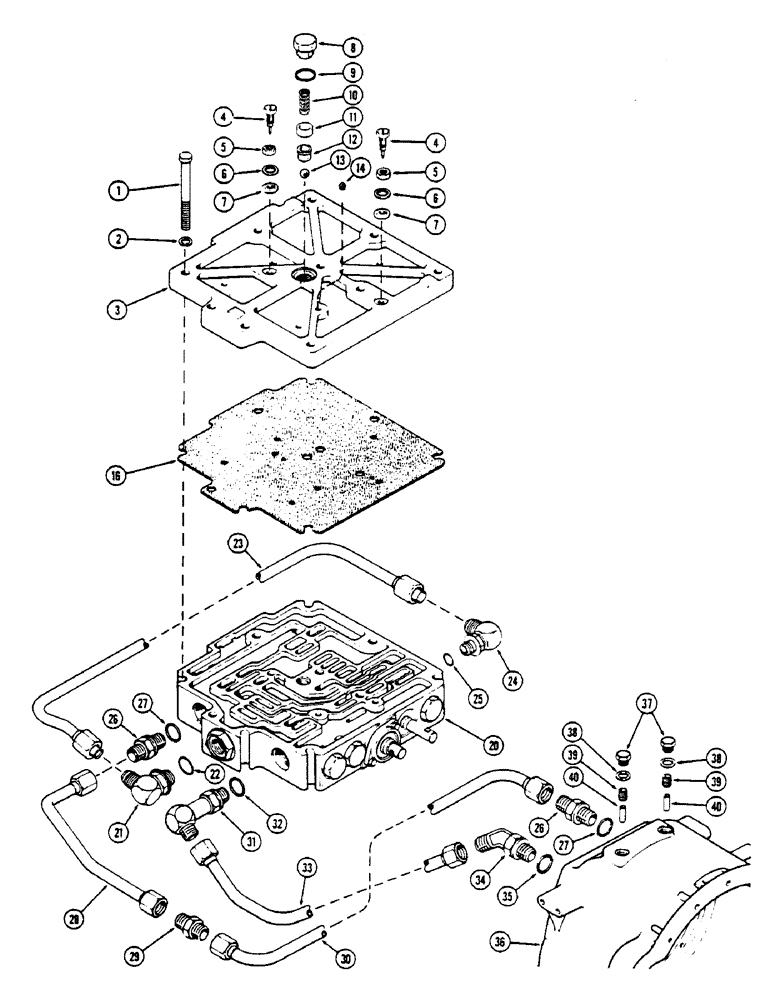

Схема запчастей Case IH 2670 - (282) - TRANSMISSION CONTROL VALVE AND LINES, WITH AND WITHOUT P.T.O. (08) - HYDRAULICS
29
16
7
36
11
7
31
33
20
4
37
22
5
40
27
25
1
39
24
30
4
40
2
38
6
28
32
39
34
27
38
6
3
9
12
21
26
8
13
23
5
14
35
26
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex, grade 5

10шт.

2

92-6

LOCK WASHER,3/8"

10шт.

3

A64321

COVER

- trans. control valve

1шт.

4

A136916

NEEDLE

- retard orifice (Replaces A59073)

2шт.

5

25-154

JAM NUT,Jam, 1/4"-28, G5

- (1/4" N.F. hex, jam)

2шт.

6

122-13

GROMMET

BURR - 1/4" steel riveting

2шт.

7

A59074

SEAL

- thread

2шт.

8

A62588

PLUG

- detent

1шт.

10

A61696

SPRING

- detent ball

1шт.

11

A62107

SPACER

- detent

1шт.

12

A59062

SLEEVE

- detent

1шт.

13

211-12

BALL,7/16 Dia

- 7/16" dia. (11.11 MM)

1шт.

14

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe (1/8" sq. hd.)

5шт.

16

A66734

GASKET

- valve to valve cover

1шт.

20

A148160

VALVE

ASSY. - transmission control (1st used trans. ser. no. 10064489) (See Figure 288)

1шт.

20

A66707

VALVE

ASSY. - trans. control (Used before ser. no. 10064489) (See Figure 290)

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 1/2" tube x 3/4"-16 thrd., 90 degree adjustment, Includes: Ref. 22

1шт.

23

A63294

TUBE

- pilot, reverse lock-out

1шт.

24

A63295

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18 O-Ring

ASSY. - 1/2" tube x 9/16"-18 thrd., 90 degree adjustment, Includes: Ref. 25

1шт.

25

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.90 x 9.52 x 1.98 mm)

1шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - straight, Incl. Ref 27

2шт.

28

A75325

TUBE

- trans. control valve to clutch hsg

1шт.

29

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- tube (1/2" tube O.D.)

1шт.

30

A75325

TUBE

- trans. control valve to clutch hsg

1шт.

31

A62102

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16 O-Ring, Long

ASSY. - 90 degree (1/2" tube O.D.), Includes: Ref. 32

1шт.

33

A75996

TUBE

- trans. control valve to clutch hsg.

1шт.

34

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 45 degree adj., Incl. Ref 35

1шт.

36

REF

INSTRUCTION

HOUSING - clutch (See Figure 190)

1шт.

37

214389

PLUG,3/4" - 16 ORB

Assy, Includes Ref. 38 Hex Hd, 3/4"-16 ORB

2шт.

38

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- 1/2 x 11/16 x 3/32" (12.7 x 17.41 x 2.38 MM)

1шт.

39

A58050

PLUG

- (C-1) and (C-4) clutch oil fill tube

2шт.

40

A58049

TUBE

- (C-1) and (C-4) clutch oil fill

2шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.87 x 1.58 MM)

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.87 x 1.58 MM)

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.87 x 1.58 MM)

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.87 x 1.58 MM)

1шт.

35

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 5/8 x 1/16" (12.7 x 15.87 x 1.58 MM)

1шт.
