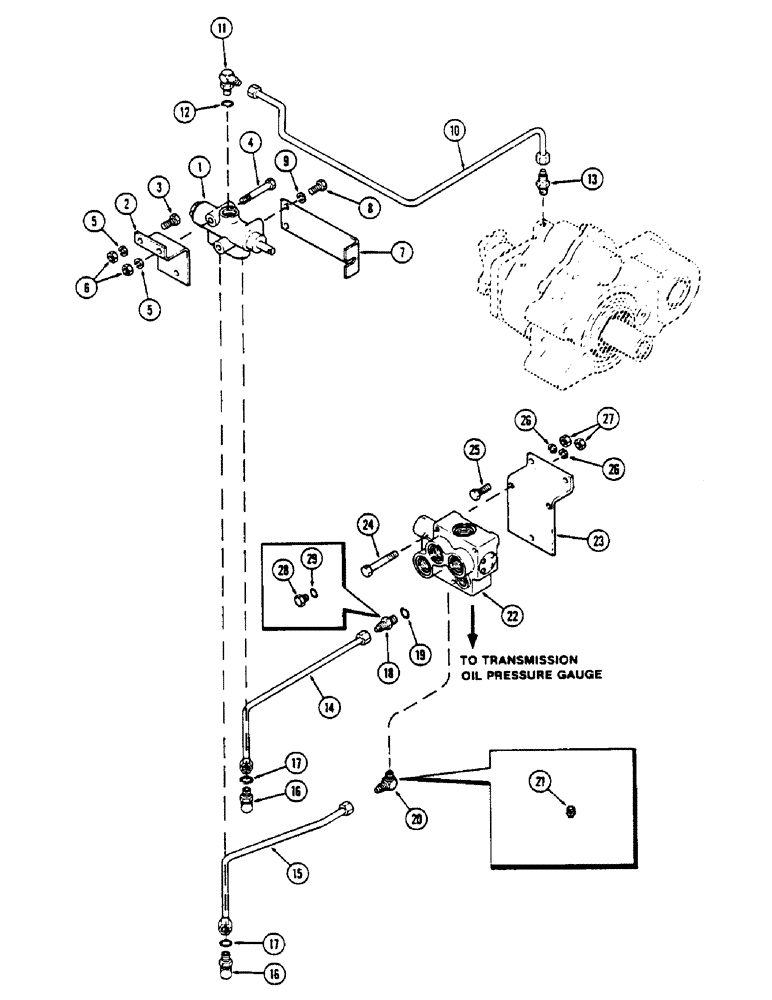

Запчасти Case IH 2670 (270) - P.T.O. HYDRAULICS, P.T.O. CONTROL AND PRESSURE REGULATOR VALVES (08) - HYDRAULICS

1

A76250

VALVE

ASSY. - P.T.O. control (See Figure 278)

1шт.

2

A77005

BRACKET

- mtg., P.T.O. control valve

1шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Bracket to side plate) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

4

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

Valve to mtg. bracket Hex, 3/8"-16 x 2 3/4", G5

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

7

A75979

BRACKET

- P.T.O. control cable

1шт.

8

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

10

A76974

TUBE

- P.T.O., Serial Range: valve-P.T.O.

1шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY. - 90 degree adjustable, Includes: Ref. 12

1шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.90 x 9.52 x 1.98 mm)

1шт.

13

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight

1шт.

14

A77020

TUBE

- pressure, P.T.O. valve to pressure regulator valve

1шт.

15

A77021

TUBE

- return, pressure regulator valve to P.T.O. valve

1шт.

16

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY. - 90 degree adjustable, Includes: Ref. 17

2шт.

17

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.90 x 9.52 x 1.98 mm)

1шт.

18

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSY. - straight, Incl. Ref. 19

1шт.

20

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degrees (Used with P.T.O.)

1шт.

21

221-849

PLUG,Hex Soc, 1/8"-27

- pipe (1/8" hex socket) (Used without P.T.O.)

1шт.

22

A76991

VALVE

ASSY. - pressure regulator (See Figure 340)

1шт.

23

A76994

BRACKET

- mounting, pressure regulator valve

1шт.

24

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Valve to bracket Hex, 3/8"-16 x 3", G5

3шт.

25

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

28

76349

PLUG,9/16" - 18 ORB

Assy (Used without PTO), Incl. Ref. 29 Hex Hd, 9/16"-18 ORB

1шт.

29

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk (11.90 x 9.52 x 1.98 mm)

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 5/64" (16.27 x 20.63 x 1.98 MM)

1шт.
