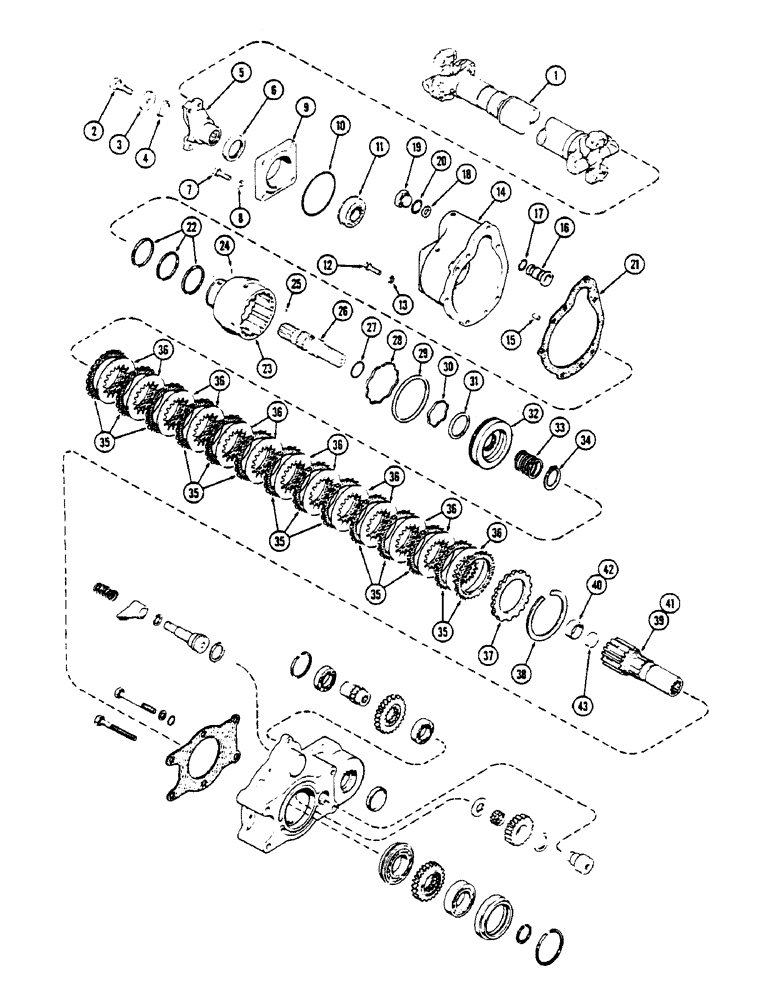

Запчасти Case IH 2670 (262) - P.T.O. INPUT AND OUTPUT SHAFTS AND CLUTCH (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A148811
SHAFT
ASSY. - P.T.O. drive (Replaces A76564) (See Figure 280)
1шт.
2
113-2405
SCREW
BOLT - output shaft yoke, 1/2 x 2" N.C. hex with Jaylock, grade 5
1шт.
3
A75206
WASHER,13.5mm ID x 50.8mm OD x 9.53mm Thk
- P.T.O. clutch output shaft yoke (17/32 x 2 x 3/8")
1шт.
4
A75205
SEALING WASHER
- P.T.O. clutch output shaft yoke, 1-13/32 x 1-39/64 x 19/64" (35.71 x 40.87 x 7.54 MM)
1шт.
5
A76560
YOKE
- P.T.O clutch output shaft
1шт.
6
A76014
OIL SEAL
- oil, P.T.O. housing cap, 2-1/8 x 2-7/8 x 7/16" (53.97 x 73.02 x 11.11 MM)
1шт.
7
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- 3/8 x 1-1/2" N.C. hex, grade 5
4шт.
8
92-6
LOCK WASHER,3/8"
4шт.
9
A75203
CAP
- P.T.O. clutch housing
1шт.
10
A23316
O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro
- sealing, P.T.O. clutch hsg. cap, 4-1/2 x 4-3/4 x 1/8" (114.3 x 120.65 x 3.17 MM)
1шт.
11
G13606
BALL BEARING
BEARING - P.T.O. clutch output shaft
1шт.
12
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- 3/8 x 1-1/2" N.C. hex, grade 5
6шт.
13
92-6
LOCK WASHER,3/8"
6шт.
14
A76398
HOUSING
- P.T.O. clutch
1шт.
15
A8134
PIN
DOWEL - P.T.O. clutch (3/8 x 3/4")
2шт.
16
A76399
SLEEVE
- P.T.O. brake piston
1шт.
17
A25590
O-RING,15" ID x 1 1" OD x 3/32"
- 1-1/8 x 15/16 x 3/32" (28.58 x 23.81 x 2.38 MM)
1шт.
18
A64303
WASHER
SHIM - adjusting, 1-1/16 x 41/64 x 1/16" (26.98 x 16.27 x 1.58 MM)
1шт.
19
218-5159
PLUG,1-3/16" - 12 ORB
ASSY. - 7/8" tube O.D. (22.23 MM), Includes: Ref. 20
1шт.
20
218-5009
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
- 1-3/64 x 1-9/32 x 1/8" (26.59 x 32.54 x 3.17 MM)
1шт.
21
A75196
GASKET
- P.T.O. clutch housings
1шт.
22
A58384
RING
- seal, P.T.O. clutch carrier, 3-3/16" O.D. x 3/32" wide (80.96 x 2.38 MM)
3шт.
23
A77219
CARRIER
ASSY. - P.T.O. clutch piston, Includes: Ref. 24 and 25
1шт.
24
138-2044
PIN,1/16" x 1/2", Coiled
- roll (1/16 x 1/2" Spirol)
1шт.
25
211-6
BALL,7/32" Dia
steel (5.56 mm) 7/32" Dia
1шт.
26
A136298
SHAFT
- P.T.O. output
1шт.
27
L13008
O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro
- P.T.O. clutch carrier, 1-5/8 x 1-7/8 x 1/8" (41.27 x 47.62 x 3.17 MM)
1шт.
28
A59012
SPRING
- P.T.O. clutch piston seal
1шт.
29
A59011
RING
SEAL - P.T.O. clutch piston, external, 4-3/4" O.D. (119.21 MM)
1шт.
30
A63259
SPRING
- P.T.O. clutch piston seal
1шт.
31
A63258
SEAL
- P.T.O. clutch piston, internal
1шт.
32
A63257
PISTON
- P.T.O. clutch
1шт.
33
A63260
SPRING
- return, P.T.O. clutch piston, 1-3/4" free length (44.45 MM)
1шт.
34
T37909
SNAP RING,#150, Ext
Ring, Snap, , P.T.O. clutch piston return spring #150, Ext
1шт.
35
A66364
PLATE
- sintered, P.T.O. clutch
14шт.
36
A66365
PLATE
P.T.O. clutch
13шт.
37
A63261
PLATE
- back-up, P.T.O. clutch plate
1шт.
38
A63262
RING
- snap, P.T.O. clutch back-up plate
1шт.
39
A140190
SHAFT
- input, pump drive and P.T.O. (1st used trans. ser. no. 2470721)
1шт.
40
A138866
BUSHING
- shaft, 1-21/32" O.D. x 1" wide (42.06 x 25.4 MM) (1st used trans. ser. no. 2470721)
1шт.
41
A76214
SHAFT
- input, pump drive and P.T.O. (Used before trans. ser. no. 2470721) (Order A140190 and A138866)
1шт.
42
A76016
BUSHING
- shaft, 1-31/32" O.D. x 3/4" wide (42.06 x 19.05 MM) (Used before trans. ser. no. 2470721) (Order A140190 and A138866)
1шт.
