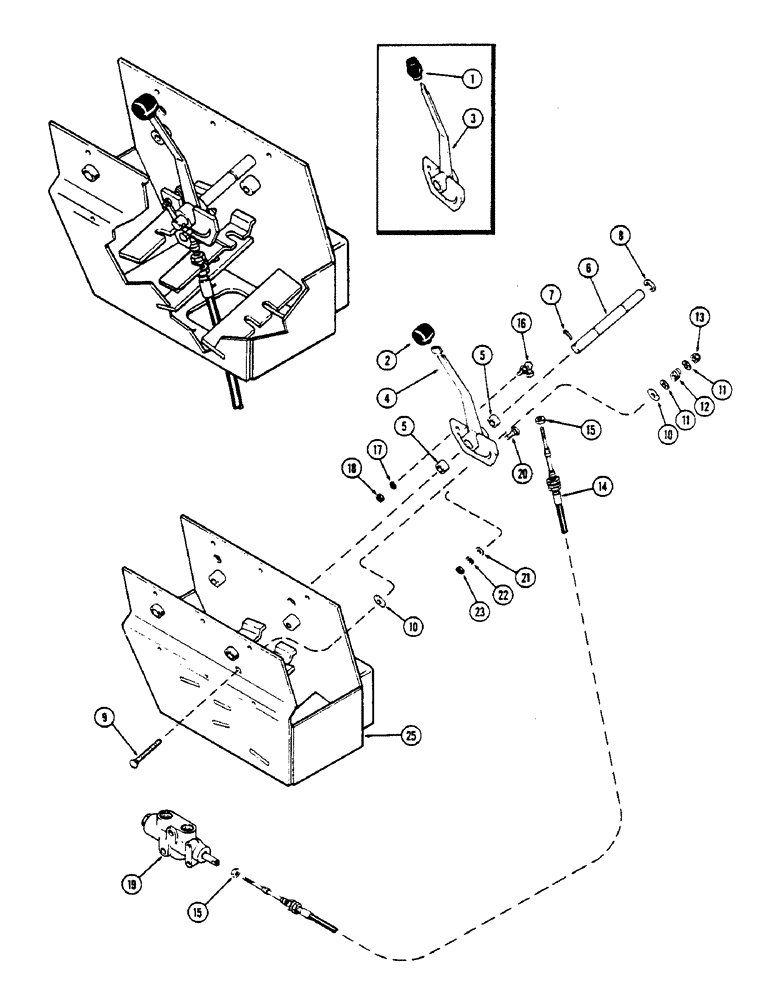

Запчасти Case IH 2670 (260) - P.T.O. CONTROL LINKAGE (08) - HYDRAULICS

1

A65699

KNOB

- lever (Plastic) (Order A137806)

1шт.

2

A137806

KNOB

- lever (Rubber)

1шт.

3

A75906

LEVER

ASSY. - P.T.O. (With threaded top) (Order ref. 2 and 4)

1шт.

4

A137851

LEVER

ASSY. - P.T.O. (Replaces A75906), Includes: Ref. 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

6

A75736

SHAFT

- console lever

1шт.

7

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

8

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, , shaft #62, .480" Dia, E-Type

1шт.

9

111-327

CARRIAGE BOLT,Short NK, 3/8"-16 x 3", G2

BOLT - (3/8 x 3" N.C. round hd. sq. neck)

1шт.

10

A61069

DISC

WASHER - friction (25/64 x 1-1/4 x 1/8")

2шт.

11

195-104

WASHER,3/8"

- flat (7/16 x 1 x 5/64")

2шт.

12

A75454

SPRING

- brake, 1" free length (25.4 MM)

1шт.

13

131-94

LOCK NUT,3/8"-16, GB

NUT - lock (3/8" N.C. hex)

1шт.

14

A145340

CABLE

- P.T.O. 64" long (1625.6 MM) (Replaces A76410)

1шт.

15

129-37

NUT,#10-32

2шт.

16

A75447

BALL JOINT

- (#10-32 N.F.)

1шт.

17

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

18

129-37

NUT,#10-32

1шт.

19

A76250

VALVE

ASSY. - P.T.O. control (See Figure 278)

1шт.

20

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

21

195-525

WASHER,3/8", SAE

- flat (13/32 x 13/16 x 5/64")

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

25

REF

INSTRUCTION

CONSOLE - operator's (See Figures 426 and 428)

1шт.
