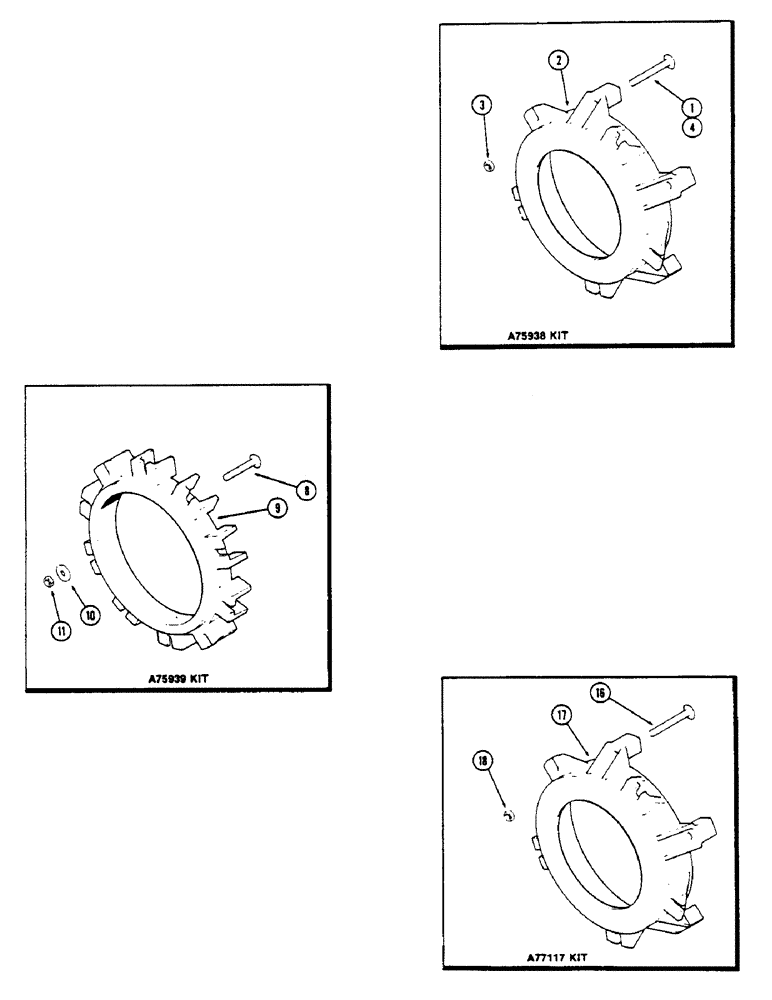

Запчасти Case IH 2670 (254) - WHEEL ADAPTER AND WEIGHTS (06) - POWER TRAIN

A75938

KIT - wheel weight, 1st set (Set of 2) (With 30 or 34" wheels) (Mach. item), Includes: Ref. 1 - 3

1шт.

1

117-607

BOLT,Sq Hd, 3/4" - 10 x 6", Gr 5

- 3/4 x 6" N.C. sq. hd., grade 5 (With 34" wheels) (See ref. 4)

10шт.

2

A75549

ADAPTER - wheel weight (100 lbs. each)

2шт.

3

129-108

NUT,3/4"-10, G5

10шт.

4

117-610

BOLT - 3/4 x 8" N.C. sq. hd., grade 5 (Order separately for use with 30" wheel) Sq Hd, 3/4"-10 x 8", G5

10шт.

A75939

KIT - wheel weight, add on set (Set of 2) (Mach. item), Includes: Ref. 8 - 11

1шт.

8

117-606

BOLT,Sq Hd, 3/4" - 10 x 4-1/2", Gr 5

- 3/4 x 4-1/2" N.C. sq. hd., grade 5

10шт.

9

A75550

WEIGHT - wheel (100 lbs. each) (Set of 2)

2шт.

10

195-109

WASHER,3/4"

- 13/16 x 2 x 3/16"

10шт.

11

129-108

NUT,3/4"-10, G5

10шт.

A77117

ADAPTER KIT - wheel weight (Use with 32" wheels) (Set of 2) (Mach. item), Includes: Ref. 16 - 18

1шт.

16

117-610

BOLT - 3/4 x 8" N.C. sq. hd., grade 5 Sq Hd, 3/4"-10 x 8", G5

10шт.

17

A75549

ADAPTER - wheel wight (100 lbs. each) (Set of 2)

2шт.

18

129-108

NUT,3/4"-10, G5

10шт.
