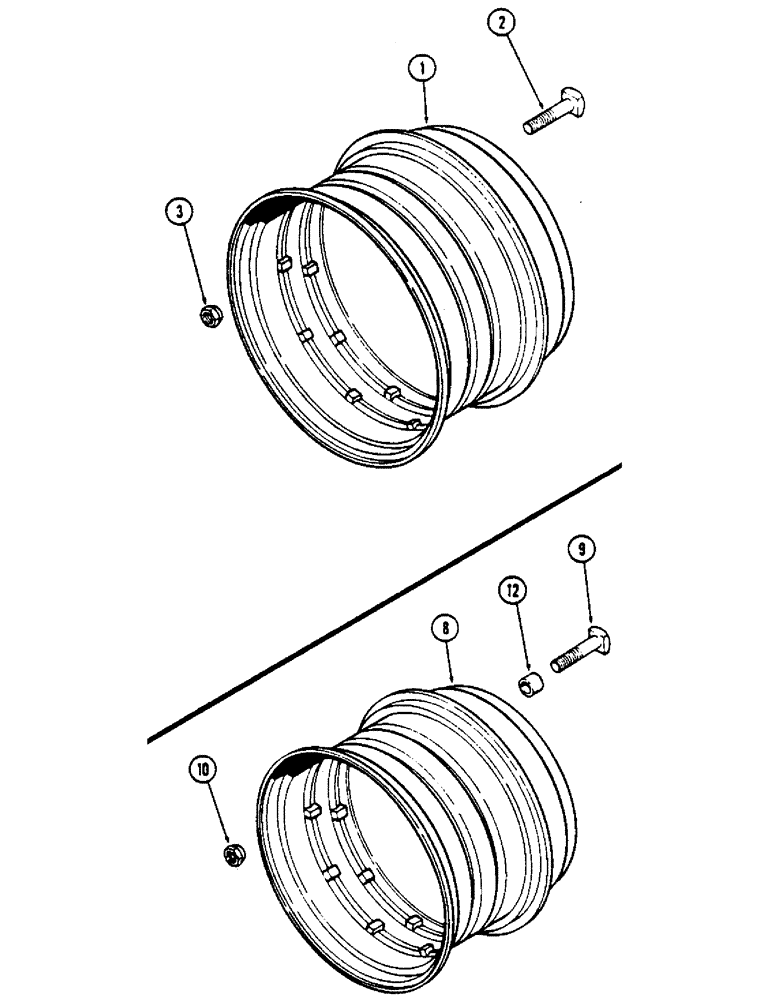

Запчасти Case IH 2670 (252) - DUAL WHEELS (06) - POWER TRAIN

1

A138394

RIM

- outer dual wheel (Takes 18.4-34 tire)

4шт.

2

117-614

SQUARE BOLT,3/4" - 10 x 4", Gr 5

- 3/4 x 4" N.C. sq. hd.

40шт.

3

A141621

NUT

- 3/4" N.C. hex, 90 degree seat

40шт.

8

A76433

WHEEL

RIM - outer dual wheel (Takes 20.8-34 tire)

4шт.

9

117-615

SQUARE BOLT,3/4" - 10 x 5 1/4", Gr 5

- 3/4 x 5-1/4" N.C. sq. hd., grade 5

40шт.

10

A141621

NUT

- 3/4" N.C. hex, 90 degree seat

40шт.

12

A76434

SPACER

- dual wheel mounting

40шт.
