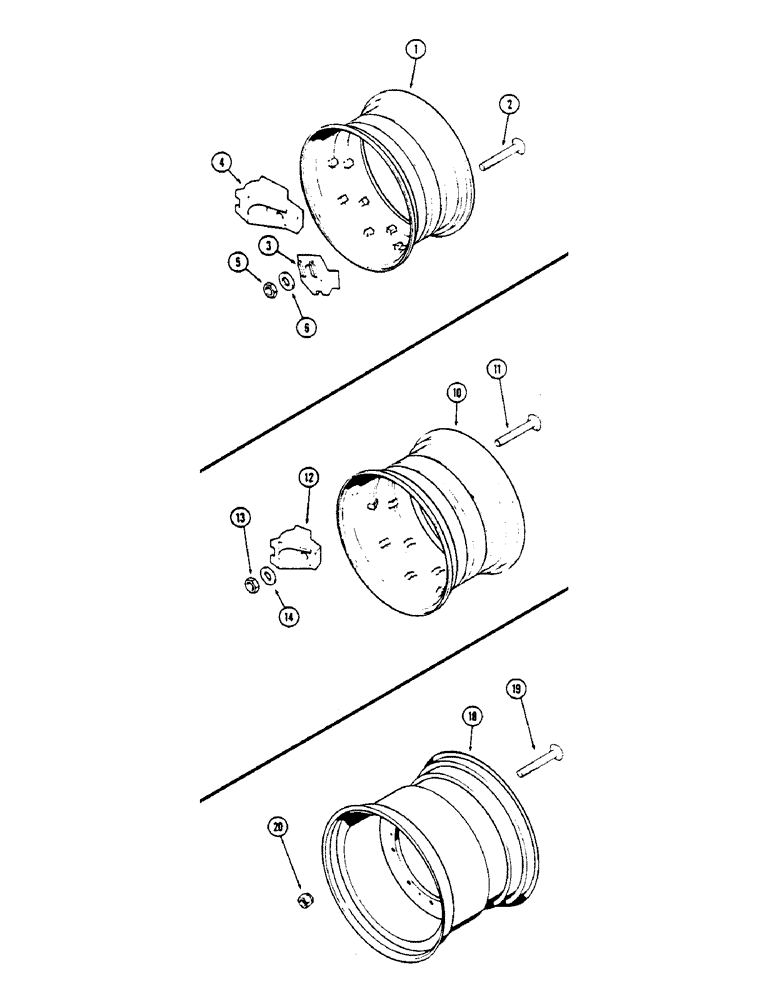

Запчасти Case IH 2670 (250) - SINGLE WHEELS AND CLAMPS (06) - POWER TRAIN

1

A75887

WHEEL

RIM - wheel (Takes 18.4-34 tire)

4шт.

1

A75891

RIM

- wheel (Takes 20.8-34 tire)

4шт.

2

117-615

SQUARE BOLT,3/4" - 10 x 5 1/4", Gr 5

- 3/4 x 5-1/4" N.C. sq. hd., grade 5

40шт.

3

A75893

CLAMP

- rim, single position (For 18.4-34 and 20.8-34 wheel)

40шт.

4

A139724

CLAMP

- rim, double position (For 18.4-34 and 20.8-34 wheel) (Replaces A75895)

40шт.

5

129-137

NUT,3/4"-10, G5

40шт.

6

A141125

WASHER

- 25/32 x 1-1/4 x 3/16"

40шт.

10

A75890

RIM

- wheel (Takes 23.1-30 tire)

4шт.

11

117-615

SQUARE BOLT,3/4" - 10 x 5 1/4", Gr 5

- 3/4 x 5-1/4" N.C. sq. hd., grade 5

40шт.

12

A75894

CLAMP

- rim, double position (For 23.1-30 wheel)

40шт.

13

129-137

NUT,3/4"-10, G5

40шт.

14

A141125

WASHER

- (25/32 x 1-1/4 x 3/16")

40шт.

18

A148139

WHEEL

RIM - wheel (Used PIN 8828114 and after)

4шт.

18

A77115

NO LONGER SERVICED

RIM - wheel (Takes 24.5-32 tire)

4шт.

18

A77116

RIM - wheel (For 30.5-32 tire) (Used before PIN 8828114)

4шт.

19

117-611

SQUARE BOLT,3/4" - 10 x 3 3/4", Gr 5

- 3/4 x 3-3/4" N.C. sq. hd., grade 5

40шт.

20

A141621

NUT

- 3/4" N.C. hex, 90 degree seat (Replaces A76432)

40шт.
