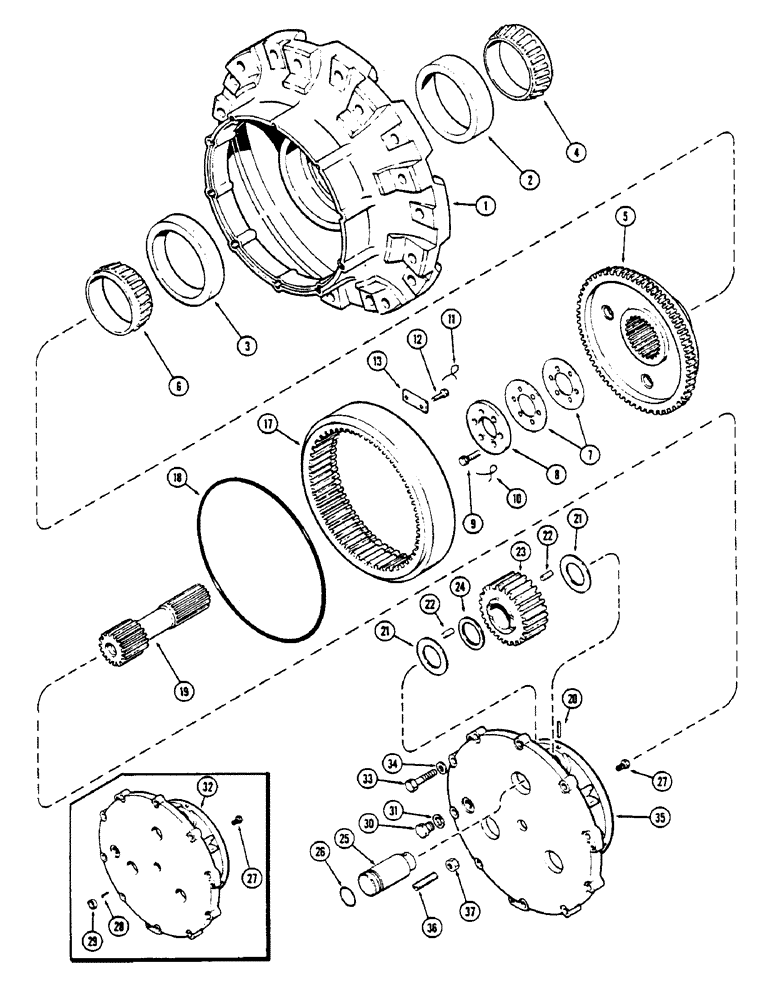

Запчасти Case IH 2670 (246) - REAR AXLE PLANETARY, COMMON TO REAR RIGID AND REAR HYDRAULIC STEER (06) - POWER TRAIN

1

A151255

HUB

ASSEMBLY - wheel drive (Replaces A139982 and A77101), Includes: Ref. 2 and 3

2шт.

2

L31698

BEARING CUP

CUP - inner bearing (7-3/16" O.D. x 1-15/16" wide) (182.56 x 49.21 MM)

1шт.

3

A75262

CUP

- outer bearing (7-3/4" O.D. x 1-13/16" wide) (196.85 x 46.04 MM)

1шт.

4

L31699

TAPERED BEARING

CONE - bearing (5" I.D. x 1-1/2" width) (See Figures 240 and 244)

2шт.

5

A76461

HOLDER

ASSEMBLY - planetary ring gear, Includes: Ref. 6

2шт.

6

A75263

CONE

- bearing (5" I.D. x 1-13/16" width)

1шт.

7

A75264

SHIM,.003" Thk

Wheel hub brg. (.0762 mm) .003" Thk

1шт.

7

A75265

SHIM,.007" Thk

Wheel hub brg. (0.1778 mm) .007" Thk

1шт.

7

A75266

SHIM,.020" Thk

Wheel hub brg. (.5080 mm) .020" Thk

1шт.

8

A75267

CAP

- retainer, wheel hub bearing and holder

2шт.

9

A75268

BOLT

- (3/8 x 1-1/4" N.C. hex head) (Drilled)

12шт.

10

391-629

ELECTRICAL WIRE

WIRE - safety (#16 x 24")

2шт.

11

391-675

WIRE - safety (#17 x 6")

12шт.

12

46945

SCREW

BOLT - (3/8 x 1" N.C. hex head) (Drilled)

24шт.

13

A153458

RETAINER

- planetary ring gear (Replaces A7527 and A77291)

12шт.

17

A76019

GEAR

- ring, planetary (Replaces A76587)

2шт.

B17428

LOCTITE

ELIMINATOR - gasket (Used in production - order A63230)

1шт.

18

A63230

SEAL,393.7mm ID x 403.86mm OD x 6.73mm Thk

- planetary carrier to wheel hub

2шт.

19

A76594

SHAFT

- planet sun gear

2шт.

20

138-2033

PIN,6.35mm OD x 34.92mm L, Coiled

6шт.

21

A63228

WASHER

- planet gear needle roller bearing

12шт.

22

A46420

ROLLER BEARING

ROLLER KIT - needle bearings (Set of 38)

6шт.

23

A76020

GEAR

- planet

6шт.

24

A63227

SPACER

- planet gear needle roller bearing

6шт.

25

A76344

PIN,40.31mm OD x 122.17mm L

- planet gear

6шт.

26

A7560

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

- planet gear pin

6шт.

27

A75277

ADJUSTMENT SCREW

- adjusting, planet sun gear shaft (Used before axle serial no. 10116209)

2шт.

28

A75278

PIN

- adjusting bolt lock (Used before axle serial no. 10116209)

2шт.

29

41-1016

PLUG,Cup, 1"

- cup (1") planetary carrier (Used before axle serial no. 10116209)

2шт.

30

A140222

PLUG

- planetary fill and drain (Replaces A142807)

2шт.

31

A51759

GASKET

- planetary fill and drain plug

2шт.

32

A76589

CARRIER

- planetary

2шт.

33

26-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 8

- 1/2 x 1-7/8" N.C. hex, grade 8

20шт.

34

L30674

WASHER

- (17/32 x 1 x 1/8")

20шт.

35

A153253

CARRIER

- planetary (First used axle serial no. 10116209)

2шт.

36

A153621

STUD

- sun gear shaft adjusting (First used axle serial no. 10116209)

2шт.

37

25-1512

JAM NUT,Jam, 3/4"-10, G5

- 3/4" NF hex jam (First used axle serial no. 10116209)

2шт.
