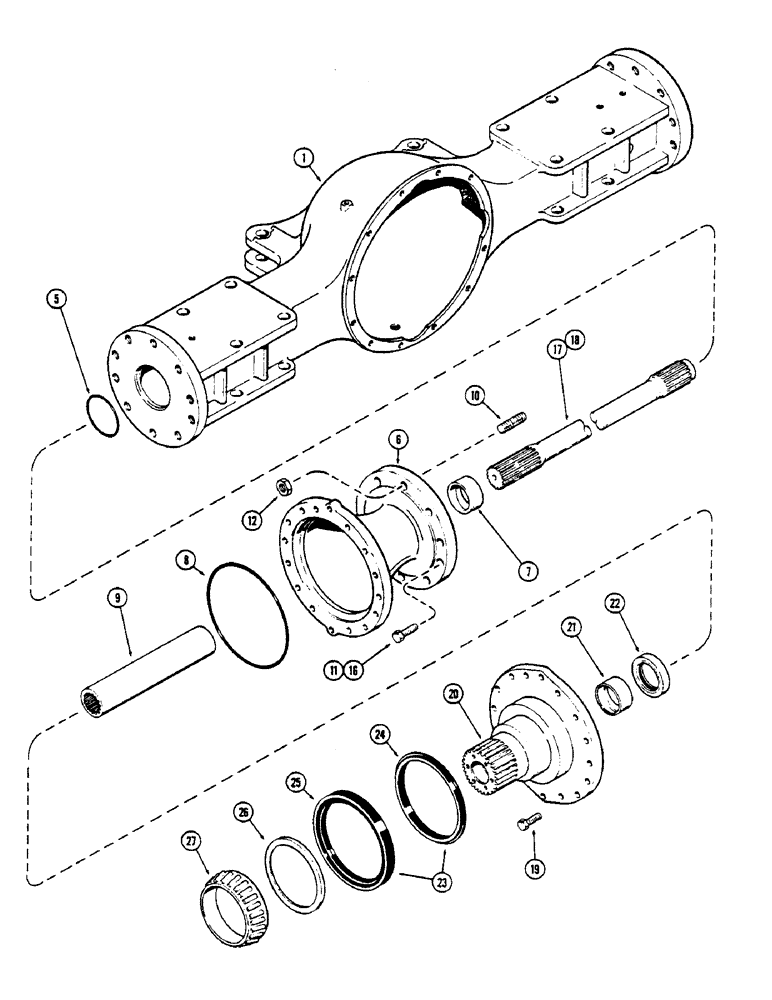

Запчасти Case IH 2670 (244) - REAR AXLE AND WHEEL SPINDLE, RIGID REAR (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING - axle, differential (See Figure 232)

1шт.

5

A21301

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

- extension hsg. to diff. hsg. (3-5/8 x 3-7/8 x 1/8")

2шт.

6

A75237

HOUSING

ASSY. - axle extension, Includes: Ref. 7

2шт.

7

A75234

BUSHING

- axle coupling

1шт.

8

A75474

O-RING,0.139" Thk x 9.484" ID, -272, Cl 5, 75 Duro

- extension hsg. to axle spindle

2шт.

9

A75241

COUPLING

- axle drive

2шт.

10

A77281

STUD

- mounting, axle trunnion 3/4" N.C. x 2-7/8"

2шт.

11

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- 3/4 x 2-3/4" N.C. hex

2шт.

12

25-1612

NUT,3/4"-10, G5, Hvy

- (3/4" N.C. hex)

2шт.

16

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

16шт.

17

A75243

SHAFT

- axle drive, short (28-5/8") (727.08 MM)

1шт.

18

A75242

SHAFT

- axle drive, long (32-1/2") (825.5 MM)

1шт.

19

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

32шт.

19

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

32шт.

A150703

SPINDLE

ASSY. - wheel (Replaces A75254) (See Figures 174 and 240) (Order A152503), Includes: Ref. 20 - 27

2шт.

20

NSS

NOT SOLD SEPARAT

SPINDLE - wheel

1шт.

21

A75234

BUSHING

- yoke universal joint

1шт.

22

A153036

OIL SEAL

- oil, axle (Replaces A75233)

1шт.

23

A76272

OIL SEAL,174.22mm ID x 219.53mm OD x 20.95mm Thk

ASSY. - oil, wheel spindle, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - oil, inner half

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - oil, outer half

1шт.

26

A75256

RING

- back-up, wheel spindle bearing

1шт.

27

L31699

TAPERED BEARING

CONE - bearing, wheel spindle

1шт.
