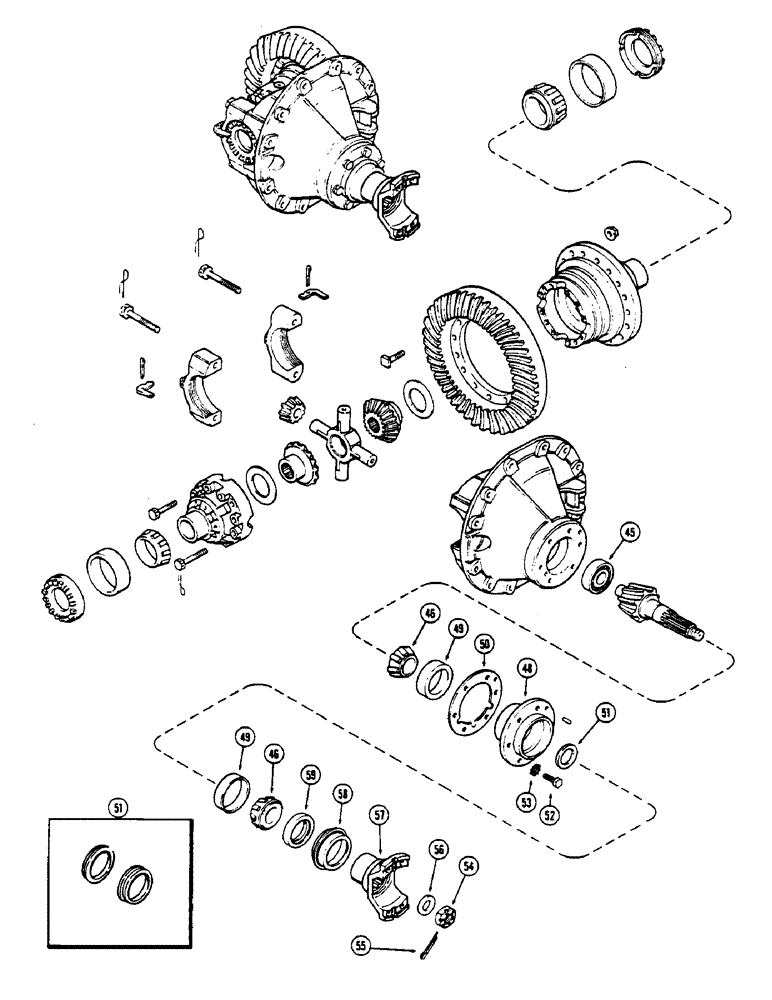

Запчасти Case IH 2670 (238) - REAR AXLE DIFFERENTIAL CARRIER ASSEMBLY (CONT) (06) - POWER TRAIN

A153462

DIFFERENTIAL

CARRIER ASSY. - diff., rear axle (Cont'd from Figure 236), Includes: Ref. 45 - 59 and Ref. 1 - 41 on Figure 236

1шт.

45

L33062

ROLLER BEARING

BEARING - roller, diff. pinion spigot

1шт.

46

A44210

ROLLER BEARING,1.75" ID x 1.25"

CONE - bearing, diff. pinion, 1-3/4" I.D. (44.45 MM)

2шт.

A44230

CAGE ASSY.,4.250" OD

- pinion, Includes: Ref. 48 and 49

1шт.

48

NSS

NOT SOLD SEPARAT

CAGE - pinion bearing carrier (Order A44230)

1шт.

49

F61284

BEARING CUP

CUP - bearing, pinion bearing cage, 3-3/4" O.D. (95.25 MM)

2шт.

50

A44232

SHIM,.003" Thk

Pinion bearing cage (.0762 mm) .003" Thk

1шт.

50

A44233

SHIM,.005" Thk

Pinion bearing cage (0.127 mm) .005" Thk

1шт.

50

NSS

NOT SOLD SEPARAT

SHIM - pinion bearing cage (0.010") (0.254 MM)

1шт.

50

A44235

SHIM,.020" Thk

Pinion bearing cage (0.508 mm) .020" Thk

1шт.

50

NSS

NOT SOLD SEPARAT

SHIM - pinion bearing cage (0.030") (0.762 MM0

1шт.

51

A45587

BUSHING

SPACER - pinion shaft (0.514") (13.05 MM) (Replaces A44243)

1шт.

51

A45588

BUSHING

SPACER - pinion shaft (0.522") (13.25 MM) (Replaces A44244)

1шт.

51

A45589

BUSHING

SPACER - pinion shaft (0.530") (13.46 MM) (Replaces A44245)

1шт.

51

A45590

BUSHING

SPACER - pinion shaft (0.538") (13.66 MM) (Replaces A44246)

1шт.

51

A45591

BUSHING

SPACER - pinion shaft (0.542") (13.77 MM) (Replaces A44247)

1шт.

52

A44212

BOLT

- pinion bearing, Serial Range: carrier-cage

6шт.

53

193-33

LOCK WASHER,9/16"

WASHER - lock ( ext. teeth Shakeproof) (With 132-56 replaces A44211) 9/16"

6шт.

54

A45567

NUT

- drive pinion shaft end to flange (Used with A44211 nut)

1шт.

56

A44209

WASHER

- drive pinion shaft, Serial Range: end-flange

1шт.

57

258376A1

YOKE

7", axle drive shaft (replaces A44700)

1шт.

Also needs a 253988A1 washer, and a 258056A1 bearing if you order the new pinion kit (253863A1)

1шт.

A44218

SEAL

CAGE ASSY. - pinion shaft to carrier, Includes: Ref. 58

1шт.

58

NSS

NOT SOLD SEPARAT

RETAINER - seal cage (Order A44218)

1шт.

59

NSS

NOT SOLD SEPARAT

SEAL - oil, pinion shaft to carrier (Order A44218)

1шт.

55

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

55

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), (Used with A45567 nut) 1/8" x 2"

1шт.
