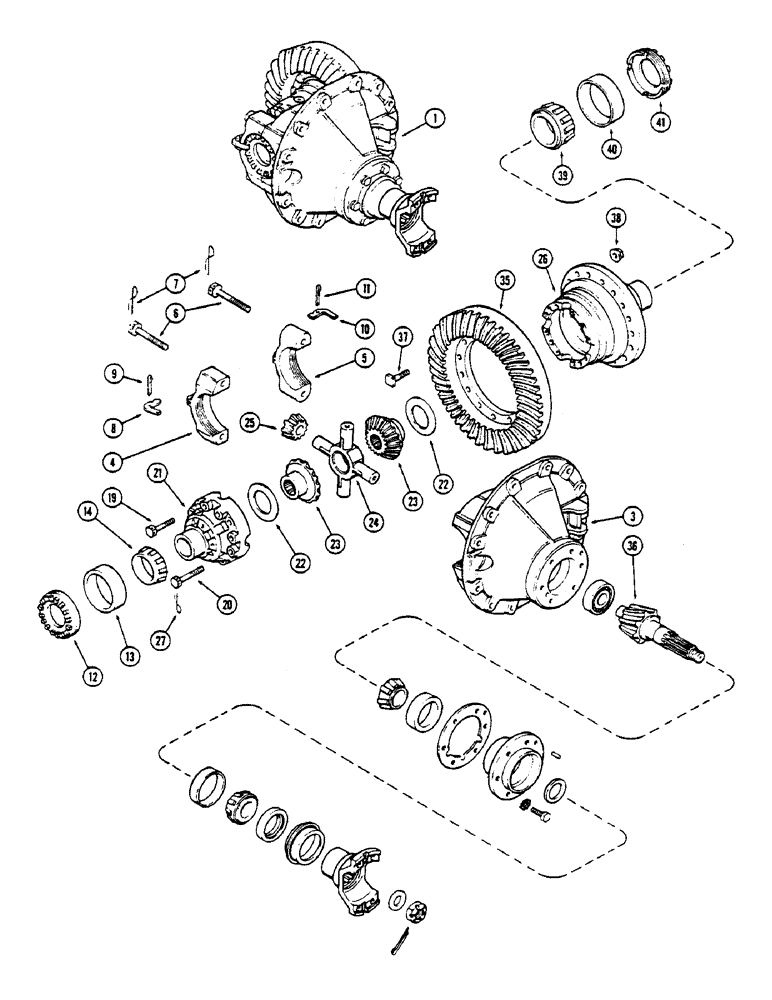

Запчасти Case IH 2670 (236) - REAR AXLE DIFFERENTIAL CARRIER ASSEMBLY (06) - POWER TRAIN

1

A153462

DIFFERENTIAL

CARRIER ASSY. - differential, rear axle (Replaces A140048), Includes: Ref. 1 - 41 and Ref. 45 - 59 on Figure 238

1шт.

A44224

CARRIER

U-CARRIER ASSY. - diff., with cap and bolts, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

CARRIER - differential (Order A44224)

1шт.

4

NSS

NOT SOLD SEPARAT

CAP - diff. bearing carrier (Order A44224)

1шт.

5

NSS

NOT SOLD SEPARAT

CAP - diff. bearing carrier (Order A44224)

1шт.

6

A44227

BOLT

- differential bearing carrier cap

4шт.

7

391-620

LOCK,#16 Ga x 12"

WIRE - lock (#16 gauge x 12")

4шт.

8

A44216

LOCK

- adjusting, diff. carrier bearing (R.H.)

1шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

A44217

LOCK

- adjusting, diff. carrier bearing (L.H.)

1шт.

11

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

12

A44214

NUT

- adjusting, diff. carrier bearing (R.H.)

1шт.

13

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - diff. bearing (R.H.)

1шт.

14

A18173

ROLLER BEARING

CONE - bearing, diff. case (R.H.)

1шт.

A153802

DIFFERENTIAL

ASSY. - with bias gears and cases (Replaces A140071), Includes: Ref. 19 - 41

1шт.

19

A44239

BOLT,Hex, 1/2" - 13 x 2 1/8", Gr 7, Gr 8 Optional, Drilled

- short, differential case

4шт.

20

A44241

BOLT,1/2" x 2 7/8", Gr 7

- long, differential case

8шт.

21

NSS

NOT SOLD SEPARAT

CASE - differential, plain half (Order A140071)

1шт.

22

A45248

WASHER

- thrust, side gear (0.057-0.059") (1.45-1.50 MM)

1шт.

22

A44204

WASHER

- thrust, side gear (0.060-0.062") (1.52-1.57 MM)

1шт.

22

A44355

WASHER

- thrust, side gear (0.063-0.065") (1.60-1.65 MM)

1шт.

22

A44356

WASHER

- thrust, side gear (0.066-0.068") (1.68-1.73 MM)

1шт.

22

A44357

WASHER

- thrust, side gear (0.069-0.071") (1.75-1.80 MM)

1шт.

22

A44358

WASHER

- thrust, side gear (0.072-0.074") (1.83-1.88 MM)

1шт.

22

A44359

WASHER

- thrust, side gear (0.075-0.077") (1.91-1.96 MM)

1шт.

A153803

GEAR-SET

GEAR ASSY. - pinion and side, Includes: Ref. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

GEAR - side, differential bias (Replaces A44354) (Order A153803)

2шт.

24

A140051

U-JOINT SPIDER

SPIDER - differential

1шт.

25

NSS

NOT SOLD SEPARAT

PINION - differential bias gear

4шт.

26

A44351

HOUSING

CASE - differential, flange half (Order A153802)

1шт.

27

391-709

ELECTRICAL WIRE

WIRE - lock (#18 gauge x 84")

1шт.

A45113

GEAR-SET

GEAR SET - matched pinion and drive gear (Replaces A44260), Includes: Ref. 35 and 36

1шт.

35

NSS

NOT SOLD SEPARAT

GEAR - drive (39 teeth) (Order A45113)

1шт.

36

NSS

NOT SOLD SEPARAT

PINION - drive (8 teeth) (Order A45113)

1шт.

37

A44263

STEP BOLT

BOLT - differential, Serial Range: gear-case

16шт.

38

A44264

NUT

- differential, Serial Range: gear-case

16шт.

39

A31243

ROLLER BEARING

CONE - bearing, differential (L.H.)

1шт.

40

A31242

CUP

- bearing, differential (L.H.)

1шт.

41

A44215

NUT

- adjusting, diff. carrier bearing (L.H.)

1шт.
