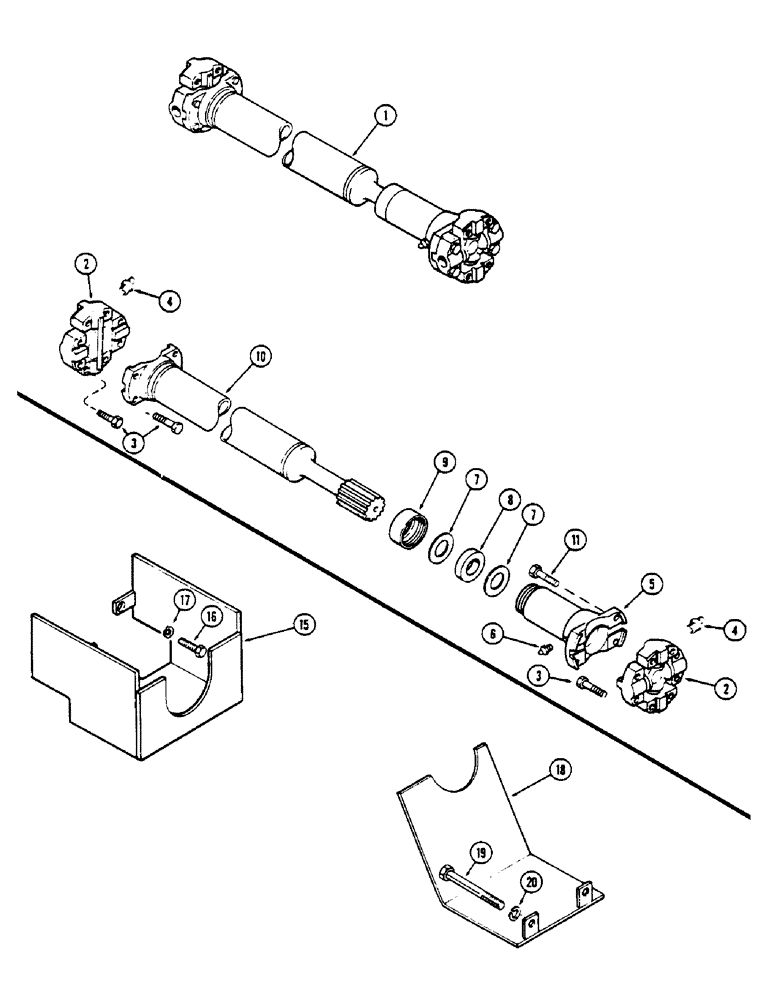

Запчасти Case IH 2670 (234) - REAR AXLE DRIVE SHAFT ASSEMBLY (06) - POWER TRAIN

1

A76596

SHAFT

ASSY. - rear axle drive, Includes: Ref. 2 and 3

1шт.

2

A45596

JOINT

U-JOINT - spider and bearing (Replaces L31173)

2шт.

3

A56245

BOLT,Hex, 1/2" x 2 3/8"

- 1/2 x 2-3/8" N.F. hex hd., Includes: Ref. 4 - 10

4шт.

3

A12870

BOLT,Hex, 7/16" - 20 x 1 1/16"

- 7/16 x 1-1/16" N.F. hex

4шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - lube, 1/8"-28 str.

1шт.

5

A43500

YOKE

SLIP YOKE ASSY. - drive shaft

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. str.

1шт.

7

A12868

WASHER

- slip yoke felt seal retainer

2шт.

8

A12873

SEAL

- felt, slip yoke dust shield

1шт.

9

A12867

CAP

- stuffing, slip yoke

1шт.

10

A44753

TUBE

- drive shaft

1шт.

15

A137606

SHIELD - rear axle U-joint, drive

1шт.

16

A44212

BOLT

- shield to diff. pinion carrier, rear axle drive shaft

2шт.

A44212 bolt and 193-33 lock washer are part of differential assy. Figure 238. 13-856 and 92-8 lock washer are part of transmission assy. Figure 228.

1шт.

17

193-33

LOCK WASHER,9/16"

WASHER - lock ( ext. Shakeproof), rear axle drive shaft shield 9/16"

2шт.

A44212 bolt and 193-33 lock washer are part of differential assy. Figure 238. 13-856 and 92-8 lock washer are part of transmission assy. Figure 228.

1шт.

18

A135342

SHIELD - trans. brake housing U-joint, rear axle drive shaft shield

1шт.

19

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

Rear axle drive shaft shield Hex, 1/2"-13 x 3 1/2", G5

2шт.

A44212 bolt and 193-33 lock washer are part of differential assy. Figure 238. 13-856 and 92-8 lock washer are part of transmission assy. Figure 228.

1шт.

20

92-8

LOCK WASHER,1/2"

rear axle drive shaft shield 1/2"

2шт.

A44212 bolt and 193-33 lock washer are part of differential assy. Figure 238. 13-856 and 92-8 lock washer are part of transmission assy. Figure 228.

1шт.
