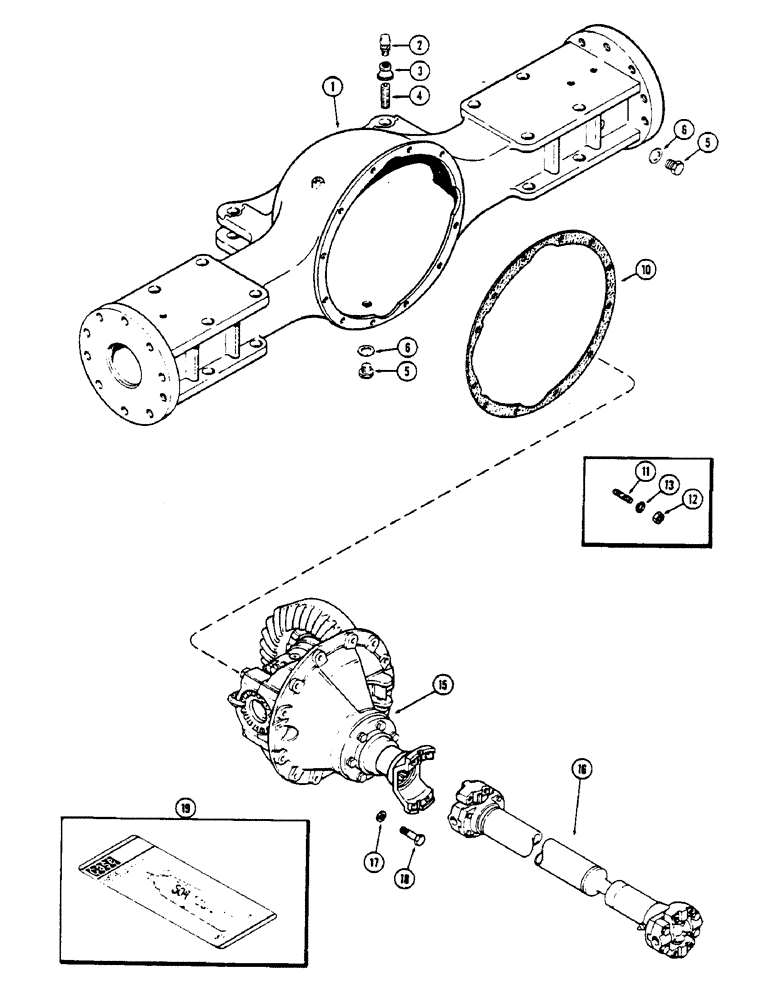

Запчасти Case IH 2670 (232) - REAR AXLE DIFFERENTIAL HOUSING, COMMON TO REAR RIGID AND REAR HYDRAULIC STEER (06) - POWER TRAIN

1

A150700

HOUSING

- axle (1st used axle serial no. 10110612)

1шт.

2

A12928

BREATHER

- differential axle housing

1шт.

3

221-345

COUPLING, BREAK AWAY

COUPLING - reducer, Serial Range: (3/8-1/8")

1шт.

4

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - pipe (3/8 x 1")

1шт.

5

A140222

PLUG

- drain, housing

2шт.

6

A51759

GASKET

- drain plug, (Replaces A58608)

2шт.

10

A75228

GASKET

- diff. assy. to diff. hsg. (Order B17428 gasket eliminator)

1шт.

11

G102126

STUD

- mounting (1/2 x 2-1/8" N.C.)

8шт.

11

A75985

STUD

- mounting (1/2 x 2-1/2" N.C.)

4шт.

12

25-108

NUT,1/2"-13, G5

- (1/2" hex.)

12шт.

13

92-8

LOCK WASHER,1/2"

12шт.

15

REF

INSTRUCTION

DIFFERENTIAL ASSY. - rear axle (See Figures 236 and 238)

1шт.

16

REF

INSTRUCTION

SHAFT ASSY. - rear axle drive (See Figure 234)

1шт.

17

92-8

LOCK WASHER,1/2"

12шт.

18

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

18

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- 1/2 x 1-3/4" N.C. hex, grade 8

4шт.

19

B17428

LOCTITE

ELIMINATOR - gasket, 2 oz. (50 CC)

3шт.
