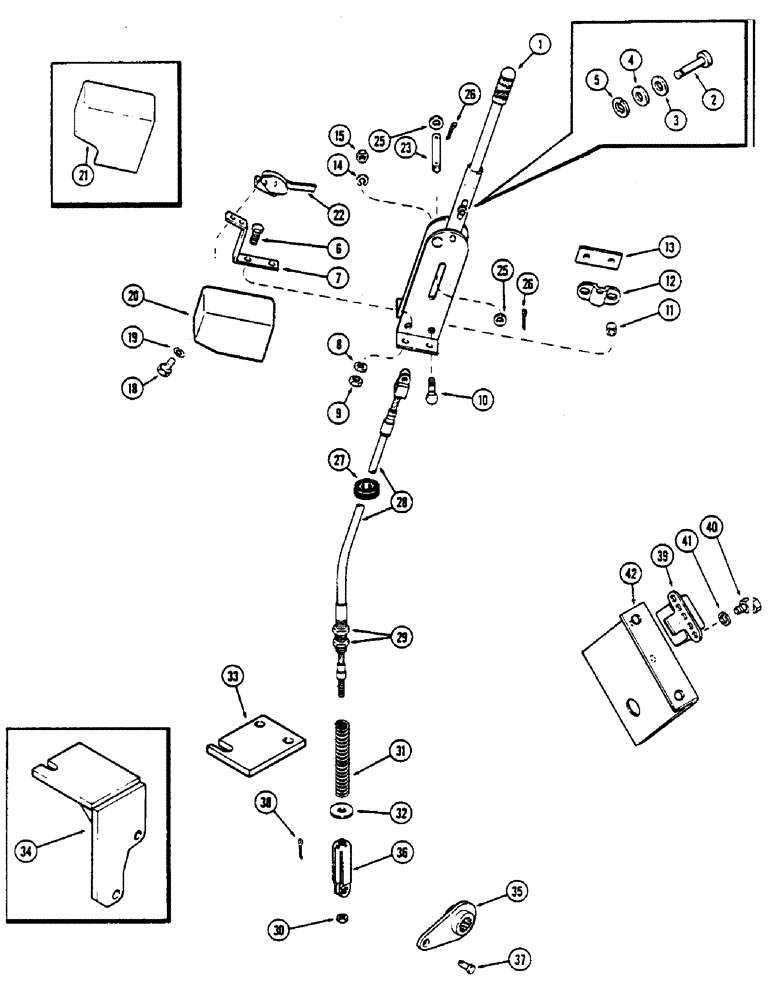

Запчасти Case IH 2670 (230) - PARKING BRAKE (06) - POWER TRAIN

1

A148041

LEVER

ASSY. - parking brake (Replaces A76108), Includes: Ref. 2 - 5

1шт.

2

A42204

PIN

- lever

1шт.

3

A55934

WASHER

- spring (Replaces D47261)

1шт.

4

95-5

WASHER,3/8" x 7/8" x .083"

- plain (5/16")

1шт.

5

C14652

RING

SNAP RING - lever pin

1шт.

6

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

7

A75751

BRACKET

- hand brake switch

1шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

9

9635082

NUT,5/16" - 18, Gr 5

4шт.

10

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

11

A31238

BUSHING

SPACER - cable clamp

2шт.

12

A76109

CLAMP

- parking brake cable

1шт.

13

A75745

BUSHING

SPACER - hand brake

1шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

15

9635082

NUT,5/16" - 18, Gr 5

2шт.

18

163-9

SCREW,Hex, #10 - 32 x 1/2"

BOLT - (#10-32 x 1/2" hex. head)

2шт.

19

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

2шт.

20

A139933

COVER

- light switch (1st used tractor ser. no. 8792901)

1шт.

21

A75753

COVER - switch (Used before tractor ser. no. 8792901)

1шт.

22

A33977

SWITCH

- lamp, hand brake

1шт.

23

A76379

PIN

- clevis (5/16 x 2-5/8")

1шт.

25

195-21

WASHER,5/16"

- (11/32 x 11/16")

2шт.

26

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

27

F37765

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

1шт.

28

A75746

CABLE

ASSY. - parking brake, Includes: Ref. 29

1шт.

29

129-146

NUT,Jam, 9/16"-12, G5

- (9/16" N.C. hex, jam)

2шт.

30

131-85

LOCK NUT,5/16"-24, GB

NUT - (5/16" N.F. hex, ESNA)

1шт.

31

A31237

SPRING

- brake lever

1шт.

32

195-2022

WASHER

- (11/32 x 1-3/8" x 11 gauge)

1шт.

33

A139761

BRACKET - bulkhead brake cable (1st use trans. ser. no. 10025257)

1шт.

34

A76599

SUPPORT

BRACKET - bulkhead brake cable (Used before trans. ser. no. 10025257)

1шт.

35

A76597

LEVER

- hand brake (See Figure 228)

1шт.

36

A76882

CLEVIS

- brake cable

1шт.

37

141-54

CLEVIS PIN,3/8" x 1 1/16"

(Replaces A39709) 3/8" x 1 1/16"

1шт.

38

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

39

A38787

BUZZER

- warning, parking brake

1шт.

40

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

2шт.

41

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

42

A76465

BRACKET

- clutch

1шт.
