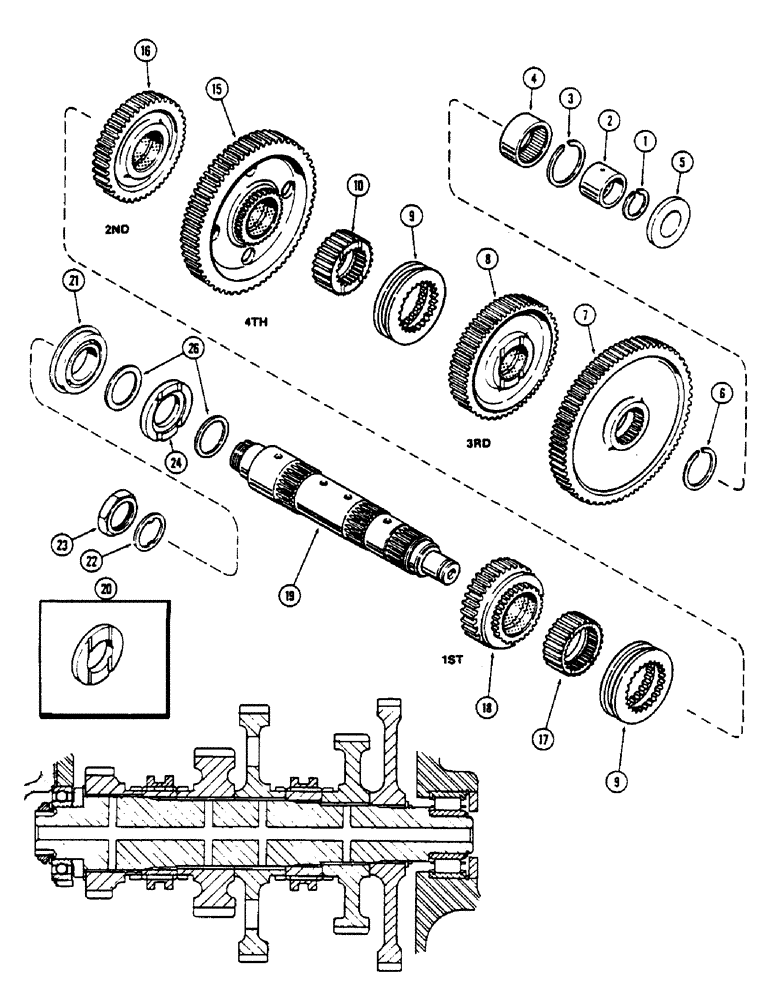

Запчасти Case IH 2670 (222) - INTERMEDIATE SHAFT (06) - POWER TRAIN

1

A76701

SNAP RING,#156, 1.467", Ext

RING - snap, inner needle bearing race

1шт.

2

A76700

BEARING, CONE,1.5748" ID x 2.059" OD x 1.4375"

RACE - sliding collar shaft inner needle bearing

1шт.

3

A32422

SNAP RING,2.36mm Thk, Int

RING - snap, front needle bearing

1шт.

4

A76702

BEARING ASSY

BEARING - roller, sliding collar shaft, front (3.5433 / 3.5427)

1шт.

5

A140882

CUP

- oil, front needle bearing (Replaces A136081)

1шт.

6

A58234

SNAP RING,#237, 2.295", Ext

RING - snap, drop driven gear retainer

1шт.

7

A76703

GEAR

- drop, driven (77 teeth)

1шт.

8

A77095

GEAR

ASSY. - 3rd gear with bushing (56 teeth)

1шт.

9

A138190

COLLAR

- shift, sliding (Replaces A76692)

2шт.

10

A77230

HUB

- splined pinion (3rd and 4th) (30 teeth)

1шт.

14

A151762

WASHER

- thrust, shaft (replaces A136123)

1шт.

Ref. 14 - Is not shown in the artwork. Should be between Ref. 19 Intermediate Shaft and Ref. 26 Shim

1шт.

15

A152213

GEAR

ASSY. - driver (4th), with bushing (73 teeth) (Replaces A77096)

1шт.

Ref. 15 - A77096 Gear Assy. (4th) 73 teeth

1шт.

Ref. 15A - A152213 Gear Assy. (4th) 88 teeth

1шт.

16

A77098

GEAR

ASSY. - driver (2nd), with bushing (47 teeth)

1шт.

17

A77229

HUB

- splined pinion (1st and 2nd) (30 teeth)

1шт.

18

A150608

GEAR

ASSY. - driver (1st), with bushing (36 teeth) (Replaces A77099)

1шт.

19

A76699

SHAFT

- intermediate

1шт.

20

A76713

BUSHING

SPACER - driven shaft, rear (Used before trans. ser. no. 10121045)

1шт.

See Figure 224 for end play kit.

1шт.

21

A76714

BALL BEARING,2.3622" ID x 4.3307" OD x 0.8661"

BEARING - driven shaft, rear

1шт.

22

A76715

WASHER

- driven shaft, rear bearing

1шт.

23

A76716

NUT

LOCKNUT - driven shaft rear bearing

1шт.

24

A150212

SPACER

- C-shaft, rear (Used trans. ser. no. 10121045 and after)

1шт.

25

A150446

SPACER

- bearing (Used trans. ser. no. 10121045 and after) (3-39/64 x 4-1/4 x 4-1/4 x 1/32") (91.68 x 108 x .79 MM)

1шт.

26

A150208

SHIM

- 2-3/8 x 2-31/32 x 1/64" (60.33 x 75.4 x .40 MM)

1шт.
