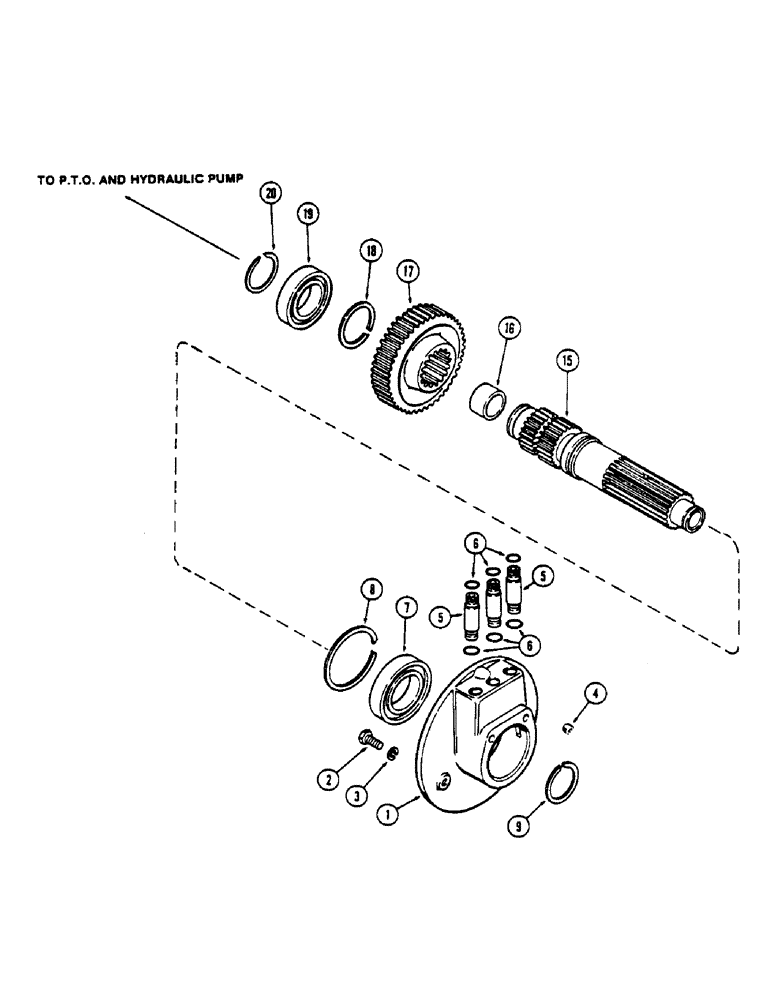

Запчасти Case IH 2670 (220) - OIL DISTRIBUTOR CARRIER (06) - POWER TRAIN

1

A76468

CARRIER

- oil distributor

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex, grade 5

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

221-841

PLUG

- pipe (1/4" hex socket head)

2шт.

5

A76120

TUBE

- oil distribution

3шт.

6

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- tube (Included in A42886 kit page 126)

6шт.

7

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - oil distributor carrier

1шт.

8

A31234

RING

- snap, internal, oil distributor carrier bearing

1шт.

9

A20193

RING

- snap, external, oil distributor carrier bearing

1шт.

15

A76623

SHAFT

ASSY. - planetary output drive, Includes: Ref. 16

1шт.

16

A76228

BUSHING,34.87mm ID x 41.31mm OD x 25.4mm L

- planetary output drive shaft

1шт.

17

A76499

GEAR

- drive, planetary output shaft

1шт.

18

A76500

SNAP RING,#231, 2.235", Ext

RING - snap, gear retaining, planetary output drive shaft

1шт.

19

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - planetary output shaft, rear, drive

1шт.

20

A20193

RING

- snap, planetary output shaft rear bearing, drive

1шт.
