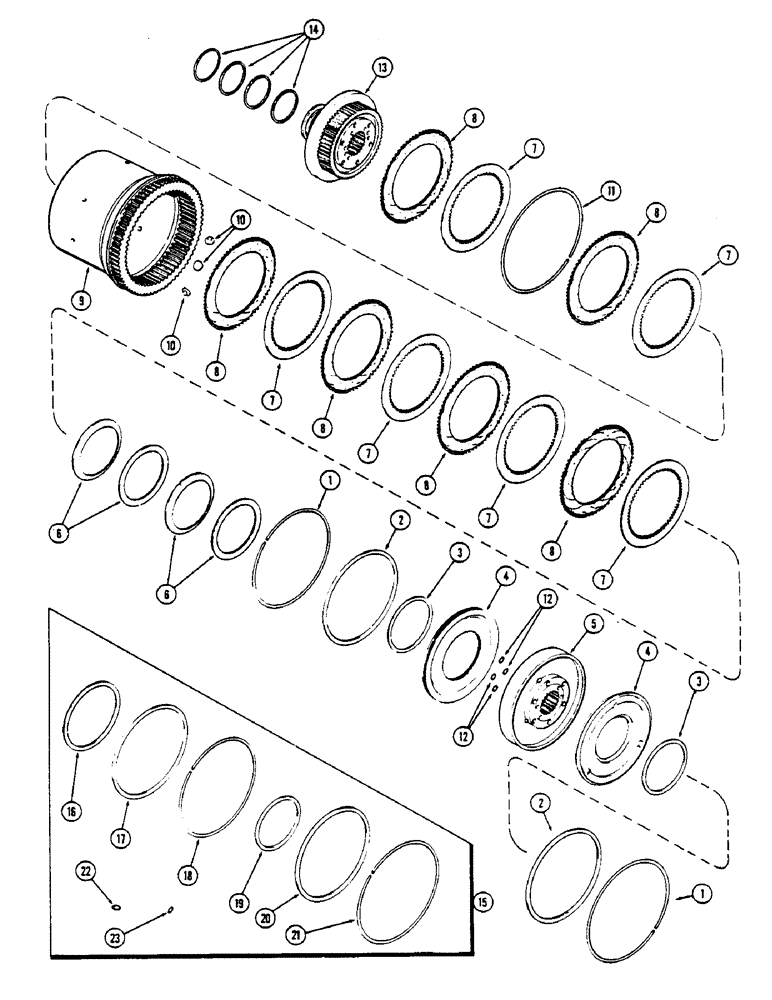

Запчасти Case IH 2670 (218) - CLUTCH, (C-2) AND (C-3) CLUTCHES, USED BEFORE TRANSMISSION SERIAL NUMBER 10053441 (06) - POWER TRAIN

1

A62642

ELECTRICAL WIRE

WIRE - (C-2) and (C-3) clutch piston sealing ring (Included in A42886 kit - See Ref. 15)

2шт.

2

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

RING - sealing, external, (C-2) and (C-3) clutch piston (Included in A42886 kit - see Ref. 15) (8-15/32" O.D.) (215.11 MM)

2шт.

3

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

RING - sealing, internal, (C-2) and (C-3) clutch piston (Included in A42886 kit - see Ref. 15) (4-15/32" I.D.) (113.51 MM)

2шт.

4

A66359

PISTON

- (C-2) and (C-3) clutch (Order A146670, A146682, A146683, and A150753 and A150754)

2шт.

5

A148696

CARRIER

- (C-2) and (C-3) piston (With 31 internal splines)

1шт.

5

A76496

CARRIER

- (C-2) and (C-3) piston (Without internal spline) (Order A148696)

1шт.

6

A58094

SPRING

- Belleville, (C-3) clutch piston return

4шт.

7

A155461

PLATE

- steel (C-3) clutch (Replaces A58089)

6шт.

8

A61981

PLATE

- sintered (C-3) clutch

6шт.

9

A138619

GEAR

- planetary ring (With 6 bearing holes) (Replaces A76497)

1шт.

10

A58413

BUTTON

BEARING - button, ring gear (Only 3 used before trans. ser. no. 2463274)

6шт.

11

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, planetary ring gear retaining

1шт.

12

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - oil sealing (Included in A42886 kit - see Ref. 15)

4шт.

13

A76498

HUB

-

1шт.

Ref. 13 - A153299 If looking for the C3 Hub that has 1/2" hole

1шт.

14

A58384

RING

- (C-3) clutch oil distributor piston

4шт.

15

A42886

SEAL KIT

SEAL KIT - power shift clutch, Includes: Ref. 16 - 23

1шт.

16

A58397

SEAL,227.13mm ID x 3.23mm Thk

RING - sealing (C-4) piston, 8-31/32" dia. (227.81 MM)

1шт.

17

A58396

SEAL,318.39mm ID x 3.23mm Thk

RING - sealing (C-4) piston, 12-9/16" dia. (319.09 MM)

1шт.

18

A62643

ELECTRICAL WIRE

WIRE - (C-4) piston sealing ring, 38-3/4" long (984.25 MM)

1шт.

19

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

RING - seal, piston (C-1), and (C-2) and (C-3), 4-15/32" dia. (113.51 MM)

3шт.

20

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

RING - seal, piston (C-1), (C-2) and (C-3), 8-5/16" dia. (211.14 MM)

3шт.

21

A62642

ELECTRICAL WIRE

WIRE - (C-1), (C-2) and (C-3) seal ring, 25-1/2" long (647.7 MM)

3шт.

22

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- lube tube (1/2 x 5/8 x 1/16")

7шт.

23

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - (C-2) and (C-3) oil seal (5/16 x 7/16 x 1/16")

8шт.
