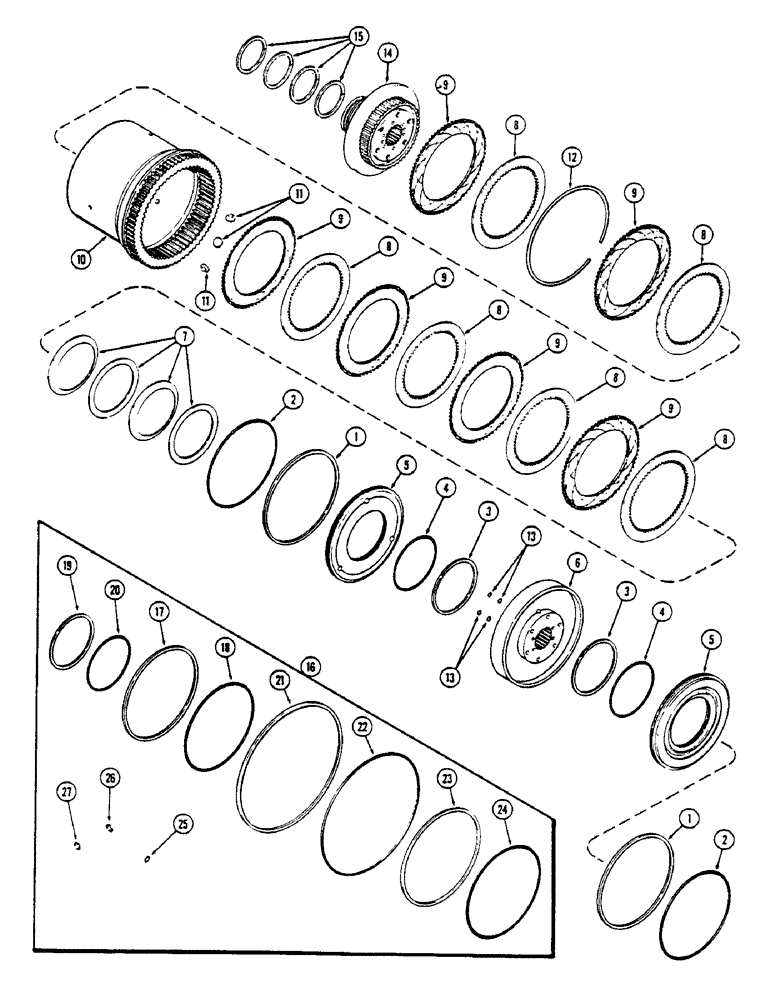

Запчасти Case IH 2670 (216) - CLUTCH, (C-2) AND (C-3) CLUTCHES, FIRST USED TRANSMISSION SERIAL NUMBER10053441 (06) - POWER TRAIN

1

A146682

RING

- sealing, (C-2) and (C-3) external (Included in A46286 kit- see Ref. 16) (8-1/4 x 8-1/2 x 1/8")

2шт.

2

A150753

O-RING,7.84" ID x 0.107"

- piston (C-2) and (C-3) external (Included in A46286 kit - see Ref. 16) (7-3/4 x 8 x 7/64")

2шт.

3

A146683

RING

- sealing (C-2) and (C-3) internal (Included in A46286 kit - see Ref. 16) (4-1/4 x 4-1/2 x 1/8")

2шт.

4

A150754

O-RING,4.718" ID x 0.107"

- piston (C-2) and (C-3) internal (Included in A46286 kit - see Ref. 16) (4-3/4 x 5 x 7/64")

2шт.

5

A146670

PISTON

- (C-2) and (C-3) clutch

2шт.

6

A148696

CARRIER

- (C-2) and (C-3) piston

1шт.

7

A58094

SPRING

- Belleville (C-3) clutch piston return

4шт.

8

A155461

PLATE

- steel (C-3) clutch (Replaces A58089)

6шт.

9

A61981

PLATE

- sintered (C-3) clutch

6шт.

10

A138619

GEAR

- planetary ring (With 6 bearing holes) 8.16 / 8.13 Length

1шт.

11

A58413

BUTTON

BEARING - button, ring gear

6шт.

12

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, planetary ring gear retaining

1шт.

13

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - oil sealing (Included in A42886 kit - see Ref. 15)

4шт.

14

A76498

HUB

- (C-3) clutch

1шт.

Ref. 14A - A153299 If looking for the C3 Hub that has 1/2" hole. This requires 1/2" x 4" screws. The part # is (166-96 = old #) 380-2864 = newest #.

1шт.

15

A58384

RING

- (C-3) clutch oil distributor piston

4шт.

16

A46286

SEAL KIT,Power Shift

KIT - power shift clutch, Includes: Ref. 17 - 27

1шт.

17

A146682

RING

- sealing (C-1, C-2 and C-3 external) (8-1/4 x 8-1/2 x 1/8")

3шт.

18

A150753

O-RING,7.84" ID x 0.107"

- piston (C-1, C-2 and C-3 external) (7-3/4 x 8 x 7/64")

3шт.

19

A146683

RING

- sealing, (C-1, C-2 and C-3 internal) (4-1/4 x 4-1/2 x 1/8")

3шт.

20

A150754

O-RING,4.718" ID x 0.107"

- piston (C-1, C-2 and C-3 internal) (4-3/4 x 5 x 7/64")

3шт.

21

A146680

RING

- sealing (C-4) external (12-1/2 x 12-3/4 x 1/8")

1шт.

22

A150751

O-RING,12.09" ID x 0.107"

- sealing, (C-4) external (12 x 11-3/4 x 1/8")

1шт.

23

A146681

SEAL

O-RING - sealing, (C-4) internal (8-3/4 x 9 x 1/8")

1шт.

24

A150752

O-RING,9.206" ID x 0.107" OD

- piston, (C-4) internal (12-5/32 x 12-13/32 x 7/64")

1шт.

25

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - clutch hub to piston carrier

4шт.

26

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- lube tube, 1/2 x 5/8 x 1/16" (12.7 x 15.87 x 1.58 MM)

7шт.

27

A65918

O-RING,0.551" ID x 0.691" OD

- oil seal, 5/16 x 7/16 x 1/16" (7.93 x 11.11 x 1.58 MM)

5шт.
