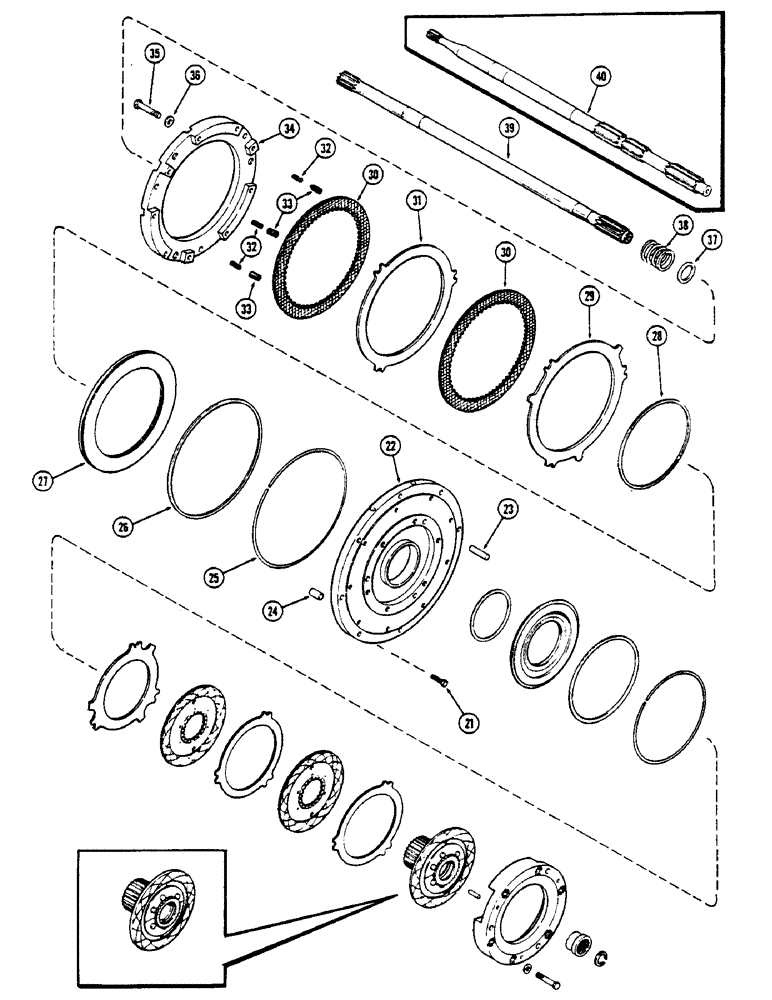

Запчасти Case IH 2670 (212) - CLUTCH, (C-1) AND (C-4) CLUTCHES, USED BEFORE TRANSMISSION SERIAL NUMBER 10053441 (CONT) (06) - POWER TRAIN

21

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- (3/8 x 1-1/2" N.C. hex) (Con't from Figure 208)

8шт.

22

A77337

CARRIER

ASSY. - (C-1) and (C-4) clutch piston (Replaces A76618), Includes: Ref. 23 and 24

1шт.

23

A75102

PIN,12.45mm OD x 50.8mm L

- (C-1) clutch plate (1/2 x 2")

3шт.

24

A62609

PIN,12.45mm OD x 27.43mm L

- (C-4) clutch reaction plate (1/2 x 1-5/64")

3шт.

25

A62643

ELECTRICAL WIRE

WIRE - (C-4) piston seal ring, ext. (In A42886 kit Figure 218)

1шт.

26

A58396

SEAL,318.39mm ID x 3.23mm Thk

RING - seal, external (C-4) piston (In A42886 kit Figure 218) (12-35/64" O.D.)

1шт.

27

A58395

PISTON

- (C-4) (Order 1-A146671, 1-A146680, 1-A150751, 1-A150752 and A146681)

1шт.

28

A58397

SEAL,227.13mm ID x 3.23mm Thk

RING - seal, internal (C-4) piston (In A42886 kit Figure 218) (8-61/64" I.D.)

1шт.

29

A58056

PLATE

- steel, with tabs (C-4) clutch

1шт.

30

A67128

PLATE

- friction (C-4) clutch (Replaces A62563)

2шт.

31

A75105

PLATE

- steel, without tabs (C-4) clutch

1шт.

32

A62607

SPRING

- (C-4) clutch return, (23/64" dia.) (1-3/32" free length)

3шт.

33

A62606

SPRING

- (C-4) clutch return, (9/16" dia.) (1-3/32" free length)

3шт.

34

A77120

PLATE

- (C-4) reaction

1шт.

35

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

9шт.

36

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened, reaction plate (7/16 x 49/64 x 1/32")

9шт.

37

A75110

WASHER

- sun gear, locating spring (1-7/16 x 2 x 7/64") (Without P.T.O.)

1шт.

38

A63068

SPRING

- locating, sun gear, 2-19/64" free length (58.34 MM) (Without P.T.O.)

1шт.

39

A76488

SHAFT

- pump drive (With P.T.O.)

1шт.

40

A136491

SHAFT

- trans. input and pump drive (Without P.T.O.)

1шт.
