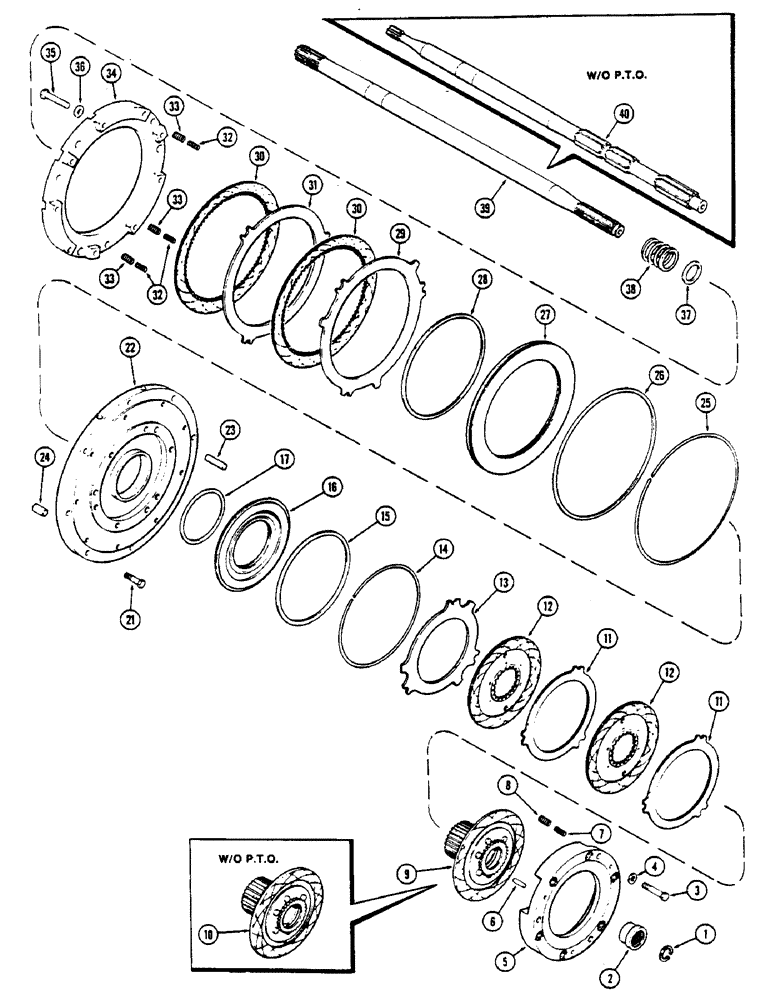

Запчасти Case IH 2670 (210) - CLUTCH, (C-1) AND (C-4) CLUTCHES, USED BEFORE TRANSMISSION SERIAL NUMBER 10053441 (06) - POWER TRAIN

1

A39669

SNAP RING,#137, 1.277", Ext, Spiral

RING - snap, clutch support bushing (Without P.T.O.)

1шт.

2

A75970

BEARING

- clutch support (Without P.T.O.)

1шт.

3

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

6шт.

4

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened, reaction plate bolt (7/16 x 49/64 x 1/32")

6шт.

5

A140075

PLATE

- (C-1) reaction (Replaces A75101)

1шт.

6

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Spring centering 3/16" x 1 1/4", Slotted

3шт.

7

A62607

SPRING

- (C-1) clutch return (23/64" dia.) (1-3/32" free length)

3шт.

8

A62606

SPRING

- (C-1) clutch return (9/16" dia.) (1-3/32" free length)

3шт.

9

A148836

GEAR

ASSY. - sun, with (C-1) clutch plate (Without P.T.O.) (1st used trans. ser. no. 10027116)

1шт.

9

A142538

GEAR

ASSY. - sun, with (C-1) clutch plate (With P.T.O.) (Replaces A138614) (Order 1-A148836 and 1-A140075) (Used before trans. ser. no. 10027116)

1шт.

10

A142537

GEAR

- sun (C-1) clutch plate (Without P.T.O.) (Replaces A138613)

1шт.

11

A65525

PLATE

- steel, without tab (C-1) clutch

2шт.

12

A142536

PLATE

- sintered (C-1) clutch (Replaces A140480)

2шт.

13

A65524

PLATE

- steel, with tab (C-1) clutch

1шт.

14

A62642

ELECTRICAL WIRE

WIRE - (C-1) seal ring, external (In A42886 kit Figure 218)

1шт.

15

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

RING - seal, external (C-1) piston (In A42886 kit Figure 218) 8-5/16" O.D.)

1шт.

16

A66392

PISTON

- (C-1) (Order 1-A146682, 1-A150754)

1шт.

17

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

RING - seal, internal (C-1) piston (In A42886 kit Figure 218) 4-15/32" I.D.)

1шт.
