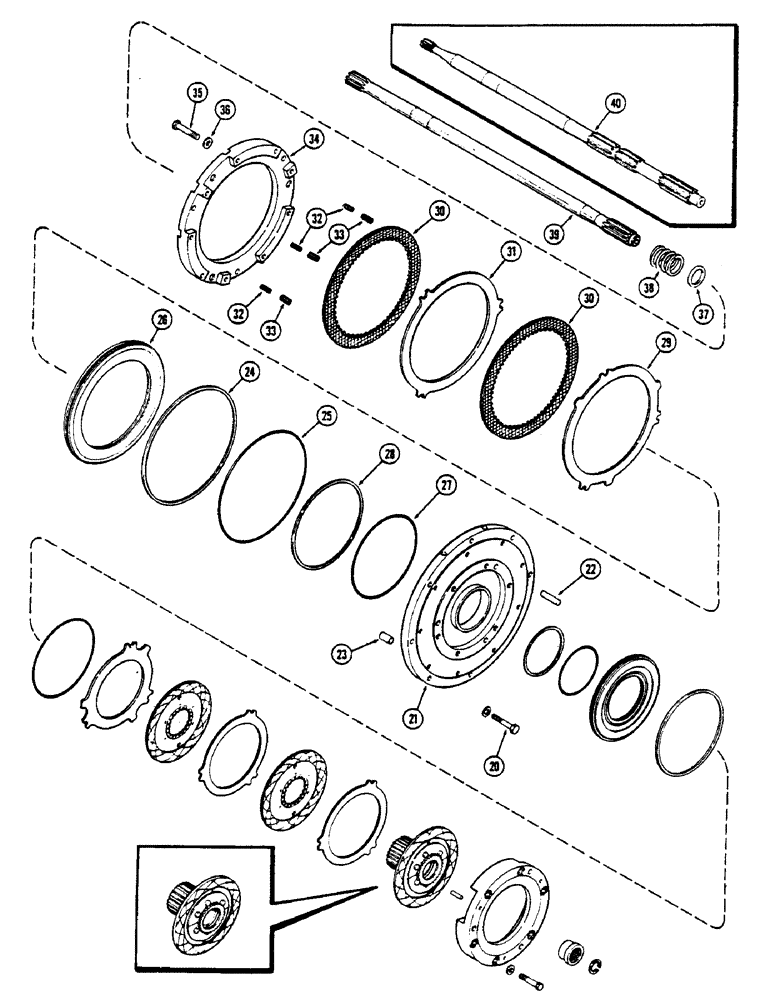

Запчасти Case IH 2670 (208) - (C-1) AND (C-4) CLUTCHES, FIRST USED TRANSMISSION SERIAL NUMBER 10053441 (06) - POWER TRAIN

20

26-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- (3/8 x 1-1/2" N.C. hex)

8шт.

21

A77337

CARRIER

ASSY. - (C-1) and (C-4) clutch position, Includes: Ref. 22 and 23

1шт.

22

A75102

PIN,12.45mm OD x 50.8mm L

- (C-1) clutch plate (1/2 x 2")

3шт.

23

A62609

PIN,12.45mm OD x 27.43mm L

- (C-4) clutch reaction plate (1/2 x 1-5/64")

3шт.

24

A146680

RING

- sealing (C-4) external (In A46286 kit Figure 216) (12-1/2 x 12-3/4 x 1/8")

1шт.

25

A150751

O-RING,12.09" ID x 0.107"

- (C-4) piston, external (In A46286 kit Figure 216) (12 x 11-3/4 x 7/64")

1шт.

26

A146671

PISTON

- (C-4) clutch

1шт.

27

A150752

O-RING,9.206" ID x 0.107" OD

- (C-4) piston, internal (In A46286 kit Figure 216) (12-5/32 12-13/32 x 7/64")

1шт.

28

A146681

SEAL

- sealing, (C-4) clutch lip, external (In A46286 kit Figure 216) (8-3/4 x 9 x 1/8")

1шт.

29

A58056

PLATE

- steel, with tabs (C-4) clutch

1шт.

30

A67128

PLATE

- friction (C-4) clutch

2шт.

31

A75105

PLATE

- steel, without tabs (C-4) clutch

1шт.

32

A62607

SPRING

- (C-4) clutch return, (23/64" dia.) (1-3/32" free length)

3шт.

33

A62606

SPRING

- (C-4) clutch return, (9/16" dia.) (1-3/32" free length)

3шт.

34

A77120

PLATE

- (C-4) reaction

1шт.

35

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

9шт.

36

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened, reaction plate (7/16 x 49/64 x 1/32")

9шт.

37

A75110

WASHER

- sun gear locating spring (1-7/16 x 2 x 7/64") (With P.T.O.)

1шт.

38

A63068

SPRING

- locating, sun gear (2-19/64" free length) (Without P.T.O.)

1шт.

39

A76488

SHAFT

- pump drive (With P.T.O.)

1шт.

40

A136491

SHAFT

- trans. input and pump drive (Without P.T.O.)

1шт.
