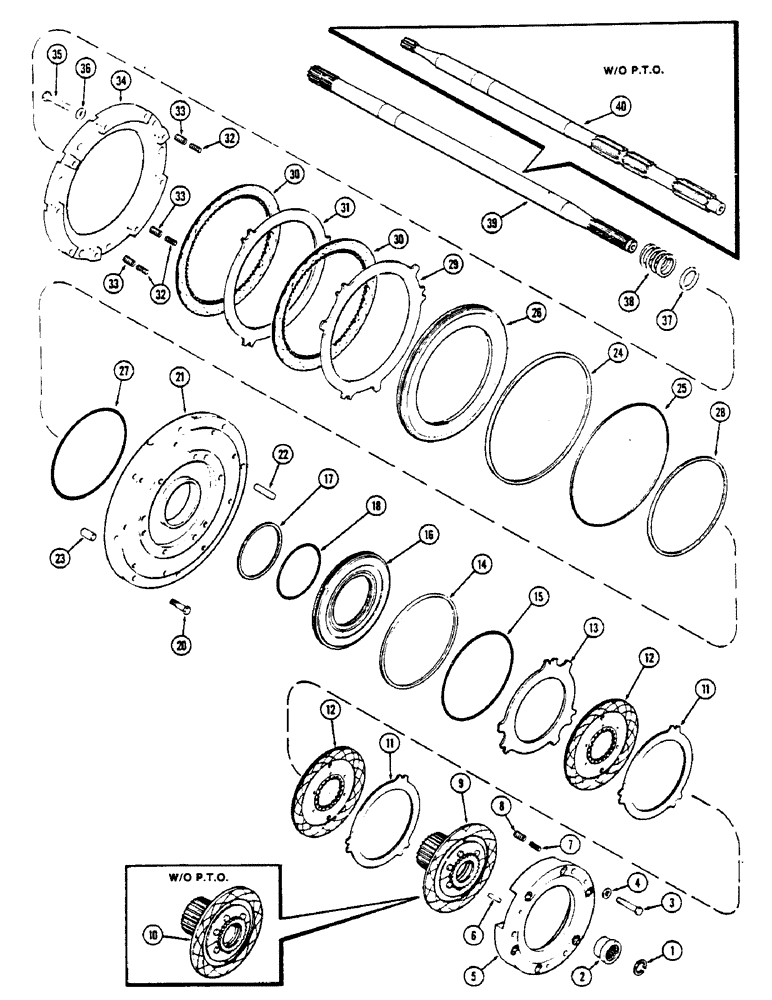

Запчасти Case IH 2670 (206) - CLUTCH, (C-1) AND (C-4) CLUTCHES, FIRST USED TRANSMISSION SERIAL NUMBER 10053441 (06) - POWER TRAIN

1

A39669

SNAP RING,#137, 1.277", Ext, Spiral

RING - snap, clutch support bushing (Without P.T.O.)

1шт.

2

A75970

BEARING

- clutch support (Without P.T.O.)

1шт.

3

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

6шт.

4

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- hardened, reaction plate bolt (7/16 x 49/64 x 1/32")

6шт.

5

A140075

PLATE

- (C-1) reaction (Replaces A75101)

1шт.

6

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Spring centering 3/16" x 1 1/4", Slotted

3шт.

7

A62607

SPRING

- (C-1) clutch return (23/64" dia., x 1-3/32" free length) (9.12 x 27.78 MM)

3шт.

8

A62606

SPRING

- (C-1) clutch return (9/16" dia x 1-3/32" free length) (14.28 x 27.8 MM)

3шт.

9

A148836

GEAR

ASSY. - sun, with (C-1) clutch plate with P.T.O. (First used transmission serial no. 10027109)

1шт.

9

A142538

GEAR

ASSY. - sun, with (C-1) clutch plate with P.T.O. (Replaces A77132 and A138614) (Order 1-A148836 and 1-A140075) (Used before transmission serial no. 10027109)

1шт.

10

A142537

GEAR

- sun, with (C-1) clutch plate (Without P.T.O) (Replaces A138613)

1шт.

11

A65525

PLATE

- steel, without tab (C-1) clutch

2шт.

12

A142536

PLATE

- sintered (C-1) clutch (Replaces A140480)

2шт.

13

A65524

PLATE

- steel, with tab (C-1) clutch

1шт.

14

A146682

RING

- sealing, external (C-1) piston (In A46286 kit Figure 216) (8-1/4 x 8-1/2 x 1/8")

1шт.

15

A150753

O-RING,7.84" ID x 0.107"

- piston, external (C-1) piston (In A46286 kit Figure 216) (7-3/4 x 8 x 7/64")

1шт.

16

A146670

PISTON

- (C-1) clutch

1шт.

17

A146683

RING

- sealing, internal, (C-1) piston (In A46286 kit Figure 216) (4-1/4 x 4-1/2 x 1/8")

1шт.

18

A150754

O-RING,4.718" ID x 0.107"

- piston, internal (C-1) piston (In A46286 kit Figure 216) (4-3/4 x 5 x 7/64")

1шт.
