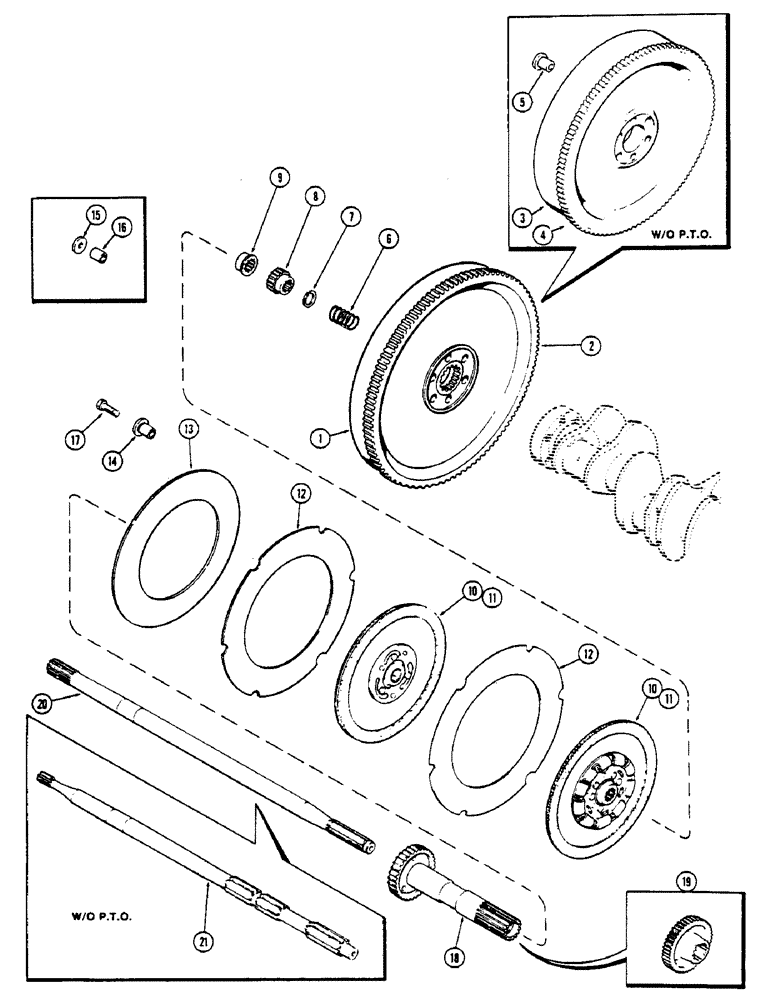

Запчасти Case IH 2670 (204) - CLUTCH, TORQUE LIMITER (06) - POWER TRAIN

1

A66613

FLYWHEEL

ASSY. - with splined hub (Used with P.T.O.) (See Figure 48)

1шт.

2

A27920

GEAR

- ring (137 teeth)

1шт.

3

A75299

FLYWHEEL ASSY. - (Used without P.T.O.) (See Figure 48), Includes: Ref. 4 and 5

1шт.

4

A27920

GEAR

- ring (137 teeth)

1шт.

5

A63928

BUSHING

-, Serial Range: crankshaft-flywheel

1шт.

6

A65416

SPRING

- P.T.O. and hyd. pump drive sleeve (Used with P.T.O. only)

1шт.

7

A76480

RING

- snap, trans. input and pump drive shaft (Used with P.T.O. only)

1шт.

8

A66610

SLEEVE

- trans. input and pump drive shaft (Used with P.T.O. only)

1шт.

9

A76482

BUSHING,20T

- trans. input and pump drive shaft (Used with P.T.O. only)

1шт.

Ref. 9A - A75970 Bearing if W/O PTO. (Has blank spot in spline.)

1шт.

10

A155490

PLATE

LIMITER - 12" driven member (Used with P.T.O.) (Replaces A154349) 31 spline

2шт.

11

A63930

CLUTCH DISC

LIMITER - 12" driven member (Used without P.T.O) 22 spline

2шт.

12

A58036

PLATE

- pressure

2шт.

13

A61000

SPRING

- Belleville

1шт.

14

A153849

RETAINER

- clutch spring (Replaces A67195 and A77338)

6шт.

15

A67195

WASHER

- clutch spring (Order A153849) (Used with A77338)

6шт.

16

A77338

BUSHING

SPACER - clutch spring (Order A153849) (Used with A67195)

6шт.

17

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- (1/2 x 2-1/4" N.C. hex)

6шт.

18

A148695

SHAFT

- drive gear (With P.T.O.) (With 3 holes 25/64" dia.) (1st used trans. ser. no. 10027116)

1шт.

18

A76489

SHAFT

- drive gear (With P.T.O.) (With 3 holes 23/64" dia.) (Used before trans. ser. no. 10027116)

1шт.

19

A75109

GEAR

- drive, sun (Without P.T.O.)

1шт.

20

A76488

SHAFT

- pump and P.T.O. drive (With P.T.O.)

1шт.

21

A136491

SHAFT

- trans. input and pump drive (Without P.T.O.)

1шт.
