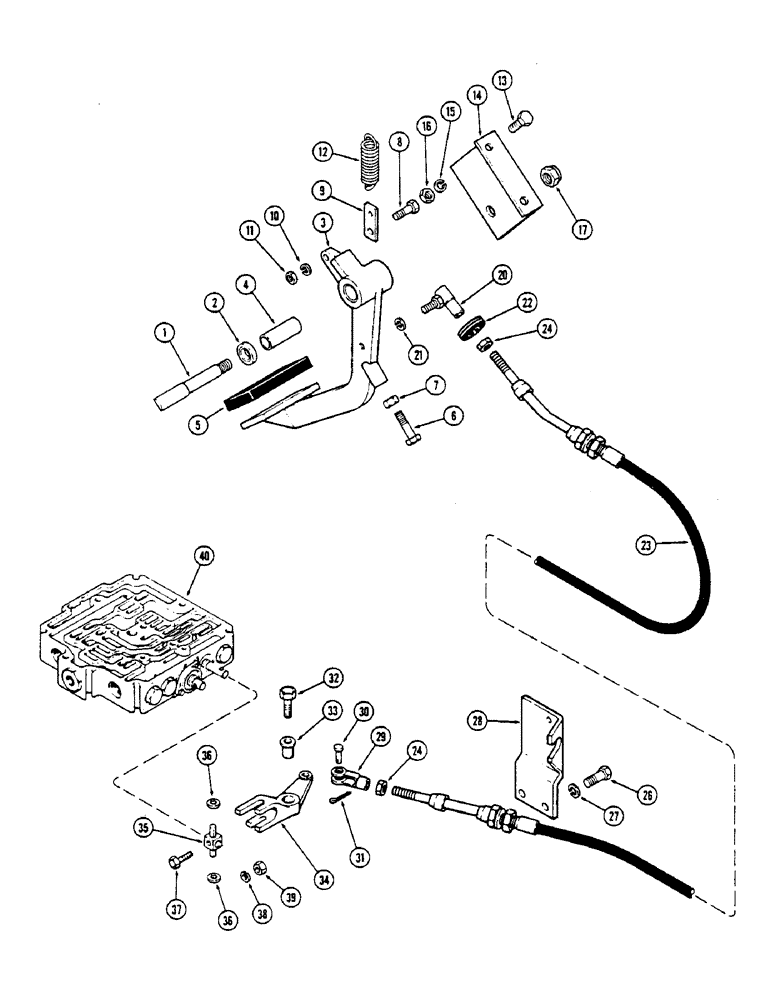

Запчасти Case IH 2670 (202) - FOOT CLUTCH PEDAL AND LINKAGE (06) - POWER TRAIN

1

A75359

SHAFT

Clutch pedal

1шт.

2

A75360

SPACER

Clutch pedal shaft

1шт.

3

A145124

PEDAL

ASSY, clutch (Replaces A75361), Incl. Ref. 4

1шт.

4

A75362

BUSHING

Clutch pedal

1шт.

5

F9197

PAD

Pedal

1шт.

6

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

7

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

8

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

9

A76169

CLIP

Spring

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-106

NUT,3/8"-16, G5

(3/8 x 1" N.C. hex)

1шт.

12

A137396

SPRING

Pedal return (Replaces A60302)

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

14

A76465

BRACKET

Clutch

1шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

2шт.

17

131-14

LOCK NUT,5/8"-11, GC

Esna

1шт.

20

D38296

JOINT

BALL - cable

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

A75989

GROMMET

Clutch cable

1шт.

23

A145342

CABLE

Clutch control (Replaces A76276)

1шт.

24

86585245

SPECIAL NUT,JAM, 5/8" - 18

2шт.

26

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

27

192-23

LOCK WASHER,1/2"

2шт.

28

A75978

BRACKET

ANCHOR - clutch cable

1шт.

29

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - clutch cable

1шт.

30

141-4

CLEVIS PIN,3/8" x 1.060"

1шт.

31

132-26

COTTER PIN

3/32" x 3/4"

1шт.

32

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

33

A59772

BUSHING

Clutch spool lever

1шт.

34

A75323

LEVER

Clutch spool

1шт.

35

A59150

LINK

Operating, clutch spool

1шт.

36

A59773

RING

Retaining

2шт.

37

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

38

92-4

LOCK WASHER,1/4"

1шт.

39

25-104

NUT,1/4"-20, G5

1шт.

40

REF

INSTRUCTION

VALVE ASSY, trans. control (See Figure 288)

1шт.
