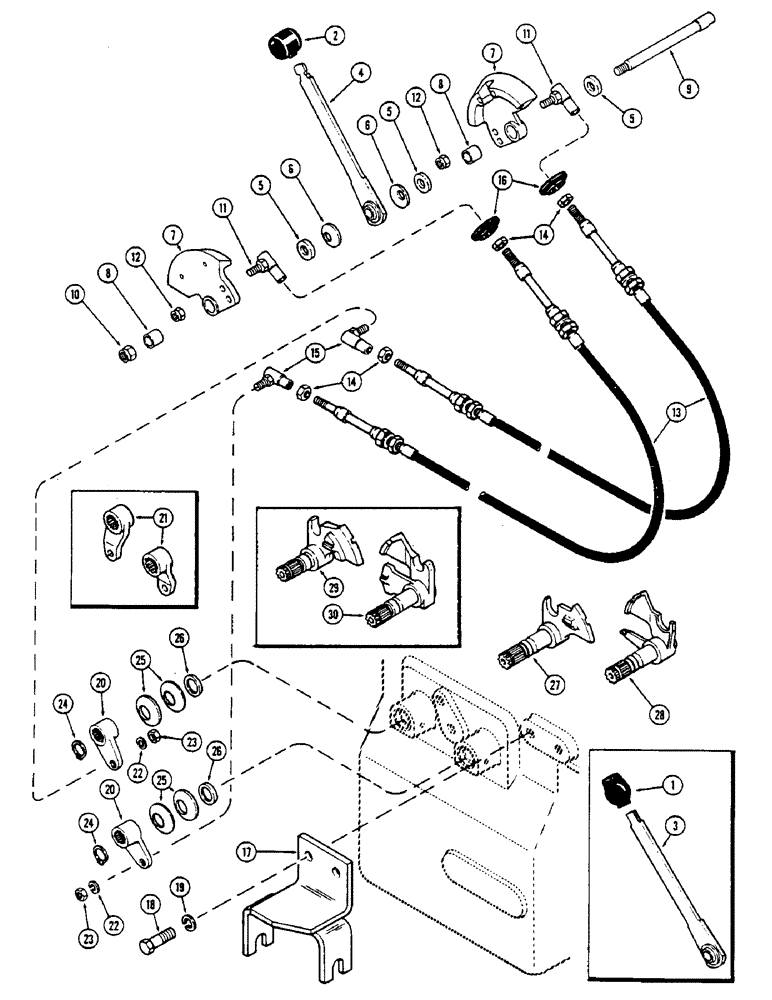

Запчасти Case IH 2670 (198) - RANGE SHIFT LINKAGE (06) - POWER TRAIN

1

A65699

KNOB

- control lever (Plastic) (Order A137806)

1шт.

2

A137806

KNOB

- control lever (Rubber)

1шт.

3

A75378

LEVER

- range shift (With threaded top) (Order Ref. 2 and 4)

1шт.

4

A137857

LEVER

- range shift (Replaces A75378)

1шт.

5

A60367

SPACER

- gear shift quadrants

3шт.

6

A59662

WASHER

- beveled

1шт.

7

A61862

QUADRANT

ASSY. - range shift, Includes: Ref. 8

2шт.

8

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- quadrant

1шт.

9

A75377

SHAFT

- control levers

1шт.

10

131-10

NUT,1/2"-13, GB

NUT, LOCK, , Esna 1/2"-13, GB

1шт.

11

D38296

JOINT

- ball, range collar

2шт.

12

131-5

LOCK NUT,3/8"-16, GB

NUT - lock (3/8"-24 N.F. ESNA)

2шт.

13

A145335

CABLE

- range control (Replaces A77122)

2шт.

14

86585245

SPECIAL NUT,JAM, 5/8" - 18

- (3/8" N.F. hex jam)

4шт.

15

A60307

JOINT

- ball, range cables

2шт.

16

A75989

GROMMET

- cables

2шт.

17

A161220

BRACKET

BULKHEAD - range cable (Replaces A138257)

1шт.

18

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

19

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

20

A136325

LEVER

- shifting (Straight) (1st used trans. ser. no. 2474800)

2шт.

21

A76551

LEVER

- shifting (Offset) (Used before trans. ser. no. 2474800) (Order A136325)

2шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

23

129-123

NUT,3/8"-24, G5

2шт.

24

B18208

SNAP RING,#100, Ext

shifter lever to shifter shaft #100, Ext

2шт.

25

A76552

SPRING

- wave, shifting lever

4шт.

26

A76307

OIL SEAL,25.4mm ID x 31.9mm OD x 4.75mm Thk

- oil, shifter shaft

2шт.

27

A146849

LEVER

- shifter (1st and 2nd) (1st used trans. ser. no. 10027104)

1шт.

28

A146850

LEVER

- (3rd and 4th) (1st used tractor ser. no. 10027104)

1шт.

29

A76527

LEVER

- shifter (1st and 2nd) (Order A146849) (Used before trans. ser. no. 10027104)

1шт.

30

A76549

LEVER

- shifter (3rd and 4th) (Order A146850) (Used before trans. ser. no. 10027104)

1шт.
