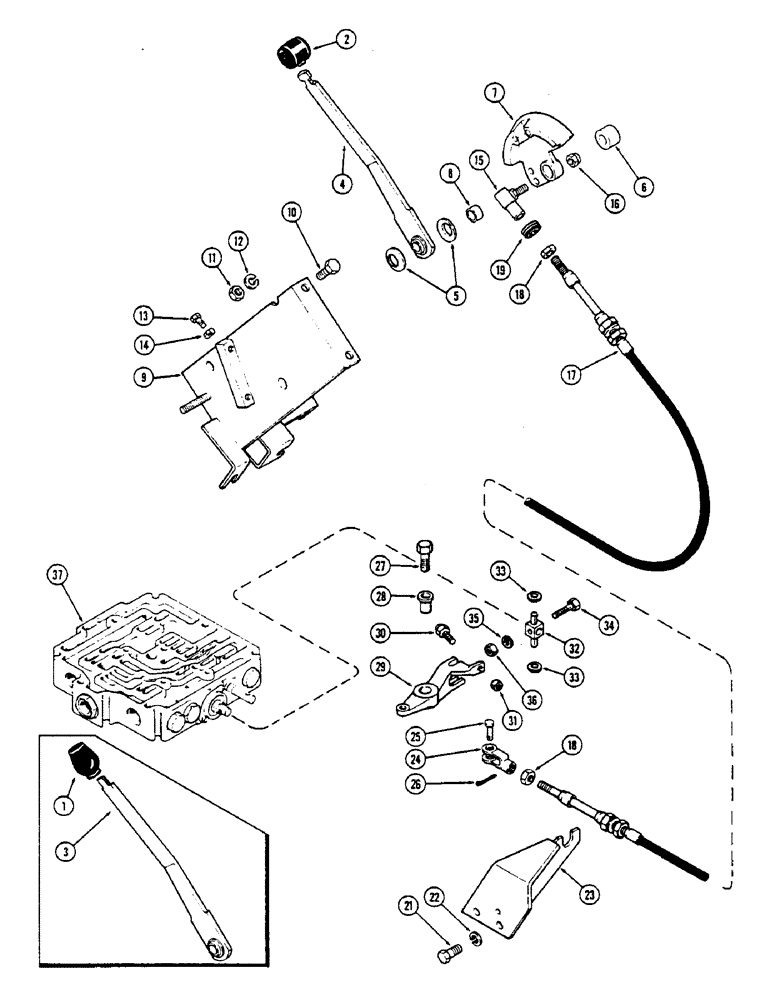

Запчасти Case IH 2670 (196) - POWER SHIFT LINKAGE (06) - POWER TRAIN

1

A65699

KNOB

Control lever (Plastic) (Order A137806)

1шт.

2

A137806

KNOB

Control lever (Rubber)

1шт.

3

A75380

LEVER

Power shift (With threaded top) (Order Ref. 2 and 4)

1шт.

4

A137858

LEVER

Power shift (Replaces A75380)

1шт.

5

A59662

WASHER

Beveled

2шт.

6

A75379

BUSHING

SPACER - quadrant

1шт.

7

A61862

QUADRANT

ASSY, power shift, Incl. Ref. 8

1шт.

8

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Quadrant

1шт.

9

A75366

SPARE PART Cockpit

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

11

25-106

NUT,3/8"-16, G5

(3/8" x 1" N.C. hex)

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

14

25-146

JAM NUT,Jam, 3/8"-16, G5

1шт.

15

A75991

BALL

JOINT - power shift cable

1шт.

16

131-5

LOCK NUT,3/8"-16, GB

(3/8"-24 N.F. ESNA)

1шт.

17

A143872

CABLE

Power shift control (With A161072 grommet, replaces A145341)

1шт.

17

A145341

CABLE

Power shift control (Replaced by A143872 and A161072)

1шт.

18

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

19

A161072

GROMMET

Cable (Used with A143872)

1шт.

19

A75993

GROMMET,1/2" ID x 1 3/4" Groove Dia, Str Cut

Cable (Used with A145341 cable)

1шт.

21

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

22

192-23

LOCK WASHER,1/2"

2шт.

23

A75975

BRACKET

BULKHEAD - power shift cable

1шт.

24

A60663

YOKE

UNIVERSAL JOINT YOKE Power shift cable

1шт.

25

141-4

CLEVIS PIN,3/8" x 1.060"

1шт.

26

132-26

COTTER PIN

3/32" x 3/4"

1шт.

27

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

28

A59772

BUSHING

Lever

1шт.

29

A59771

LEVER

Operating, power shift spool

1шт.

30

A59774

ADJUSTMENT SCREW,5/16" - 18 x 1 3/8", Mild Steel

Adjusting, power shift spool

1шт.

31

25-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

32

A59150

LINK

Operating clutch spool

1шт.

33

A59773

RING

Retaining

2шт.

34

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

35

92-4

LOCK WASHER,1/4"

1шт.

36

25-104

NUT,1/4"-20, G5

1шт.

37

REF

INSTRUCTION

VALVE ASSY, trans. control (See Figure 288)

1шт.
